T-MOTOR U7 V2.0(Free Shipping)

SKU: Q00007

Availability: In stock

Weight:1g

$149.90

Reward points Earn you 150 reward points.

$149.90
Qty:















Specifications:KV420
Configu-ration:12N14P
Shaft Diameter:6mm

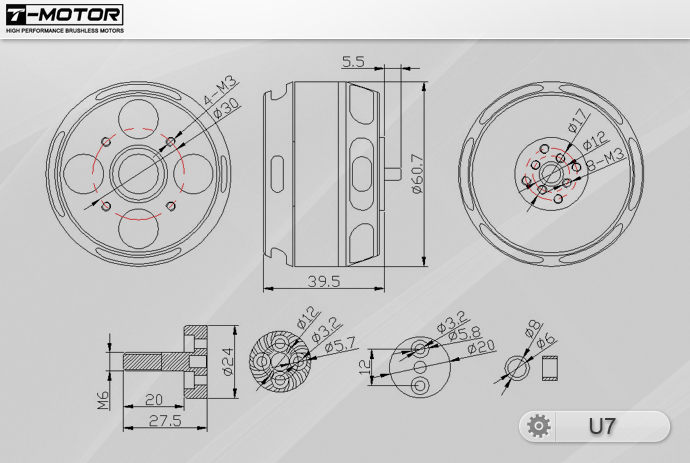

Motor Dimension(Dia.*Len):Φ60.7×39.5mm
Weight(g):255g
ldle current(10)@10v(A):0.9A
No.of Cells(Lipo):3-8S
Max Continuous current(A)180S:40A
Max Continuous Power(W)180S:1180W
Max. efficiency current:(10-21A)>83%
Internal resistance:33mΩ

Test Environment:
Motor:U7 KV420
ESC:T-MOTOR T80A (We recommended the T80A ESC as the default combination with U7 @ 6S.)
Prop:T-MOTOR 17*5.8CF/18*6.1CF
Power:22.2V constant voltage power supply

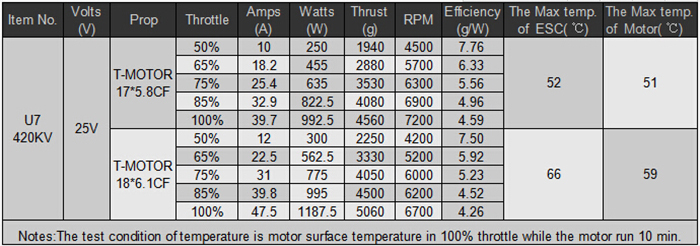

Test Data:

Test Environment:
Motor:U7 KV420
ESC:T-MOTOR T80A (We recommended the T80A ESC as the default combination with U7 @ 6S.)
Prop:T-MOTOR 17*5.8CF/18*6.1CF
Battery:6S 10000mAh 25C

Test Data:

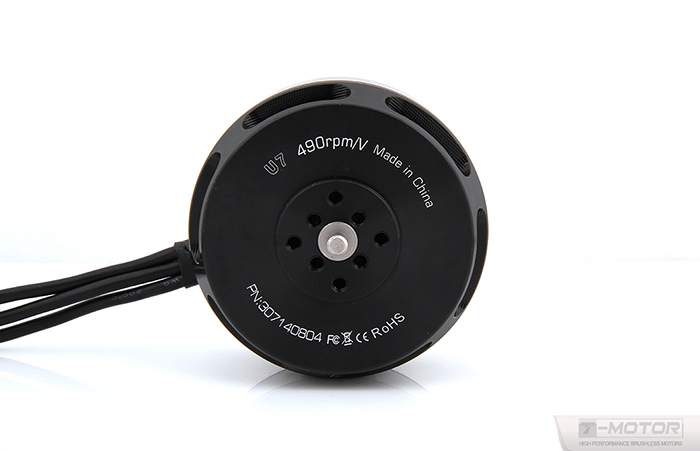

Specifications:
KV:490
Configuration:12N14P
Shaft Diameter:4mm
Motor Dimension(Dia.*Len):Φ60.7×39.5mm
Weight(g):258g
ldle current(10)@10v(A):1.1A
No.of Cells(Lipo):3-8S
Max Continuous current(A)180S:44A
Max Continuous Power(W)180S:1300W
Max. efficiency current:(10-25A)>81%
internal resistance:21m

Test Environment:
Motor: U7 KV490
ESC:T-MOTOR T80A  (We recommended the T80A ESC as the default combination with U7 @ 6S.)
Prop: T-MOTOR 17*5.8CF/18*6.1CF
Power: 22.2V constant voltage power supply

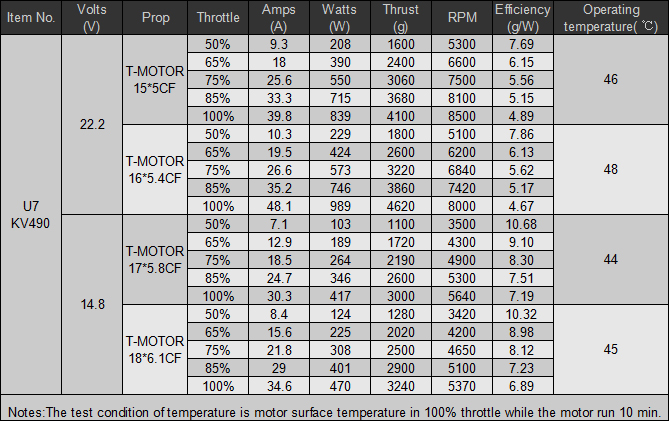

Test data:

Test Environment:
Motor: U7 KV490
ESC:T-MOTOR T80A  (We recommended the T80A ESC as the default combination with U7 @ 6S.)
Prop: T-MOTOR 17*5.8CF/18*6.1CF
Power:Battery 6S 10000mAh 25C

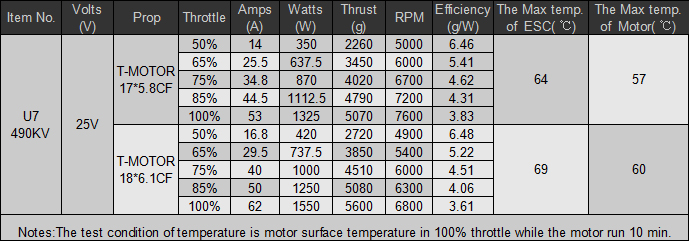

Test data:
