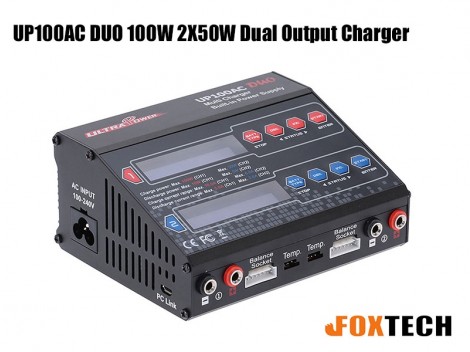

The Ultra Power UP100AC Duo is a compact balance charger for batteries, which can charge 2pcs batteies simultaneously. It features intelligent power control function. In addtion, it has a DC output, 5V/2.1A, you can charge your mobile phone or tablet via a USB cable, very convenient for user.
Note: There are different types of plugs to choose, such as UK, US, EU, AU, etc. If you need other plug types, please contact us by live chat or email us at [email protected].
Features:
•Terminal voltage control in 4.18V to 4.30V
•Delta-Peak sensitivity (NiMH/NiCd)
•Individual cell balancing charge & discharge
•Battery meter function
•One button control factory setting
•Data storage (10 profiles in memory)
•One USB Ports for PC Control & Firmware Upgrade
Specifications:
Input voltage: AC 100-240V, DC 11.0-18.0V
Charge current: Max. 10.0A (CH1), Max. 6.0A (CH2)
Discharge current: Max. 5.0A (CH1), Max. 2.0A (CH2)
Charge power: Max. 100W (CH1), Max. 50W (CH2)
Discharge power: Max. 10W (CH1), Max. 5W (CH2)
Balance current: 300mA/cell
Support battery types: LiPo/LiHV/LiFe/LiIon/ (1-6 S)
NiMH/NiCd (1-15S)
Lead Acid 2V-20V (1-10S)
Battery data memory: 10 Profiles
Dimensions: 143X115x63mm
Weight: 1.0KG
Your Purchase Includes:
1x Ultra Power UP100AC Duo Charger
1xPower Cord
2xT plug to Banana cable
2xBalance Boards
1xManual
