XLink-30 Long Range Wireless Data/Video Transmitting System

SKU: S200417

Availability: In stock

Weight:1g

$4,289.00

Reward points Earn your 4289 reward points.

$4,289.00
Qty:

Note: The version of WMN is not released yet, we now accept preorder. Email us at [email protected] if you want to realize Wireless Mesh Network Transmission.

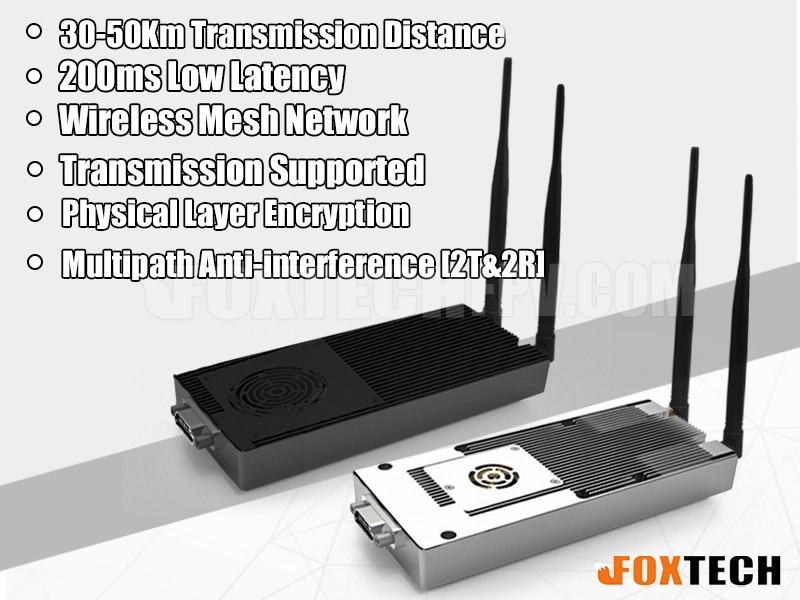

XLink-30 is a point-to-point wireless data/video transmission system designed for industrial UAVs, ground robots and other data communication applications, featuring 30km long transmission distance.



XLink-30 integrates the technology of 4G, 5G, WIFI, and adopts OFDM technique and multipath anti-interference technology, which has the advantages of long distance transmission, low latency, strong diffraction performance, and big data bandwidth communications.



The transmission distance reaches 30km when used on UAVS, which requires an antenna tracking system and a holder, while used on UGVs that are matched with an omni-directional FRP antenna, it can still reach 1km- 2km despite of the intense ground signal interference. And with the 200ms low latency, XLink-30 offers you smooth video transmission.



A great highlight of XLink-30 is that it supports multi-node interlinked to form a communication mesh, in which one node is too far from the ground station to receive signals, it is able to transmit data to its nearest node, by which data can be sent back to the ground station.

Warning: Do not power on before installing ANT1/ANT2, otherwise it could cause damage to XLink-30 and burn it out.



Key technology:

-OFDM Technology

- Wireless Mesh Network Transmission

-Physical Layer Encryption

-Multipath Anti-interference Technology



Specifications:

-Frequency Band: 1410MHz ~ 1470MHz

-Bandwidth: 4MHz; 8MHz; 10MHz; 14MHz; 20MHz

-Transmitting Antenna: 2*Tx & 2*Rx

-Modulation Technique: OFDM

-Video Input: 1*RJ45(Ethernet)

-Video Output: 1*RJ45(Ethernet)

-Data Input: 2*TTL/1*RS232(UART)

-Data Output: 2*TTL/1*RS232(UART)

-Voltage: DC 9V ~ 36V; Typical Value 12V

-Transmitting Power: ANT1, 0.5W

                                  ANT2, 0.5W

-Power Consumption: Air Unit:≤12W

                                   Ground Unit:≤6W

-Bit Rate: Air Unit to Ground Unit 1.2Mbps ~ 12Mbps

               Ground Unit to Air Unit 115Kbps ~ 1Mbps

-Transmission Delay: <200ms

-Encryption Method: AES 128bit, Physical Layer Encryption

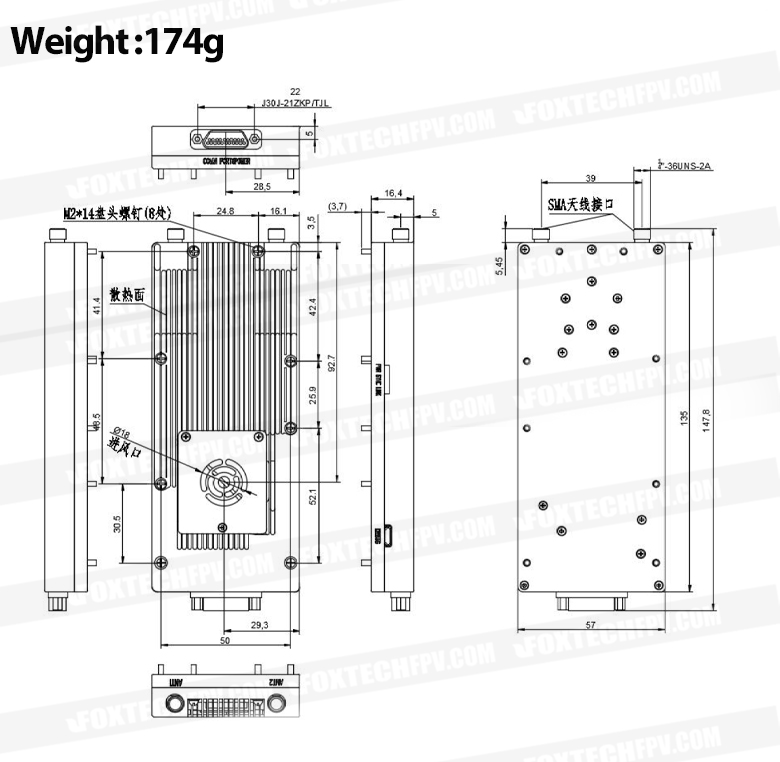

-Size: 135mm*57mm*16.4mm

-Weight: 174g

-Transmission Distance: 30km

-Working Temperature: -40℃ ~ + 55℃

Note: Specifications that are not particularly noted apply to both air unit and ground unit.



Your Purchase Includes:

1x XLink-30 Long Range Datalink/Videolink Air Unit

1x XLink-30 Long Range Datalink/Videolink Ground Unit

2x Transmitter Antenna for Air Unit

1x High-gain Panel Antenna

2x J30J Wires

2x Antenna Feeder

XLink-30+AAT Combo:

1x XLink-30 Long Range Datalink/Videolink Air Unit

1x XLink-30 Long Range Datalink/Videolink Ground Unit

2x Transmitter Antenna for Air Unit

1x High-gain Panel Antenna

2x J30J Wires

2x Antenna Feeder

1x Archer AAT Auto Antenna Tracker(antenna not included)

1x Power Cable

2x Data Cable
