5008/340KV Brushless Motor/black(TL96020)

SKU: 001149

Availability: In stock ( -1 )


Regular Price: $49.99

Special Price $37.49

save  25.01%

Reward points Earn you 38 reward points.


Very Nice Gaint Tarot 5008 high quality motor

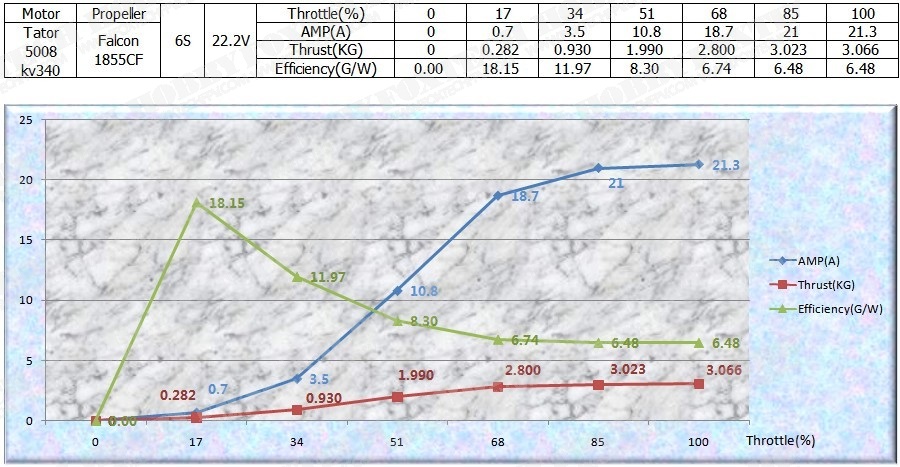

Tested efficiency over 11g/W(1kg pulling, 6S lipo, 3.8A)

Max pulling over 3KG (1855 propeller)

5008/340KV efficient multi-rotor brushless motor is designed for multi-rotor design, suitable for T960 folding six rotor rack

TL960A, T18 Folding eight rotor rack TL18A00 other 17-18 inch rotor racks. Full CNC machined, appearance
Seamless smooth flat sheet, balance is excellent. New design of efficient turbofan cover, provides powerful airflow, the rotor mining
Refined with a high magnetic NdFeB stator reinforced with high-strength epoxy to protect pressurized high temperature, high magnetic flux outside
Rotor motor through a special balance correction, improve the common external rotor motor vibration problems caused by poor balance, motor shaft using
High alloy steels. Upper and lower lid with large size motor speed precision bearings with low friction torque, power loss, resistance
Shock, instant high speed radial support and other advantages. 5008 / 340KV Brushless Motor has passed strict new generation of dynamic,
Static magnetic properties, magnetic temperature demagnetization loss, exercise vibration, noise, load performance engineering technology demonstration.
Continuation inherited TAROT brushless motor: long life, high efficiency, low power consumption, low noise, superior control and stability characteristics

Product parameters:
Applicable Rotor Specifications :17-18 inch
Motor Outside diameter: 58.50mm
Stator diameter: 50.0mm
Stator Thickness: 8.0mm
Stator number: 12N
Motor Poles: 14P
Per volt speed: 340 RPM/Volt
25.2V empty annexed Current: 1.1 Amps
Motor Weight: 168 Grams

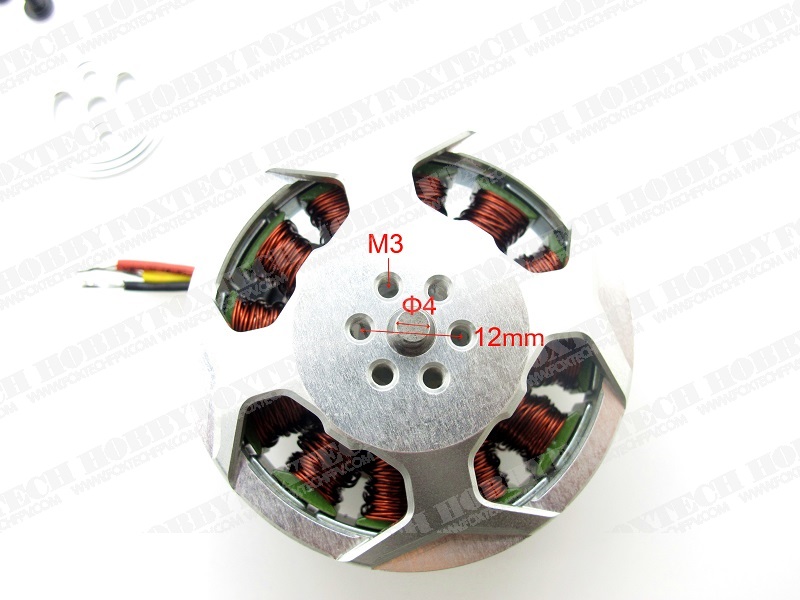

Gear shaft mounting diameter: ¢ 4.0 mm
Motor Length: 35.0 mm
Motor Shaft Length: 42.0 mm

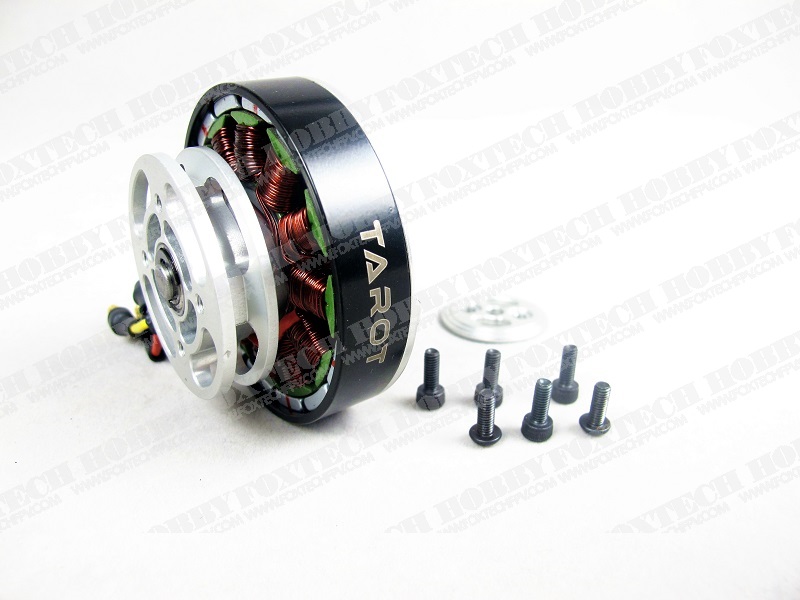

Cup head screws M3x8 x4
Button head screws M3x8 x2
Metal rotor mounting piece x1
5008KV340 x1
