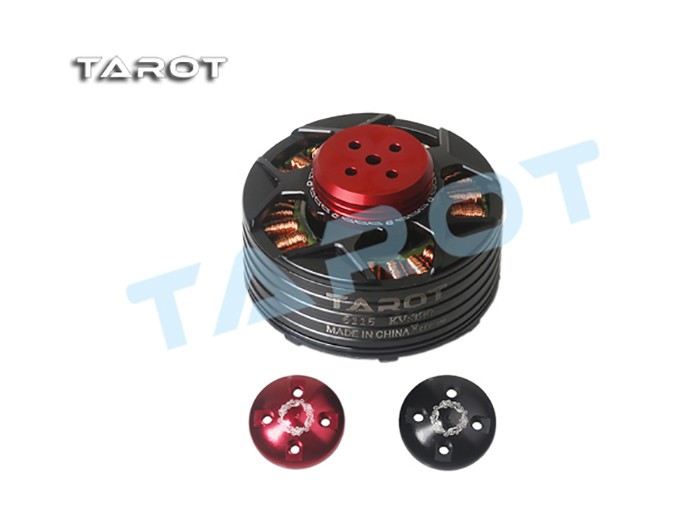

6115/320KV Brushless Motor

Product Descriptions:

- 6115/320KV brushless self-locking plus thread motor is designed for TAROT X4 and other multicopters

- Bi-colored fairings to differentiate front and back rotors

- CNC processed, smooth surface, seamless and well-balanced

- Brand-new turbofan cover, which provides good heat dissipation effect

- Rotor and stator are made respectively out of high magnetic NdFeB ( neodymium iron boron ) and high-strength epoxy resin

- It develops the superiorities of Tarot brushless motor: long lifespan, high efficiency, low power consumption, low noise and perfect control stability

Parameters:

Motor diameter: 68.8mm

Stator diameter: 61.5mm

Stator thickness: 15.0mm

Configuration: 24N22P

KV: 320

ldle current: 2.0Amps

Motor internal resistance: 126mΩ

Motor weight: 312Grams

Motor length: 45.5mm

Motor shaft length: 36.0mm

Motor mounting hole spacing: 32mm

Specifications:

6115 Self-locking multicopter motor x1(68.7×58.5MM) 315g

Self-locking cover x1(31.5×8MM) 8g

Black fairing x1(25×12.5MM) 6g

Red fairing x1(25×12.5MM) 6g
