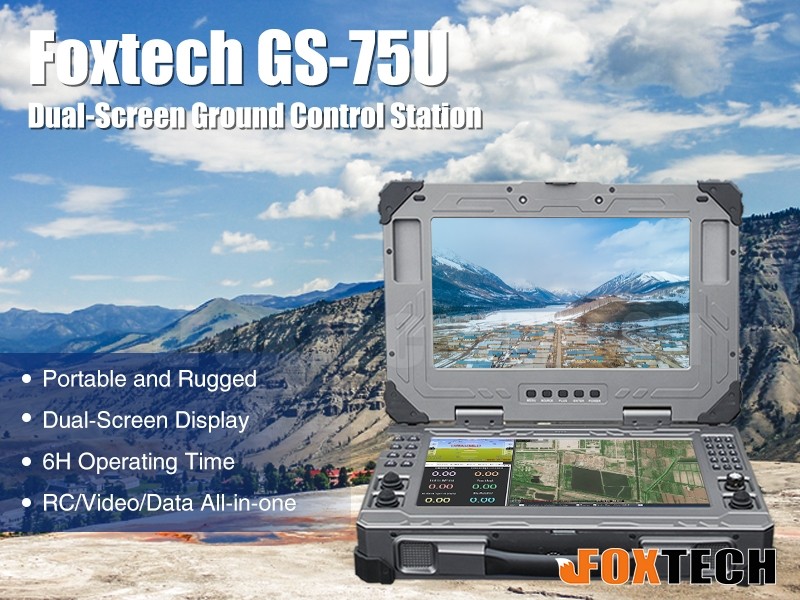

GS-75U is a compact and rugged ground control station designed for UAV, which has an intuitive user interface and can realize drone control, long range video and data transmission.
-The portable GCS has a built-in computer that integrates with the GCS software and can be used for all stages–from planning to controlling the mission. The built-in computer features Intel I7-7500U processor, DDR4 16G and 256G SSD, supports Windows 7/Linux system.
-The two 13.3＂FHD TFT LCD featuring 1920*1080 resolution and 1000nits brightness can display both real-time videos and moving maps. The screen brightness is adjustable.
-Compatible with different video/data transmission module, such as VD-Pro, VDC, can realize 15~150km long range video/data transmission. (Optional)
-GS-75U supports multiple interface and button, including LAN *1, HDMI*1, USB*4, WIFI/4G*2, SIM*1, custom button*8; Internal reserved interfaces for secondary development: RS232*1, USB*1, HDMI*1, LAN*1, SMA*5.
-The integrated power distribution system provides 5 VDC and 12 VDC power outputs for the equipment in the electronics compartment as well as external devices that are used in conjunction with the GCS.
-The GCS is housed in a military-grade rugged aluminium case which makes it ideal for use in harsh environments. With a built-in 13400mAh li-ion battery, the operation time is up to 6hours with full capacity.
Note: Secondary development of the joysticks/buttons according to the protocol is supported, please see the protocol below for details. SBUS is not available for the joysticks.
Your Purchase Includes:
1x Foxtech GS-75U Dual-Screen Ground Control Station(not including video/data link)
1x Stylus Pen
1x Carrying Case
