Cetus-240 VTOL featuring highly advanced aerodynamic design is a long flight time VTOL for survey and mapping.

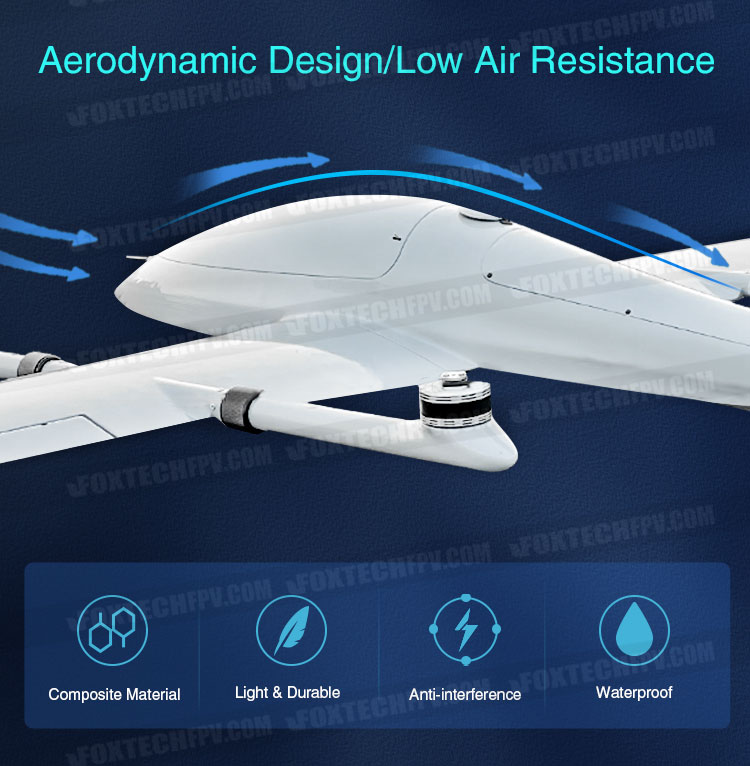

Adopting carbon fiber and PMI foam composite material, Cetus-240 VTOL features light weight, high strength and strong anti-interference capability. The aerodynamic design and smooth surface ensure a low air resistance.

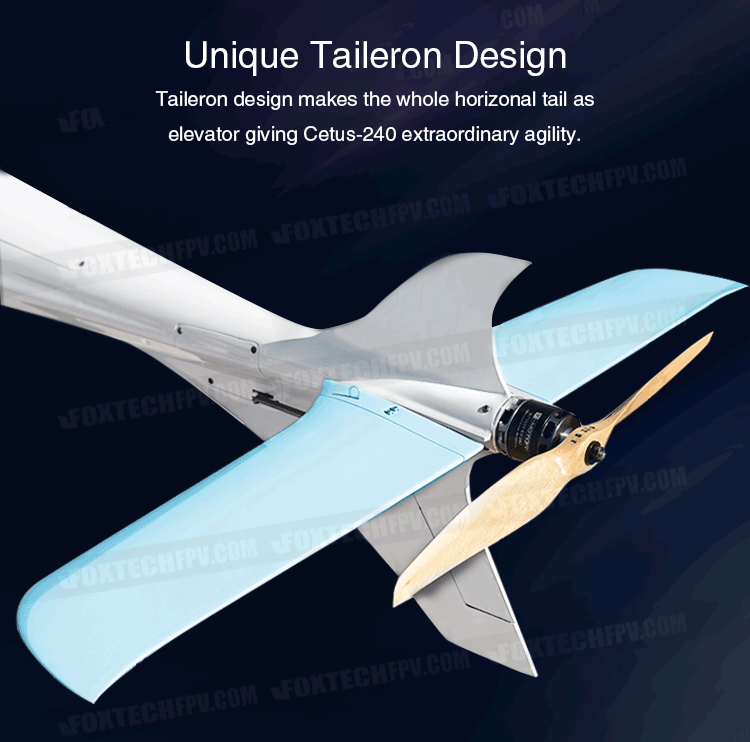

The highlight of Cetus-240 VTOL is the unique Taileron Design, which makes the whole horizonal tail as elevator giving this plane extraordinary agility.
Cetus-240 VTOL is a perfect platform for mapping and survey. It can do mapping jobs like generating high-precision orthophoto maps and digital elevation models by loading with 3DM V4 oblique mapping camera. Cetus-240 VTOL is operated with MX16 10km (test in open environment without any obstacles or electromagnetic interference) range GCS, integrated with video/data/rc all in one, which can realize drone control, data and video transmission, route planning, real-time flight status feedback and other functions.
Your Purchase Includes:
Mapping Combo (Pixhawk / X7 Pro):
1x Cetus-240 VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 15 inch Propeller for Tail Motor
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 18 inch Propellers for VTOL Mode
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
(or X7 Pro Flight Controller with NEO 3 Pro GNSS)
1x MX16 Portable Ground Station
1x Foxtech 3DM V4 Oblique Camera
1x Carrying Case
1x Assembling, tuned and Flying Test Service
RTF Combo (Pixhawk / X7 Pro):
1x Cetus-240 VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 15 inch Propeller for Tail Motor
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 18 inch Propellers for VTOL Mode
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
(or X7 Pro Flight Controller with NEO 3 Pro GNSS)
1x MX16 Portable Ground Station
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Option:
2x Diamond 6S 16000mAh HV
Note:If you have any inquiries regarding endurance and payload capacity, please don't hesitate to reach out to our customer service.
