MX16 Series All-in-one Portable Ground Control Station

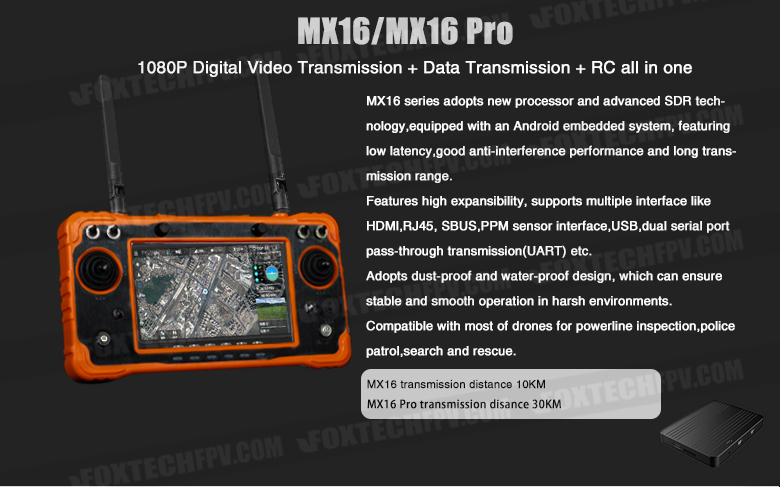

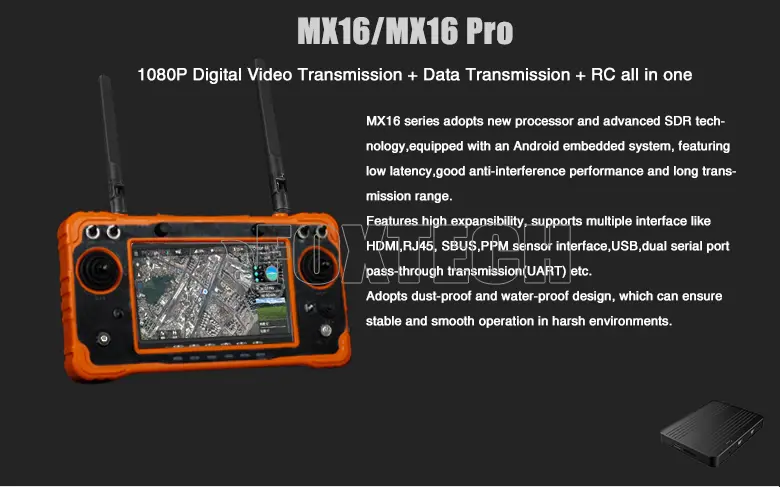

MX16 is a portable and cost-effective ground control station with video link, data link, rc and android system all in one, featuring low latency, good anti-interference performance and long transmission range. MX16 series includes two versions: MX16 and MX16 Pro. The max transmission range of MX16 is 10km, MX16 Pro-30km (test in open environment without any obstacles or electromagnetic interference).
-MX16 series GCS is equipped with a 7'' FHD high-brightness touch screen with a resolution of 1920*1200, Max. brightness can reach 1800nit,operators can use it in full sunlight.
-Equipped with an android system, MX16 series supports mainstream ground station software like QGC. So it can achieve functions like route planning, real-time flight status feedback etc. It also supports video suspension and wireless RTSP video streaming sharing.
-MX16 series features high expandability, supports multiple interface like HDMI, RJ45(with better performance compared with HDMI), SBUS, PPM，sensor interface, UART, USB etc.
-MX16 includes a MIPI camera, the resolution of which is 1080P.

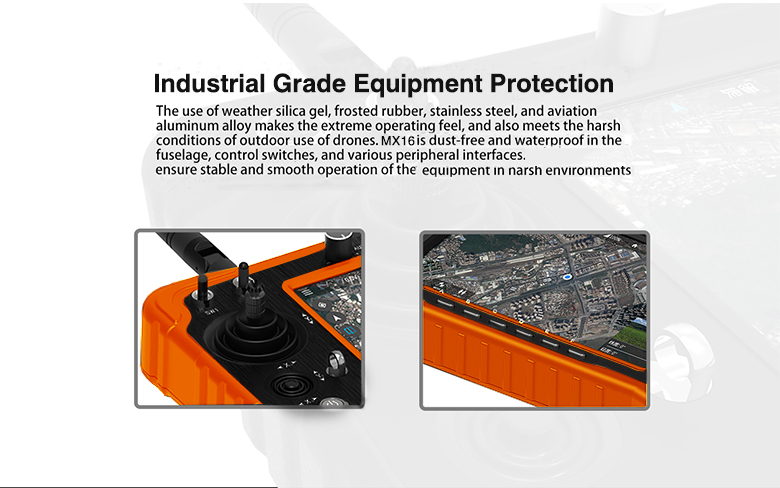

-The GCS body, control switches and all peripheral interfaces adopt dust-proof and water-proof design, which can ensure stable and smooth operation in harsh environments.
-With an built-in 20000mAh li-ion battery, the operation time is up to 8hours with full capacity, MX16 supports 18w fast charge.
-The MX16 series GCS is compatible with most of drones, such as Great Shark 330 VTOL, BABY SHARK 260 VTOL, RHEA 160, GAIA 160S Hexacopter, which can be used for powerline inspection, police patrol, search and rescue etc.


Specification:
Weight: 1034g(controller)
Channel: 16
Working voltage: 4.2V
Frequency: 2.400GHz-2.483GHz
Battery Capacity: 20000mAh
Endurance: 8hours
Communication technology: FHSS
Transmission Distance: 10km; 30km (Video/data)

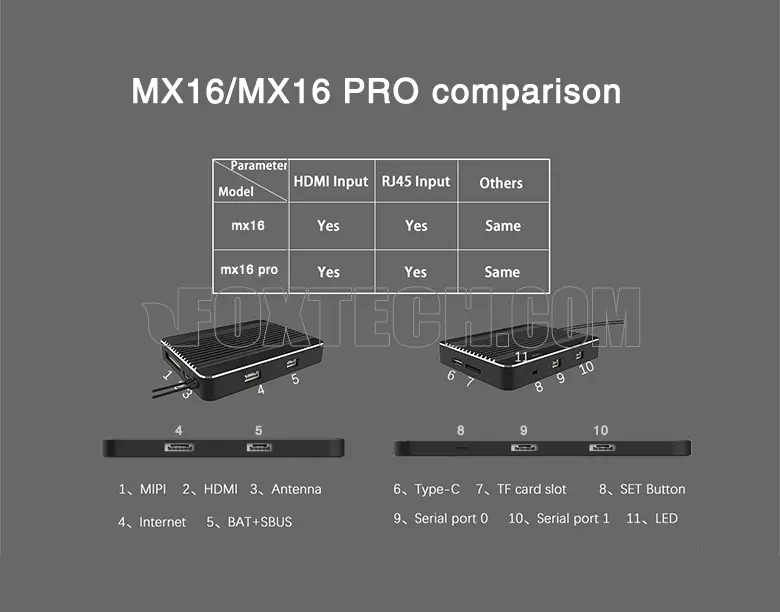

Receiver:
Working Voltage:7.2-72V
Size:76*59*11mm
Weight:90g
MIPI Camera:
Resolution: 1080P
Working Current: 14mA;140mA(with the light on)
Working Voltage:14-72V
Size:102.1*42.6*36.5mm
Weight:55g

Your Purchase Includes:
1x MX16/MX16 Pro Ground Control Station
1x MX16/MX16 Pro Air Unit
1x MIPI Camera
2x Antenna for Ground Control Station
1x Charger for Ground Control Station
1x HDMI A-C Adapter
1x Neck Strap
1x Cable Package

Optional:
Type-C to HDMI Cable
