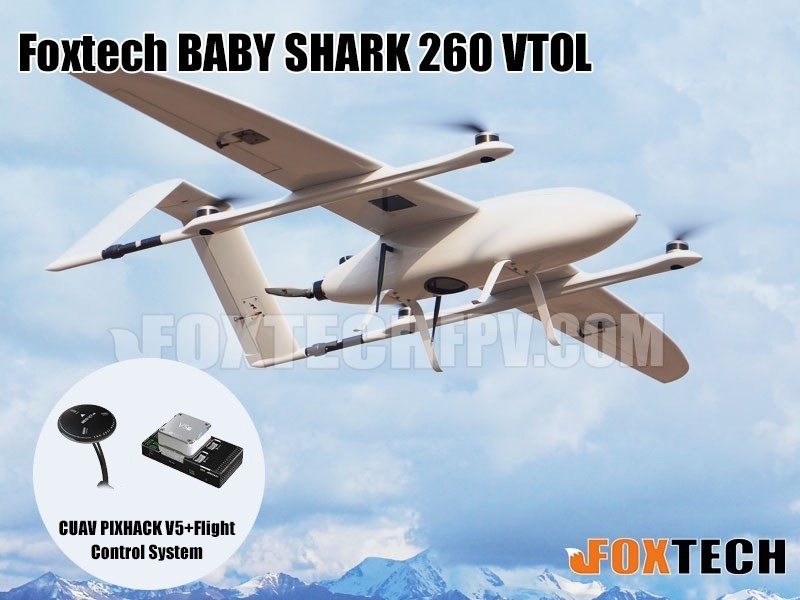

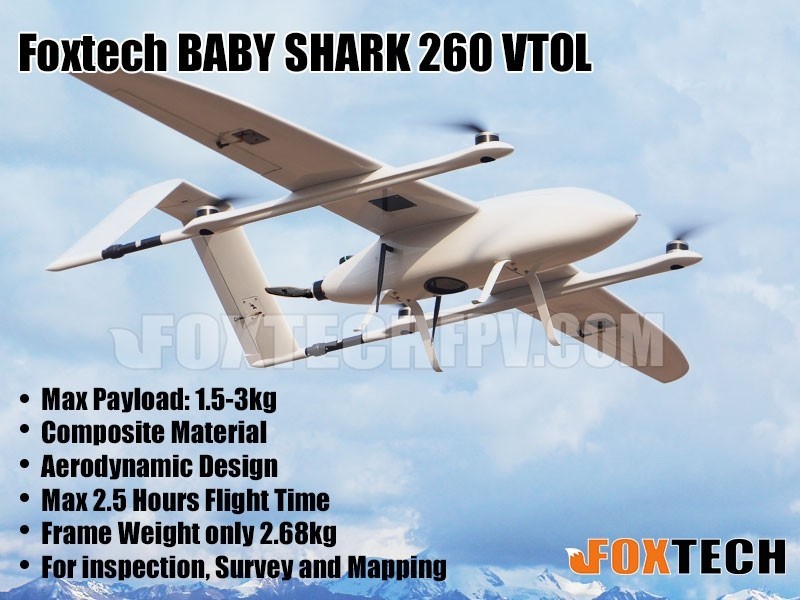

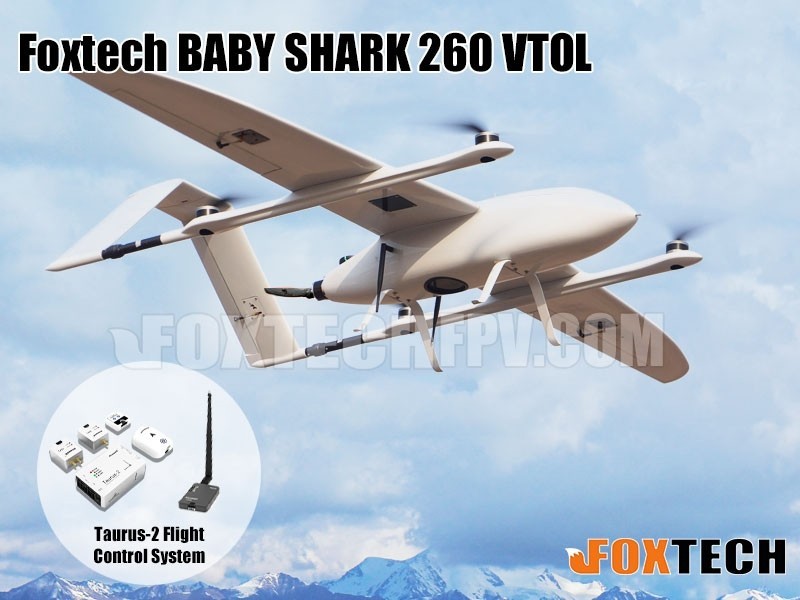

FOXTECH BABY SHARK 260 VTOL

BABY SHARK features a highly advanced aerodynamic design. It is made of composite materials, which features high strength and light weight. The fuselage is big enough to hold a flight controller, batteries or other devices.

It can take off and land vertically with only small areas needed. The frame of BABY SHARK is only 2.7kg, and max take-off weight is 13kg, the stall speed of the BABY SHARK is 16m/s, the highest speed is about 110km/h.

We suggest using two 6S 5000mah lipo batteries for VTOL mode, and two Diamond 6S 22000mAh Semi-solid State Lipo batteries for fixedwing mode.

Besides the batteries, motors, ESCs, propellers and other necessary configured equipments, it still has 2.4kg payload capacity left for zoom or mapping cameras.

BABY SHARK can perform long range inspection, survey and mapping etc.

Note: BABY SHARK Matt Grey Version is out of stock. With / without CG measuring ring fuselage will be shipped randomly.

Note: For our valued customers from Jordan interested in purchasing our drones, please kindly contact our distributor directly at [email protected]. We appreciate your understanding and thank you immensely for considering our products.

Specification:

Version: BABY SHARK 260 VTOL

Color: White; Matt Grey

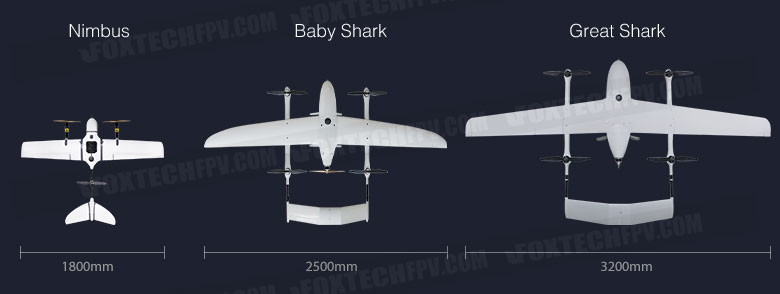

Wingspan: 2500mm

Length: 1440mm

Material: Composites

Frame Weight: 2.7kg

Basic Empty Weight: 5.6kg (no battery)

Max. Take-off Weight: 0~1500m/13kg; 1500m~3000m/11kg

Endurance:

2.5h (2xDiamond 6S 22000mAh Semi-solid State Lipo Battery +2x6S 5000mAh Lipo Battery, no payload)

Suggested Max Payload: 2.1kg(excluding battery); 7.4kg (including battery)

Max Cruising Speed: 110km/h

Suggested Cruising Speed: 21-22m/s

Stall Speed: 16m/s

Max Bank Rate: 30°

Suggested Take-off Altitude: 0~3000m

Take-off/Landing: VTOL

Fixedwing/VTOL Working Voltage: 24V/48V

Your Purchase Includes:

Pixhawk Cube Orange RTF (DA16S+):

1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x ASSAN UBEC-8A
1x Hobbywing UBEC
1x Power Monitor Module
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service

TAURUS-2 RTF (DL900 Datalink):

1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x UBEC
1x Taurus-2 Flight Control System for VTOL

1x DL900 Datalink
1x Carrying Case
1x Assembling, tuned and Flying Test Service

CUAV V5+ RTF (DA16S+):

1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x UBEC
1x Power Monitor Module
1x CUAV V5+ Flight Controller with CUAV NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service

CUAV V5+ RTF (T12):

1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x UBEC
1x Power Monitor Module
1x CUAV V5+ Flight Controller with CUAV NEO 3 Pro GNSS
1x T12 12-Channel Radio Controller

1x Carrying Case
1x Assembling, tuned and Flying Test Service

CUAV X7 Pro RTF (DA16S+):

1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x ASSAN UBEC-8A
1x Hobbywing UBEC
1x Power Monitor Module
1x CUAV X7 Pro Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service

Option:

2x Foxtech Diamond 6S 22000mAh Semi-solid State Lipo Battery

2x 6S 5000mAh Lipo Battery

Baby Shark 260 VTOL Spare Parts(Matt Grey)

DA16S+ Radio Controller for AheadX Flight Controller (for Taurus-2 Combo)

ASHIL II Flight Simulation System (for Taurus-2 Combo)
