T12 12-Channel Radio Controller

SKU: 905111

Availability: In stock ( 10 )

Weight:2.5KG

$349.90

Reward points Earn you 350 reward points.

Qty:

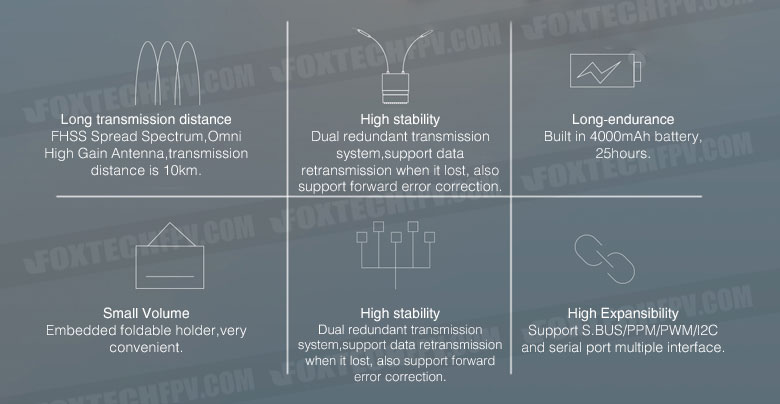

T12 is an integrated remote controller supports  data transmission, video transmission and remote control, suitable for Fixedwing, multicopter,intelligent robot etc.

The working frequency of T12 is 2.4G, transmission power is 100mw. T12 adopts FHSS tecnology and omni high gain antenna,  the video and data transmission distance is about 10km. The remote controller has an built-in 4000mAh battery, the working time is about 25hours.

The remote controller is waterproof and dustproof, and features high expansibility, supports multiple interface like S.BUS,PPM,PWM,I2C and serial port. The default signal interface of T12 receiver is S.BUS, it can be switched to PPM in APP.

T12 is equipped with a mini camera, the resolution of which is 720P, but the real-time video transmission resulution is 480P.

The remote controller can be connected by bluetooth and usb cable. So the data can be sent to your cellphone through Bluetooth, and you can see all parameters or setting on you cellphone, like mode, Nor/Rev, failsafe, Sbus, ppm output and baud rate etc. Also could link the remote controller to your laptop through USB cable.



Specification:

Weight: 490g(controller), 26g(receiver),15.6g(camera)
Channel: 12
Working voltage: 3.7V
Working Current: 170mA
Battery Capacity: 4000mAh
Endurance: 25hours
Frequency: 2.400GHz-2.4833GHz
Communication technology: FHSS
Transmission Distance: 10km(Video/data)
Signal Output: SBUS, PWM, I2C

Mini Camera:

Resolution: [email protected]
Size: 30.2x29.8x26.8mm
Weight: 15.6g
Voltage: 5V
Current: 180mA
Working Temperature: -10°C to +40°C



Your Purchase Includes:

1x T12 12-Channel Remote Controller
1x Receiver
1x Mini Camera
2x Data transmission cable
1x USB Cable
2x Antiskid Joystick
1x Spanner

Manual Download

Device Assistant (Android)

Ground Station Software
