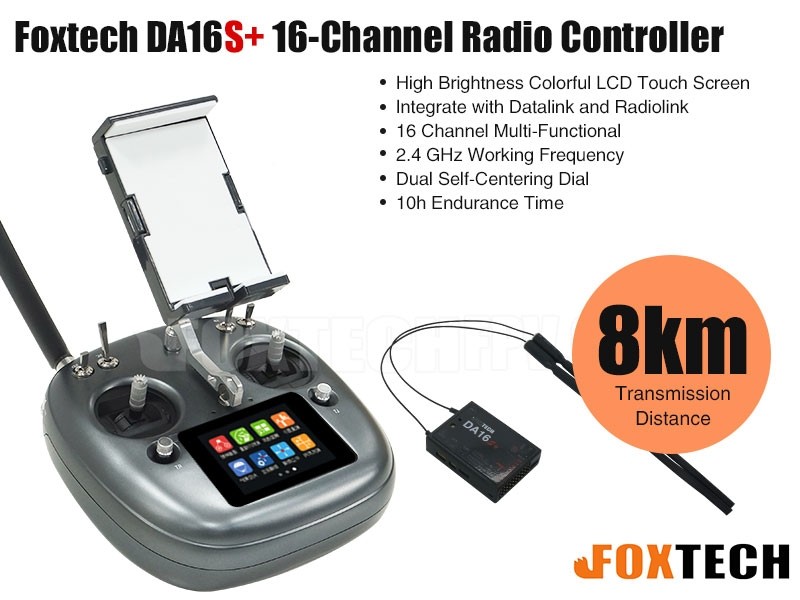

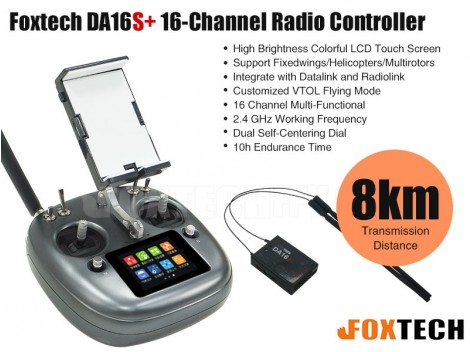

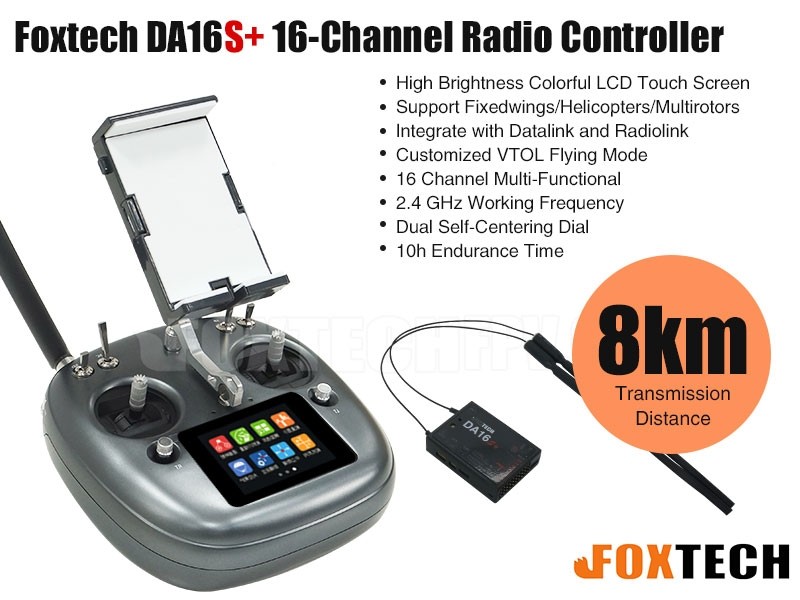

Foxtech DA16S+ 16-Channel Radio Controller

SKU: 904261

Availability: In stock ( 35 )



Reward points Earn your 439 reward points.


DA16S+ radio controller has both datalink and radiolink built inside, and the standard range of datalink and radiolink is 8-10km. If equip the DA16S+ with RB20 signal relay, the RC range and data transmittion distance can reach 15km-30km.

The radio also has the Bluetooth function, which can send the data to your cellphone. So you can see all parameters or setting on you cellphone, also could link the radio to your laptop through USB cable, it is very convenient. It also has a high brightness colorful LCD touch screen. The DA16S+ Radio controller has a built-in lipo-battery,  it can be connected through a USB cable for charging, and the endurance time is about 10 hours.



Transmission Distance: 8km

Working Frequency: 2.4 GHz

Transmitting radio power: 27dbm

Channel: 16 Channel

Bluetooth Pairing Password: 1234

Admin Password: 8888


Size: 194.5x172.5x114mm
Weight: 610g
Battery: 4000 mAh 1S Lipo
Charging: Micro USB 5V 2A


Signal Output: 16-channel S.Bus, 9-channel PPM/PWM
FC Connecting Port: UART
Size: 51x38x14mm
Weight: 22g
Antenna Gain: 5dBi
Working Voltage: 5V-8.4V
Working Temperature: -10℃-55℃



Real-Time Data Return
8km Transmission Distance
2.4 GHz Working Frequency
16 Channel Multi-Functional
Integrate with Datalink and Radiolink
High Brightness Colorful LCD Touch Screen
English/Chinese Menu
Parameter Adjustment on PC
USB direct connection charging
Dual Self-Centering Dial
10h Endurance Time

Your Purchase Includes:

1x Foxtech DA16S+ 16-Channel Radio Controller


RB20 Signal Relay

Foxtech 840~915MHz 7dBi Omni-directional Magnetic Base Antenna

Manual Download
