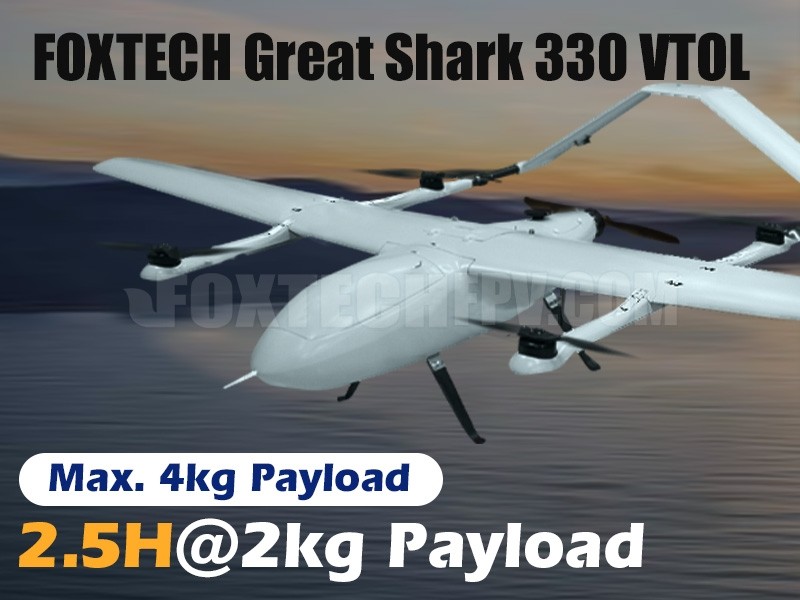

FOXTECH Great Shark 330 VTOL

SKU: S90813

Availability: In stock

Weight:1g

$8,969.00

Reward points Earn your 8969 reward points.

$8,969.00
Qty:

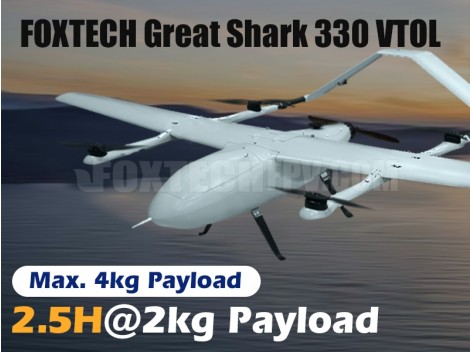

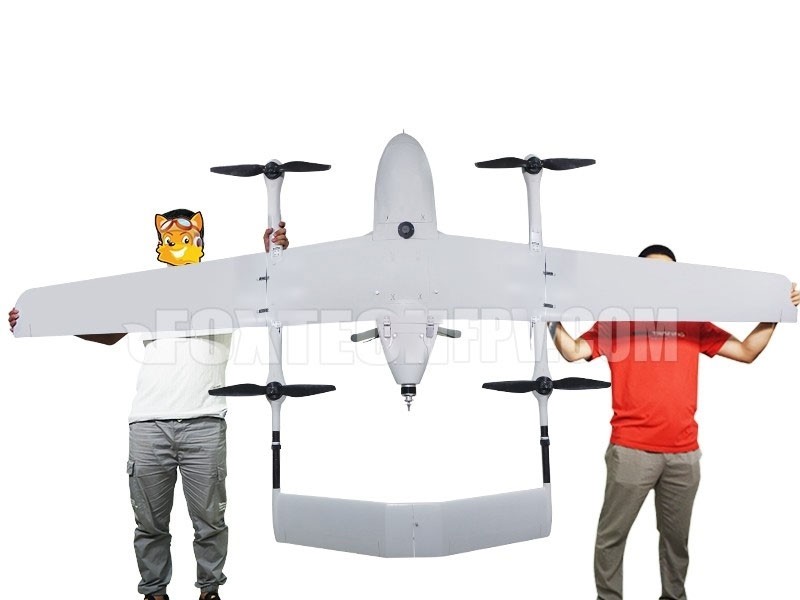

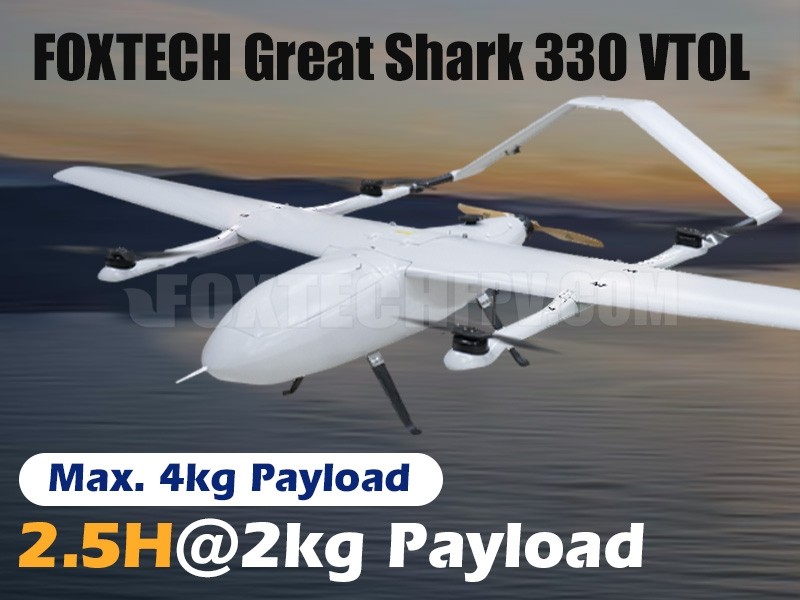

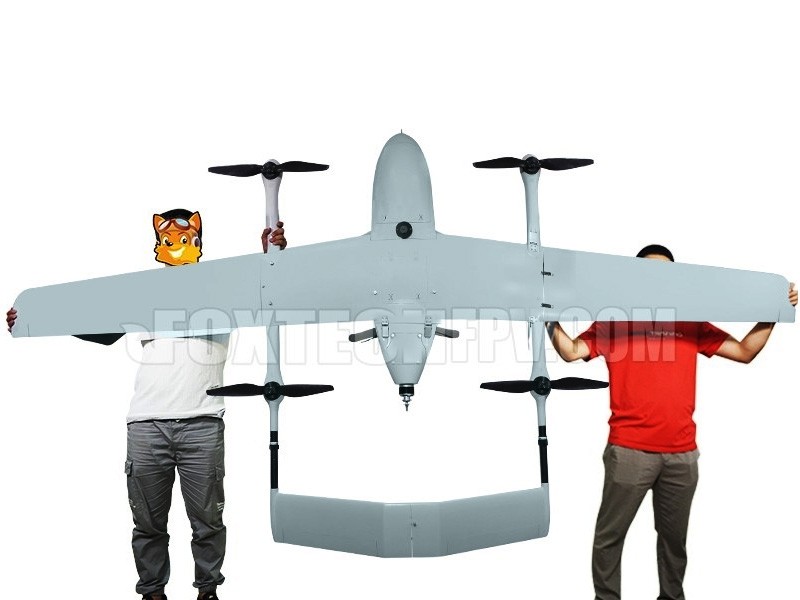

GREAT SHARK 330 VTOL has a 3.2 meter wingspan, and features a highly advanced aerodynamic design. The fuselage of Great Shark 330 is made of Kevlar material which is very light and durable.

Although the Great Shark is so big, it adopts quick-detach design which makes the plane easy to assemble and disassemble, and easy to transport. The fuselage also has big inner space for flight controller, batteries or other equipments, like oblique camera etc.

The Great Shark 330 VTOL can fly longer and load more payload.The frame of Great SHARK is 6kg, and max take-off weight is about 23kg, the great shark can fly about 2.5 hours with 2kg payload, and fly 3 hours with no payload. The suggested max payload is 4kg. The cruising speed of the Great SHARK can reach 26m/s. The Great Shark 330 VTOL can take off and land vertically in a very small area.

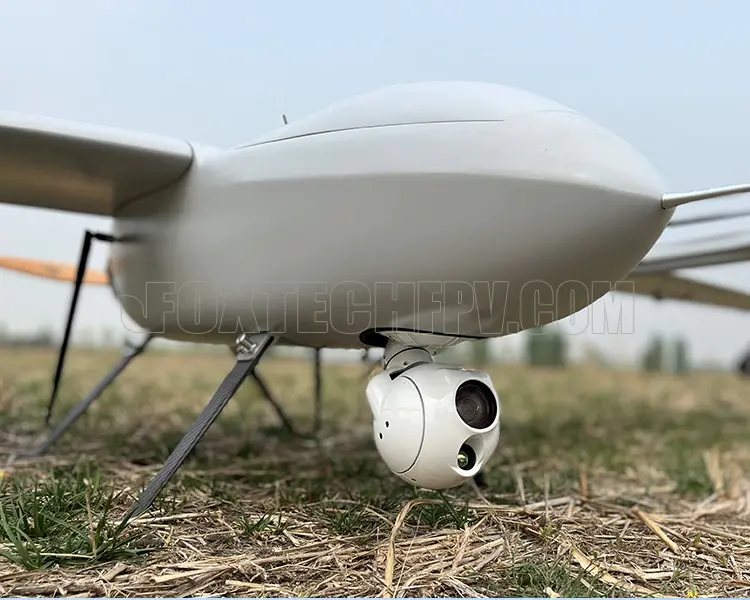

In this Great Shark VTOL plane we suggest to use 4x Diamond 6S 22000mAh semi-solid state lipo battery. The Great Shark 330 VTOL equipped with FH230 TR 30X Optical Zoom Camera and gimbal can be used to do long range inspection, equipped with3DM V3 Oblique Camera or Map-A7R can be used to do 3D modeling, oblique mapping and ground survey etc.



LEO-2 Combo: GREAT SHARK using the newly-upgraded LEO-2 flight controller is more smart and efficient in a survey&mapping, or powerline inspection mission. For instance, it is able to make the decision of taking the optimal flight path when making a turn, and levels itself smoothly before entering the surveying area to generate a better survey map. The triple-redundancy compass provides security assurance and realizes ORIENTATION,  which is perfect for missions that may encounter strong electromagnetic interference like a powerline inspection. LEO-2 also features built-in 20km datalink, centimeter-level PPK and GCS multi-platform control between two aircrafts that use AheadX Flight Controller (LEO, LEO-2, or TAURUS-2), making GREAT SHARK a superb aerial tool.

Note:  The Great Shark will be shipped 7 days later after the order is made, please contact customer service staff for specific delivery date.



Specification:

Version: GREAT SHARK 330 VTOL

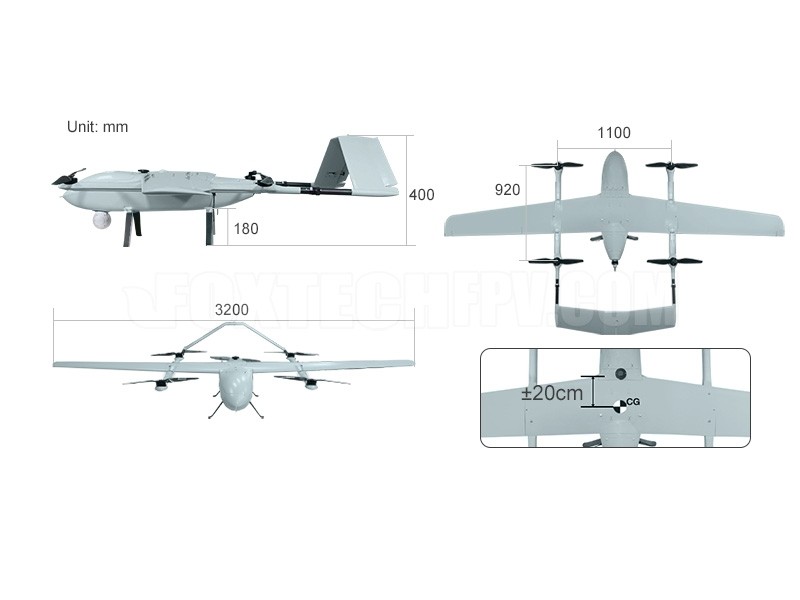

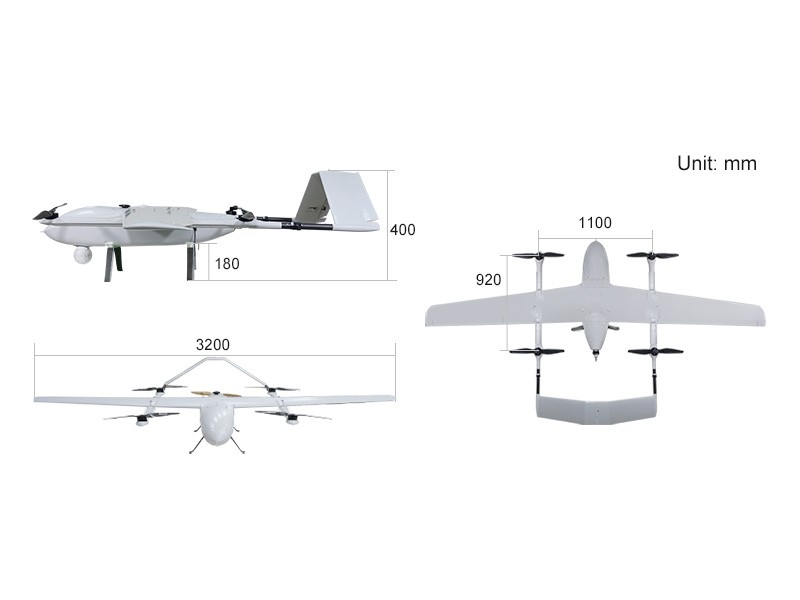

Wingspan: 3200mm

Length: 1750mm

Clearance to Ground: 16cm

Material: Kevlar, Fiberglass Fabric, Carbon Fiber

RTF Weight: 9kg (no battery, no payload)

Max. Take-off Weight: 0~2000m/23kg; 2000m~3000m/20kg

Endurance: 3hours (4x Diamond 6S 22000mAh semi-solid state lipo battery, no payload)

Suggested Max Payload: 4kg(excluding battery)

Max Cruising Speed: 32m/s

Suggested Cruising Speed: 22m/s

Stall Speed: 18m/s

Max Fixed-wing Climb Rate: 8m/s

Max Fixed-wing Dive Rate: 5m/s

Max Bank Rate: 35°

Max Multirotor Speed(Up): 2.5m/s

Max Multirotor Speed(Down): 3m/s

Suggested Take-off Altitude: 0~3000m

Take-off/Landing: VTOL

Working Voltage: 48V

Working Temperature: -10℃-40℃

Carrying Case: 1320mm*675mm*520mm



Your Purchase Includes:

Pixhawk Cube Orange RTF Combo:
1x Foxtech Great Shark VTOL Frame
1x High Efficiency Tail Motor
1x Tail ESC
1x 20 inch Propeller for Tail Motor

1x 20 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 22 inch Propellers for VTOL Mode

1x (pair) 22 inch Spare Propellers for VTOL Mode(for free)

1x Px4 Air Speedometer
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set with Here 2 GNSS
1x DA16S+ Radio Controller
1x Assembling, tuned and Flying Test Service



LEO RTF Combo:
1x Foxtech Great Shark VTOL Frame
1x High Efficiency Tail Motor
1x Tail ESC
1x 20 inch Propeller for Tail Motor

1x 20 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 22 inch Propellers for VTOL Mode

1x (pair) 22 inch Spare Propellers for VTOL Mode(for free)
2x UBEC
1x LEO Flight Control System
1x Assembling, tuned and Flying Test Service





LEO-2 RTF Combo:
1x Foxtech Great Shark VTOL Frame
1x High Efficiency Tail Motor
1x Tail ESC
1x 20 inch Propeller for Tail Motor

1x 20 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 22 inch Propellers for VTOL Mode

1x (pair) 22 inch Spare Propellers for VTOL Mode(for free)
2x UBEC
1x LEO-2 Flight Control System
1x Assembling, tuned and Flying Test Service



CUAV V5+ RTF Combo:
1x Foxtech Great Shark VTOL Frame
1x High Efficiency Tail Motor
1x Tail ESC
1x 20 inch Propeller for Tail Motor

1x 20 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 22 inch Propellers for VTOL Mode

1x (pair) 22 inch Spare Propellers for VTOL Mode(for free)

1x Px4 Air Speedometer

2x UBEC

2x Power Monitor Module

1x CUAV V5+ Flight Controller with CUAV NEO V2 Pro GNSS

1x DA16S+ Radio Controller

1x Assembling, tuned and Flying Test Service


Option:

4x Foxtech Diamond 6S 22000mAh Semi-solid State Lipo Battery(Fixedwing mode)
2x 6S  8000mAh Lipo battery(VTOL mode)
FOXTECH 3DM V3 Oblique Camera for Mapping and Survey
FH230 TR 30X Optical Zoom Camera with 2-axis Gimbal

DA16S+ Radio Controller for AheadX Flight Controller (for LEO Combo)

ASHIL II Flight Simulation System(for LEO Combo)

Manual Download

Mission Planner Menu Items Setting Tips

Firmware Upgrade History
