Foxtech Diamond Series Solid-state Li-ion Battery

SKU: S201130

Availability: In stock



Reward points Earn your 319 reward points.



Compared with traditional battery, Diamond solid-state li-ion battery achieves both safety and performance improvement, which features high energy density, high discharge rate and high safety performance, small size and light weight.


Take 6S 22000mAh solid-state li-ion battery as an example:

6S 22000mAh solid-state li-ion battery is only 1963g, with 251.7Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.

Compared with Li-ion battery, the Diamond Solid-state Li-ion battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of Li-ion battery.

Compared with traditional lipo battery, the Diamond Solid-state Li-ion battery has light weight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the Diamond Solid-state Li-ion battery.

Diamond Solid-state Li-ion battery supports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommended discharge rate is 1C-5C to achieve the maximum discharge capacity, charging with 1C current to improve battery life.

Diamond Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter and VTOL, Robots, Surface ship etc. Like GAIA 160 series drone, GAIA160S hexacopter, RHEA 160 hexacopter, Great Shark VTOL and Baby Shark VTOL, by using semi-solid state battery the flight time will be greatly increased!

We may contact you for extra shipping cost due to some countries or areas will be considered "remote" by shipping companies.


Voltage: 22.2V
Capacity: 22000mAh
Continuous Discharge: 5C
Max.Discharge: 10C
Charge: 1C
Energy: 448.4Wh
Energy density: 251.7Wh/kg
Size: 19x6.5x7.5cm
Weight: 1963g
Plug: XT90
Working Condition Temperature:
Charge: 0℃~45℃
Discharge: -10℃~55℃


Your Purchase Includes:

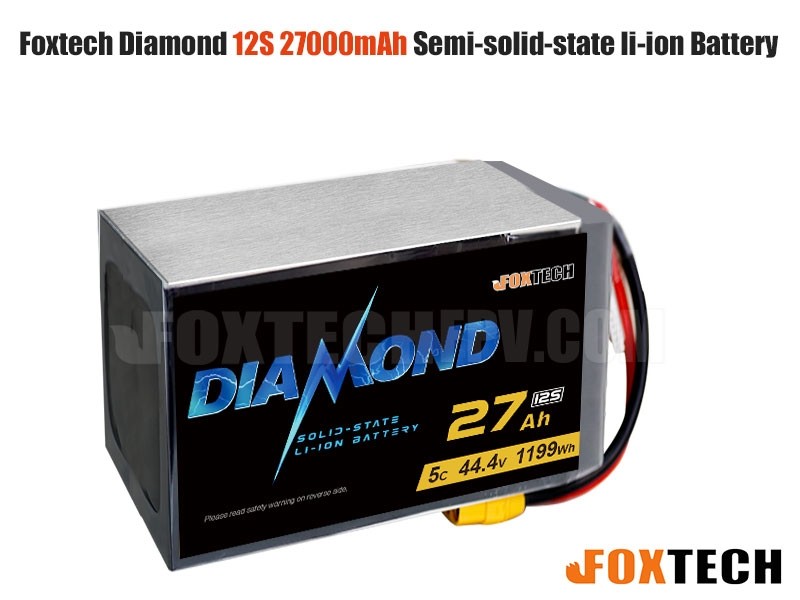

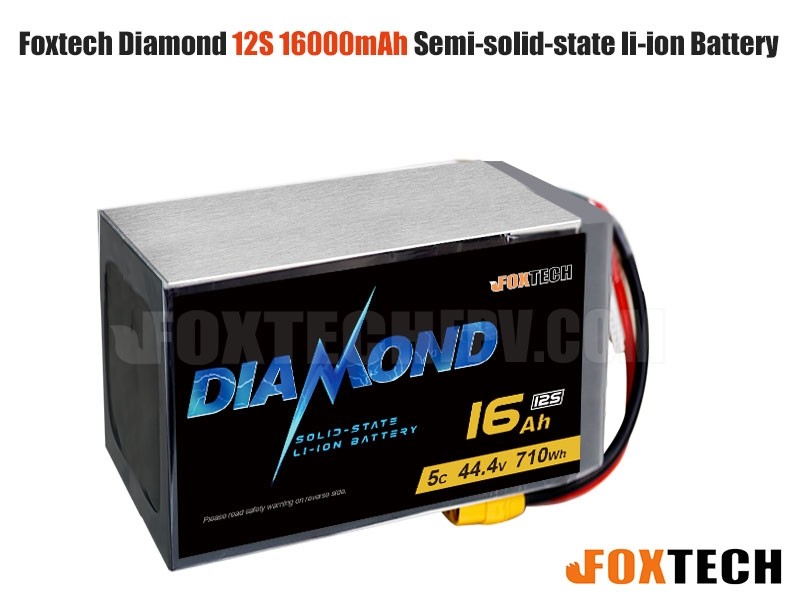

1x Foxtech Diamond 6S/7S/12S 16000/22000/27000/30000mAh Solid-state Li-ion Battery
