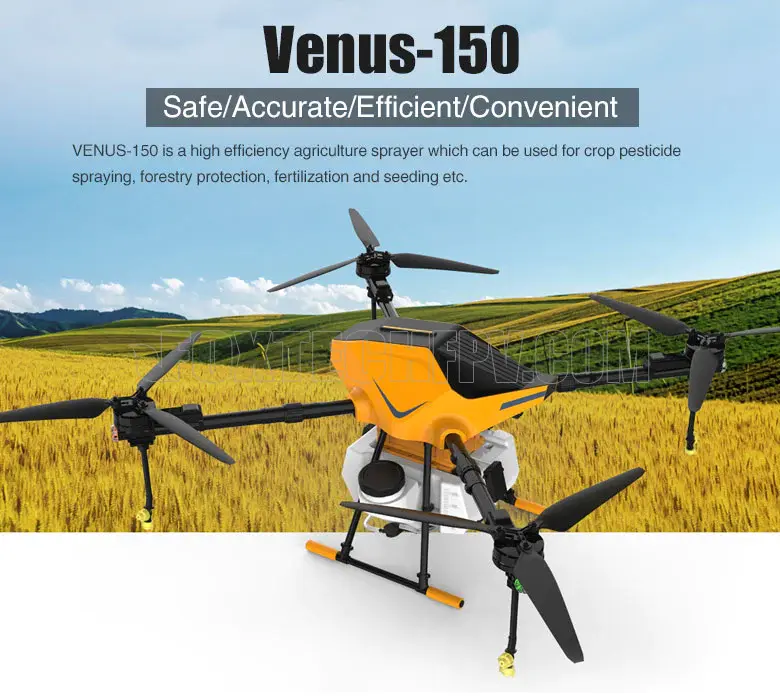

VENUS-150 is a high efficiency agriculture spraying drone with 22L pesticide tank which can be used for crop pesticide spraying, forestry protection, fertilization and seeding etc.
Made of aviation aluminum and carbon fiber material, VENUS-150 agriculture spraying drone is corrosion-resistant, light and durable; the modular design makes it convenient for assembly and maintenance. Venus-150 is a giant quadcopter but it can be folded into a small size (691mm*670mm*647mm), very convenient for transportation.

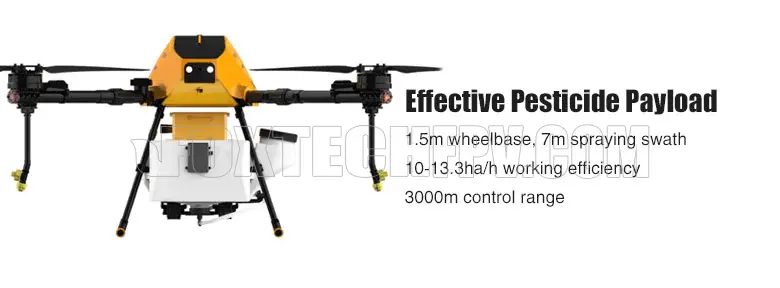

The using of 3-blade folding propeller greatly reduces the vibration of the drone and then ensures a reliable flight. The agriculture spraying drone is equipped with a 22L pesticide tank, the operation efficiency is 24.7-32acre/h. The two pumps on the sprayer are controlled by precise flow meters, which can control the flow rate precisely, the flow rate is 2.3～7.4L/min adjustable; Venus-150 is also equipped with a FPV HD camera for real-time flight environment monitoring, and three radars for terrain following and obstacle avoidance; With the help of the radio controller, VENUS-150 agriculture spraying drone can realize many intelligent functions like one-button take-off and landing, auto route planning, breakpoint continuing etc.

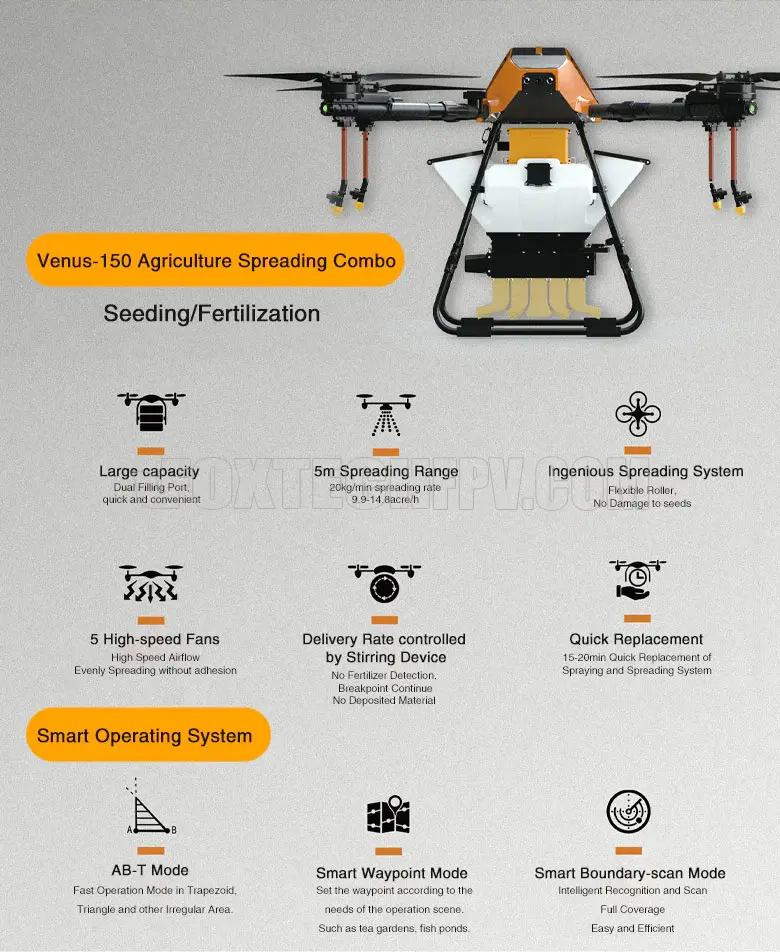

The Venus-150 agriculture drone can also load with a 22L precise spreading system for seeding, fertilization and plant protection. It offers efficient, reliable and stable spreading operations when dispensing dry material of a diameter between 1mm to 10mm.
The unique rolling feeder design makes the particles distributed evenly without adhesion; the high speed airflow generated from 5 electric fans enables the particles be dispensed rapidly and evenly on the ground.Equipped with the advanced industrial-grade flight control system and obstacle avoidance system, the agriculture drone can be operated autonomously and freely over different terrains.
Venus-150 is a cost-effective agriculture sprayimg drone with good flexibility and adaptability, it can be applied in various areas such as crops, forests and orchards.

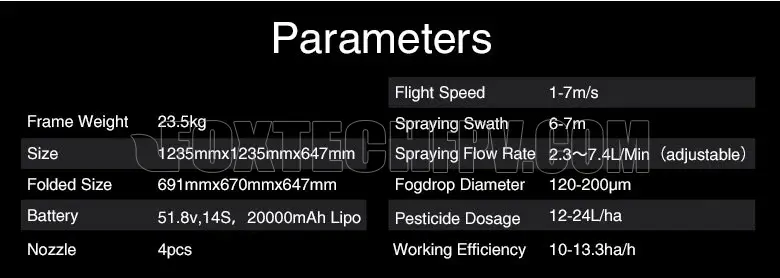

Specification:
RTF Weight: 23.5kg
Pesticide Tank: 22L
Size: 1235mmx1235mmx647mm
Folded Size: 691mmx670mmx647mm
Flight Speed: 1-7m/s
Spraying width: 6-7m
Flight Time: 15 minutes
Spraying Flow Rate: 2.3～7.4L/Min（adjustable）
Fogdrop Diameter: 120-200μm
Pesticide Dosage: 12-24L/ha(4.8-9.7L/acre)
Working Efficiency: 10-13.3ha/h(24.7-32acre/h)
Battery: 51.8v, 14S, 20000mAh Lipo
Nozzle: 4pcs
Your Purchase Includes:
RTF with 2 Batteries
1x Venus-150 Agriculture Spraying Drone
1x Radio Controller
2x 14S 20000mAh Intelligent Lipo Battery
1x Battery Charger
1x Carrying Case
RTF with 4 Batteries
1x Venus-150 Agriculture Spraying Drone
1x Radio Controller
4x 14S 20000mAh Intelligent Lipo Battery
1x Battery Charger
1x Carrying Case
Spreading Combo with 2 Batteries
1x Venus-150 Agriculture Spreading Combo
1x Radio Controller
2x 14S 20000mAh Intelligent Lipo Battery
1x Battery Charger
1x Carrying Case
Spreading Combo with 4 Batteries
1x Venus-150 Agriculture Spreading Combo
1x Radio Controller
4x 14S 20000mAh Intelligent Lipo Battery
1x Battery Charger
1x Carrying Case
Fumigation System
1x Fumigation System for Agriculture Drone
1x 2.5L Fuel Tank
