The new 16MM carbon tube fixed set of imported fiber reinforced nylon material, suitable for carbon tube diameter 16MM DIY assembly and TAROT680/690/650 folding multi axle vehicle frame assembly. On using M2.5 ladder[TL2778-01] the fastening screws, the diameter of M3.2 contact surface can make the PCB board and the arm fixedly connected. Carbon tube folding seatwidened 3 point support, to prevent cracking breaking effect, contact surface increases and the carbon plate, design of new anti slip can be tightly lock up carbon tube better.

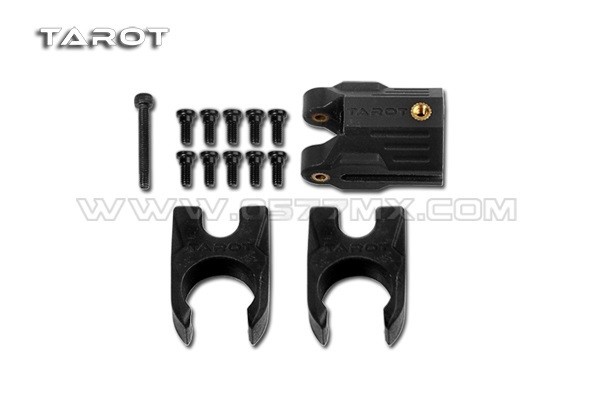

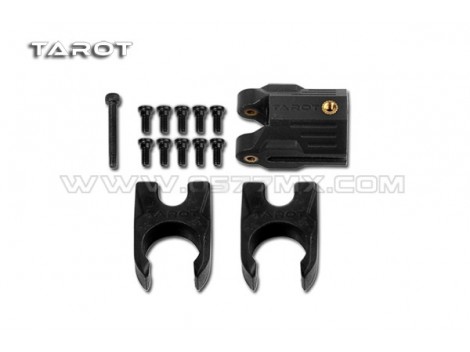

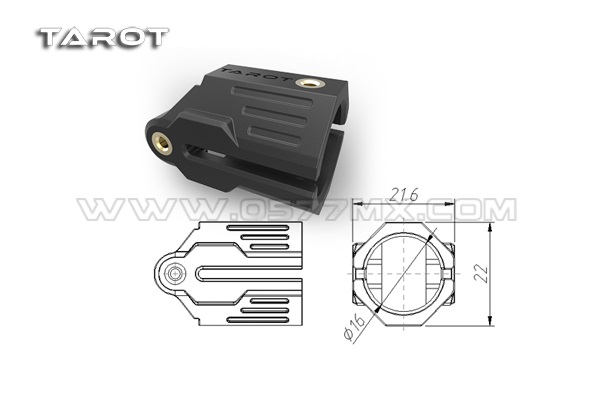

16MM carbon tube fixing sleeve (21.5xΦ16x31.5MM)x1 (weight: 7.3grams)

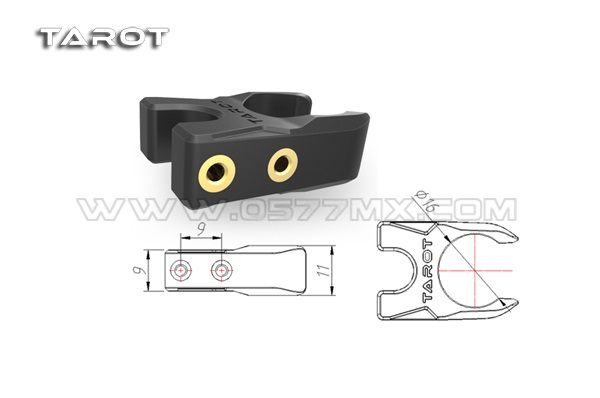

16MM carbon tube folding positioning seat (31x21.7x11MM)x2 (weight: 5.5grams)
M2.5x6.5x10 six angle step screw
M2.5x22MM cup head screws six angle x1
