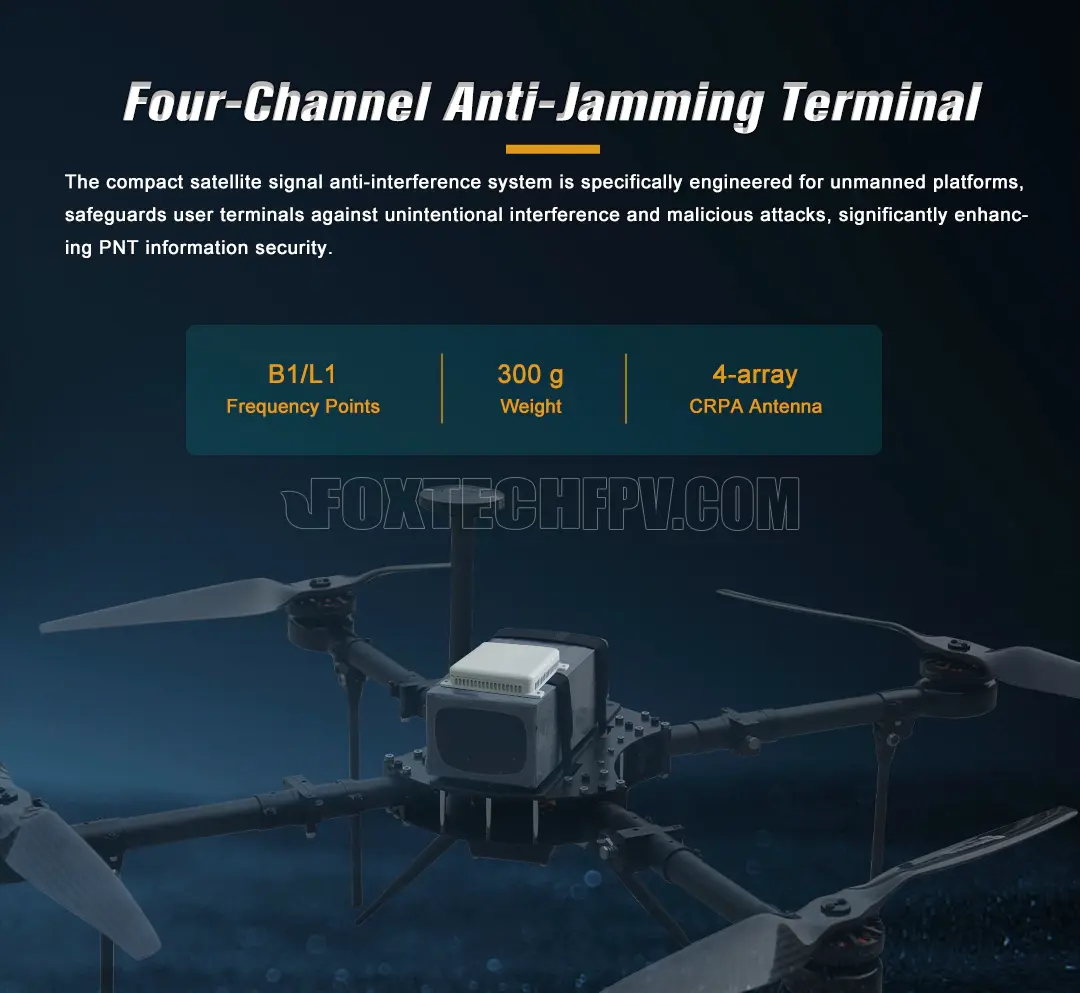

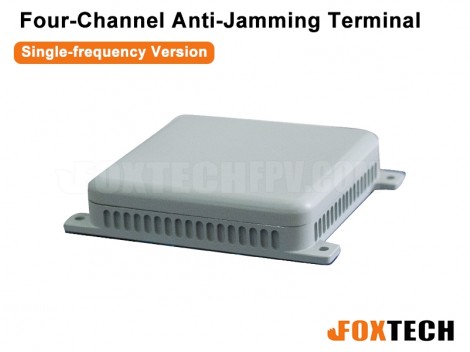

This compact satellite signal anti-interference system is specifically engineered for unmanned platforms to enhance the safety of PNT (Positioning, Navigation, and Timing) foundational data.
The anti-Jamming system with built-in positioning module is capable of receiving satellite signals, primarily serving to negate threats from jamming guns and interference radars, ensuring that the navigation data of UAVs remains uncorrupted, preserving accurate positioning and heading.
The anti-interference system integrates 4 satellite antennas, positioning module, and anti-interference module to directly supply satellite navigation data to the UAV flight control system. It operates on dual-frequency points, allowing for the selection of any two from the B1/L1, L2, and B3 bands (B1/L1, B3 frequency by default).
Specifications:
Anti-Interference Capacity:
Unidirectional interference: Better than 85dBc
Multidirectional interference: Better than 70dBc
Types of Interference Mitigated:
Band-limited Gaussian white noise, Spread-spectrum matched spectral interferencePulse interference, Swept-frequency interference, Composite interference
Anti-Interference Spatial Coverage:
Azimuth: 0°~360°
Elevation: -90°~90°

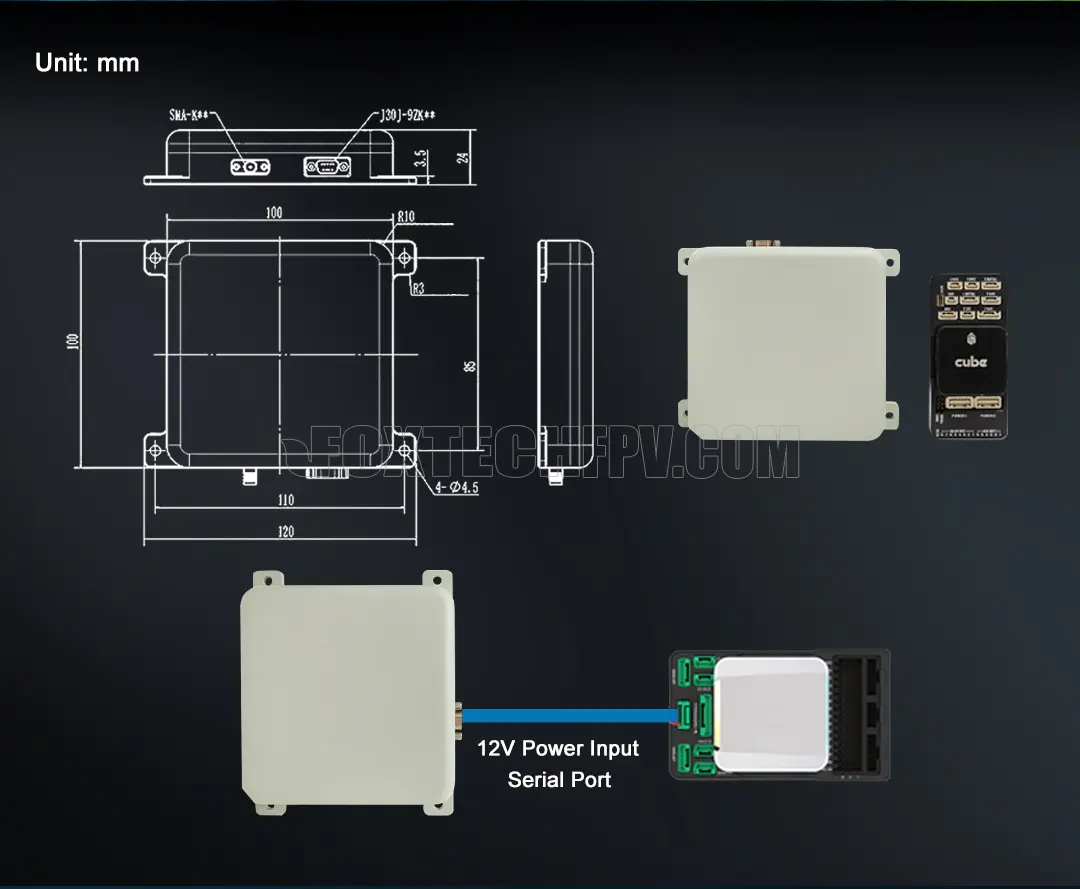

Dimensions: 100*100*25 mm
Power Consumption: 7.2W
Weight: 300g
Output Signal Frequency: B1L1
In-band Output Power: -65+1dBm
Output lmpedance: 50 Ohms
