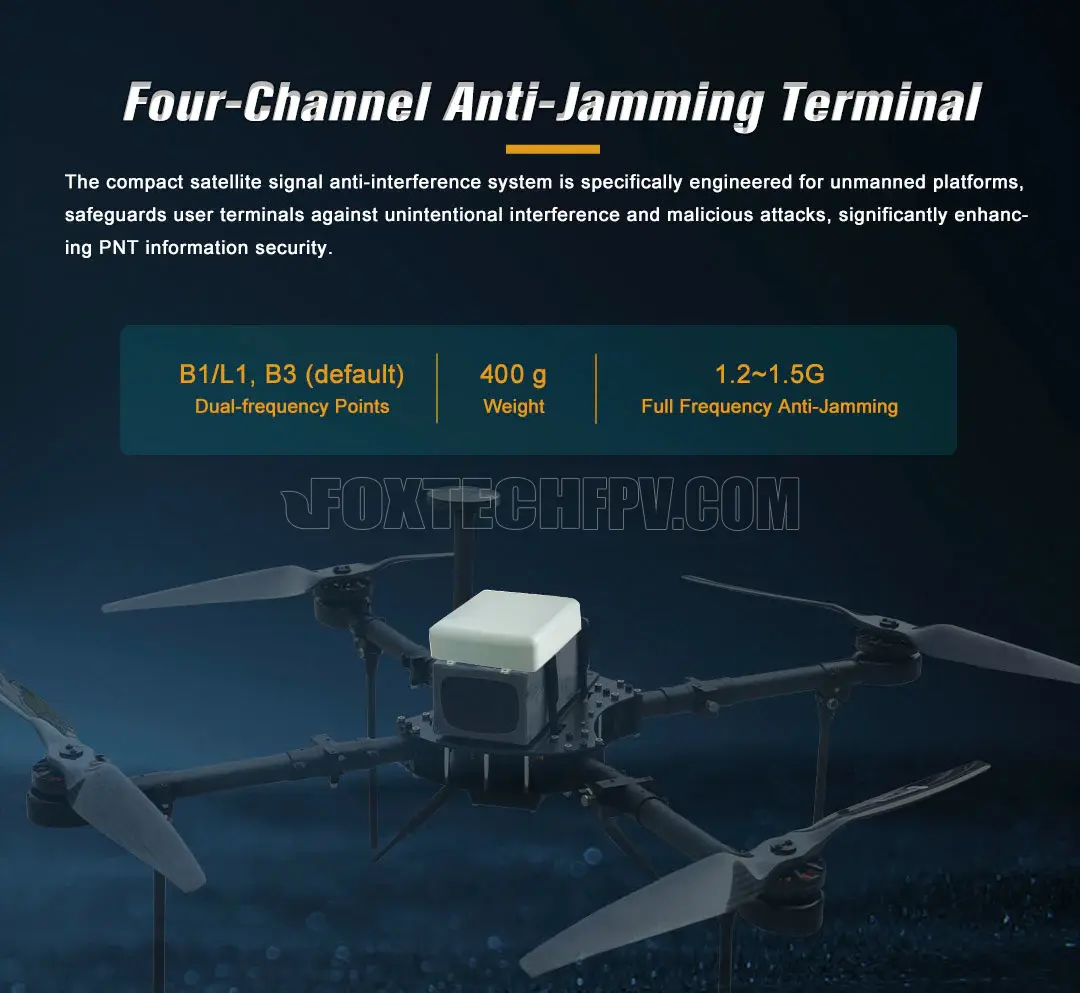

This compact satellite signal anti-interference system is specifically engineered for unmanned platforms to enhance the safety of PNT (Positioning, Navigation, and Timing) foundational data.
The anti-jamming system with a built-in positioning module is capable of receiving satellite signals, primarily serving to negate threats from jamming guns and interference radars, ensuring that the navigation data of UAVs remains uncorrupted, preserving accurate positioning and heading.

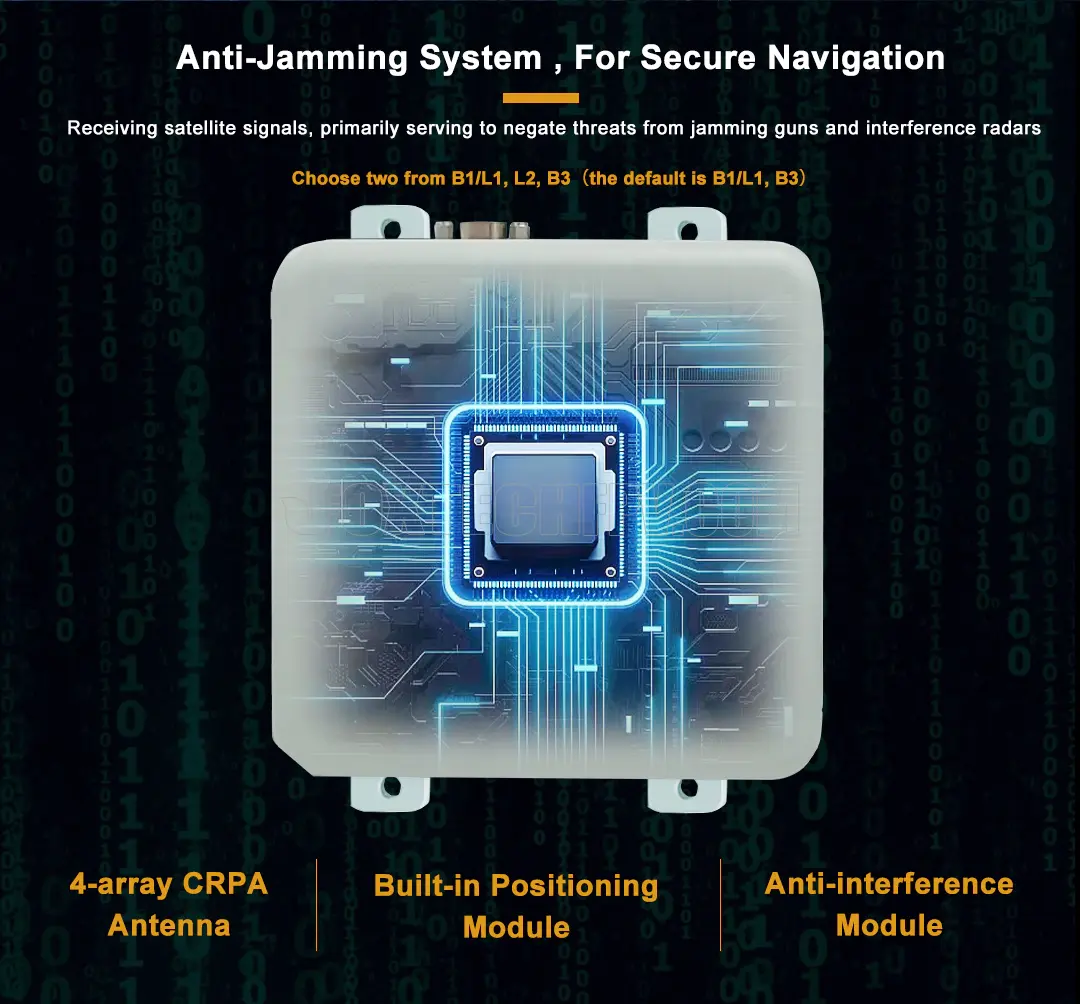

The anti-interference system integrates 4 satellite antennas, a positioning module, and an anti-interference module to directly supply satellite navigation data to the UAV flight control system. It operates on dual-frequency points, allowing for the selection of any two from the B1/L1, L2, and B3 bands (B1/L1, B3 frequency by default).
Features:
Dual-frequency point anti-interference capabilities, covering both 1.2 GHz and 1.5 GHz bands
GNSS Coverage Including: GPS L1/L2, GLONASS L1/L2, BeiDou B3
An embedded positioning module that connects directly to the flight control system
400 g weight, making it particularly suitable for UAV applications
Specifications:
Anti-Interference Capacity:
Unidirectional interference: Better than 90dBc
Multidirectional interference: Better than 80dBc
Types of Interference Mitigated:
Band-limited Gaussian white noise, Spread-spectrum matched spectral interference
Pulse interference, Swept-frequency interference
Composite interference
Anti-Interference Spatial Coverage:
Azimuth: 0°~360°
Pitch: -90°~90°

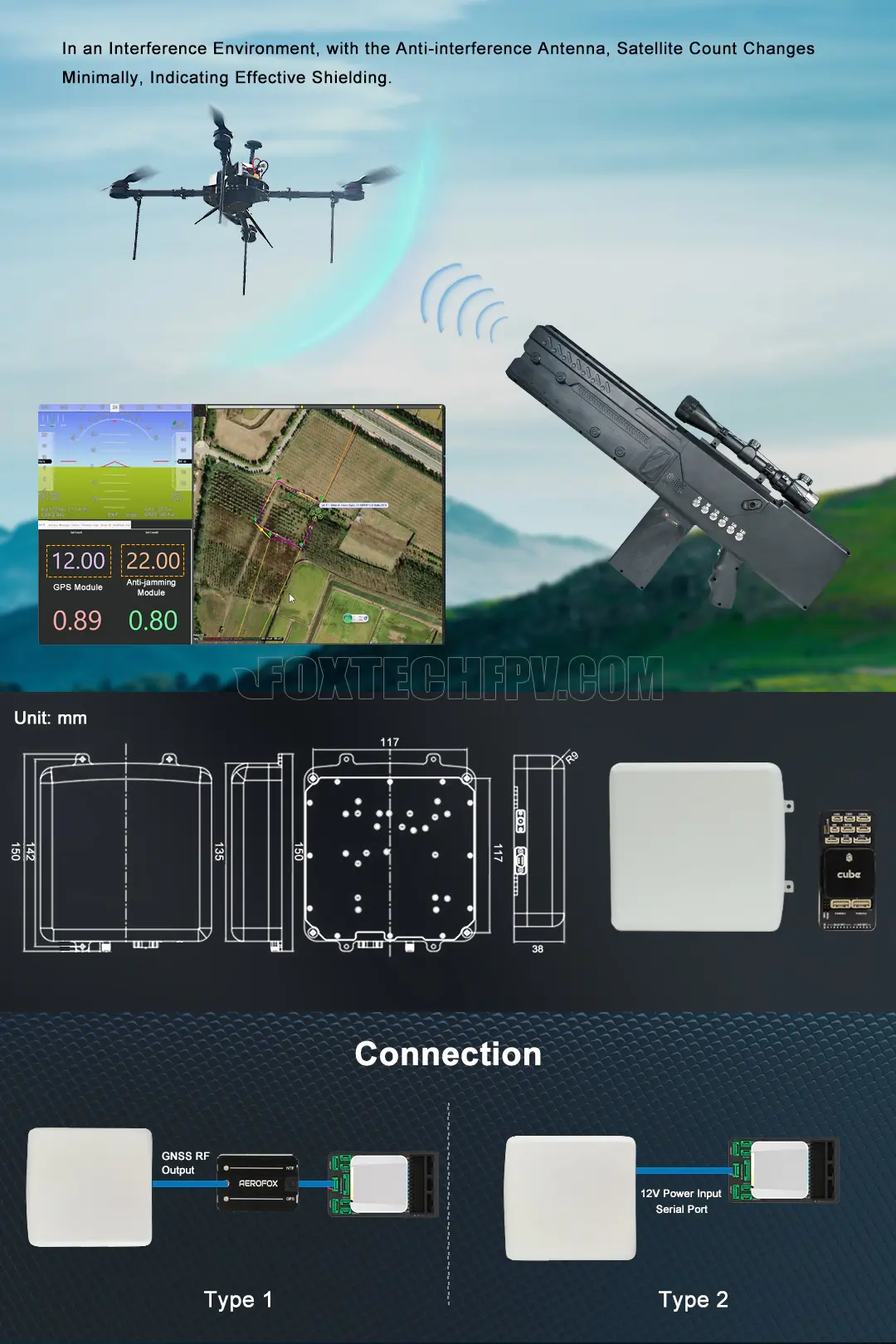

Dimensions: 135*130*37 mm (100*100*25 mm)
Power Consumption: 10W
Weight: <400g
Output Signal Frequency: All navigation points from 1.2 to 1.6 GHz, consistent with input frequency
In-band Output Power: -65±1dBm
Output Impedance: 50 Ohms
