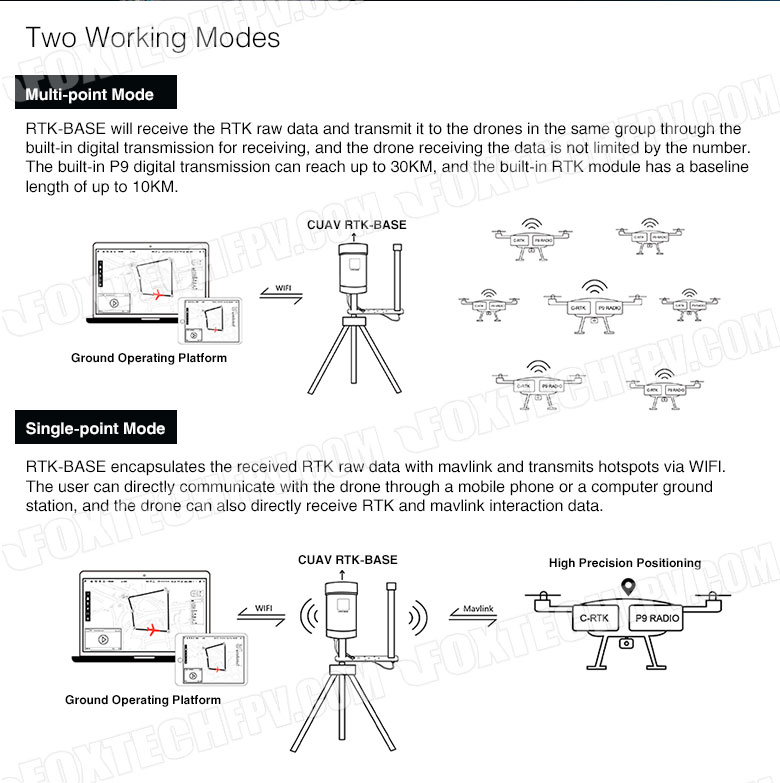

Operating Mode: Point-to-point, point-to-multipoint(broadcast)
Support satellite type: GPS L1 C/A, GLONASS L1OF, BeiDou B1I
Configuration method: WEB interface
RTK refresh rate: up to 8hz

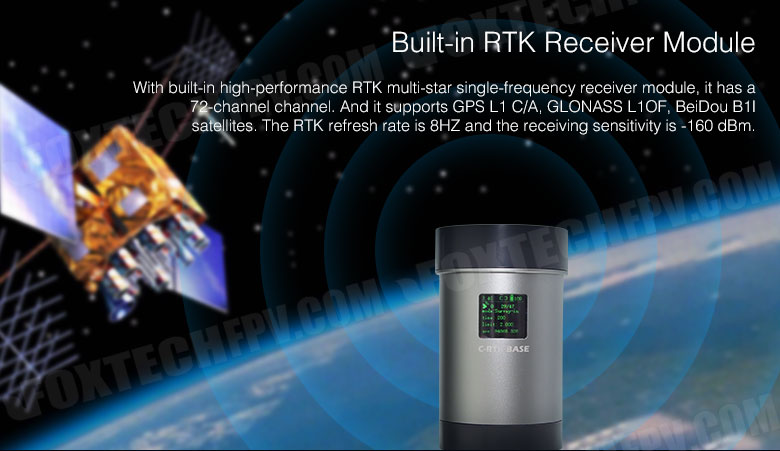

RTK receiving channel: 72-channel u-blox M8 engine (M8P + M8N)
Positioning accuracy: 3D FIX：2.5 m; RTK：0.025m
Convergence time 2 RTK < 60 sec
Sensitivity: Tracking & Nav –160 dBm
Cold starts –148 dBm
Hot starts –156 dBm
Reacquisition –158 dBm
Support FC agreement: Mavlink 2.0/1.0

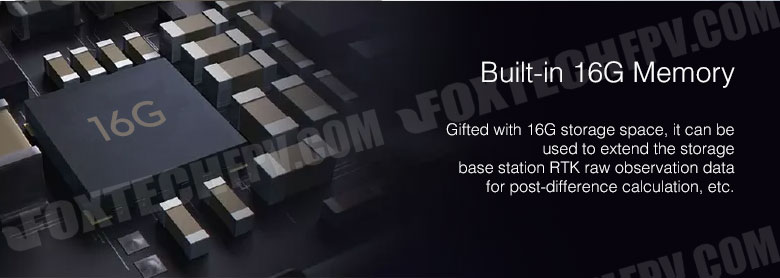

Built-in storage: 16GB
DC voltage: 9~12v
Built-in battery capacity: 7.4v 7000Mah
Battery working time: 12H
Working current: 12V/1.5A MAX
Operating temperature: -10°~ +60°
Size: 60x115mm
Shell Material: 6063 aviation aluminum +ABS+PC
Antenna interface: SMA Female

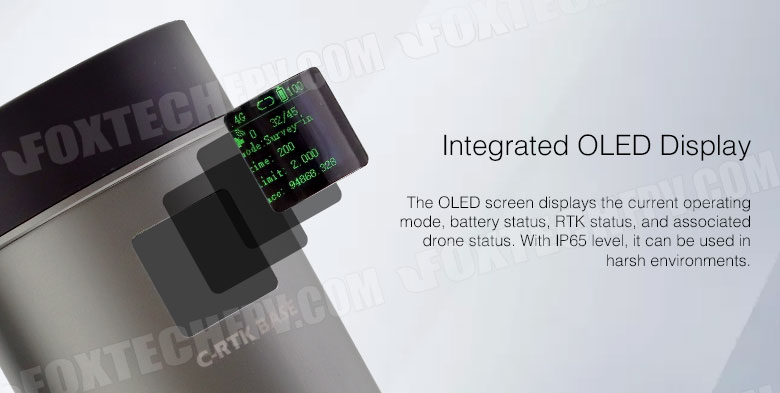

Screen Type: OLED self-illumination 150x150 resolution

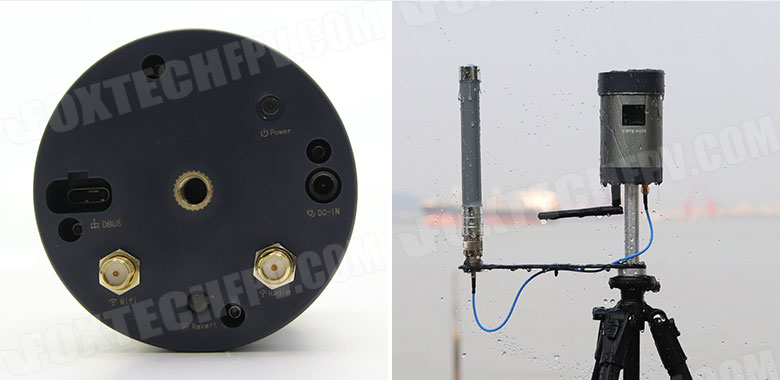

Interface Type
Charging interface: Non-standard DC3.5*1.35
Extension port: RJ45 network port x1
TTL serial port x2
TYPE-C USB x1
P9 antenna extension x1
WIFI extension x1

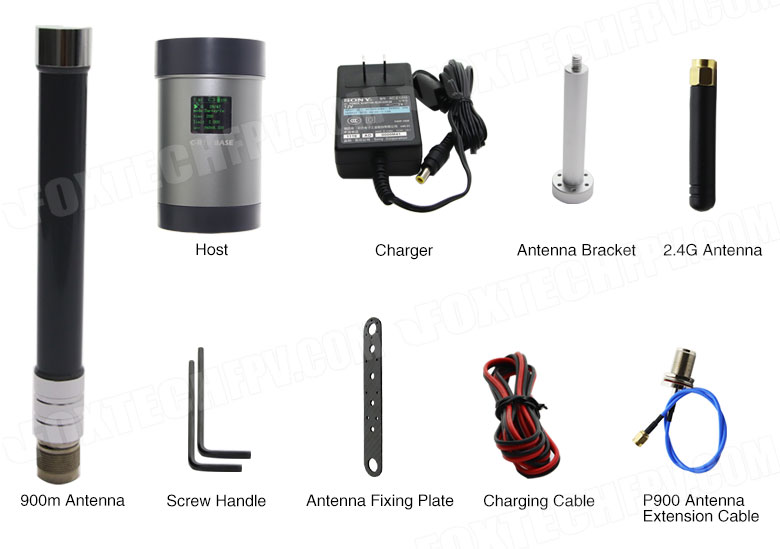

Your Purchase Includes:
1x C-RTK BASE
1x 2.4G antenna
1x Charger
1x Antenna Bracket
1x 900M Antenna
1x Antenna Fixing plate
1x Screw handle
1x Charging Cable
1x P900 Antenna Extension Cable
