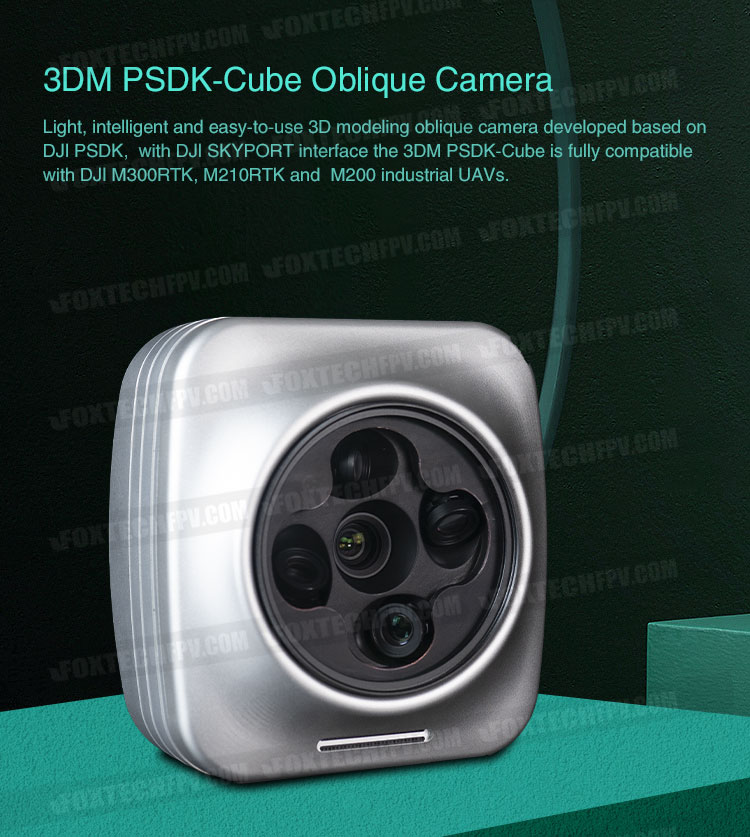

Foxtech 3DM PSDK-Cube is a light, intelligent and easy-to-use 3D modeling oblique camera with total 121.5 mega pixels developed based on DJI PSDK, with DJI SKYPORT interface the 3DM PSDK is fully compatible with DJI M300RTK, M210RTK and M200 industrial UAVs, which can be used to generate high-precision orthophoto maps and digital elevation models in many fields such as territorial planning, urban and rural construction, cultural relics protection etc.

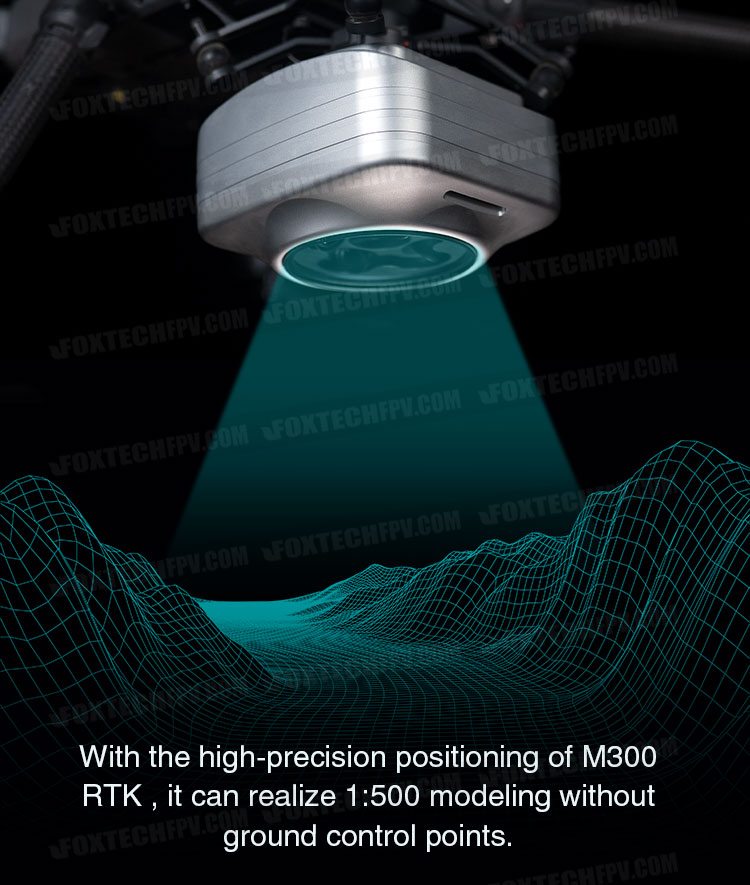

3DM PSDK-Cube is made of high-strength aluminum alloy, the whole weight is only 680g. It is mounted to DJI M300 RTK through SKYPORT which is integrated with power, RTK signal, data and image transmission, it can realize 1:500 modeling without ground control points; 3DM PSDK adopts photo anti-lost algorithm, completely solving the problem of photo loss, ensure the data reliability and integrality; With the special pre-processing software, POS data will be written to the photos, then using mainstream data processing software such as DJI Terra and CC to generate 3D model.
Specification:
Number of lenses: 5
Camera weight: 680g

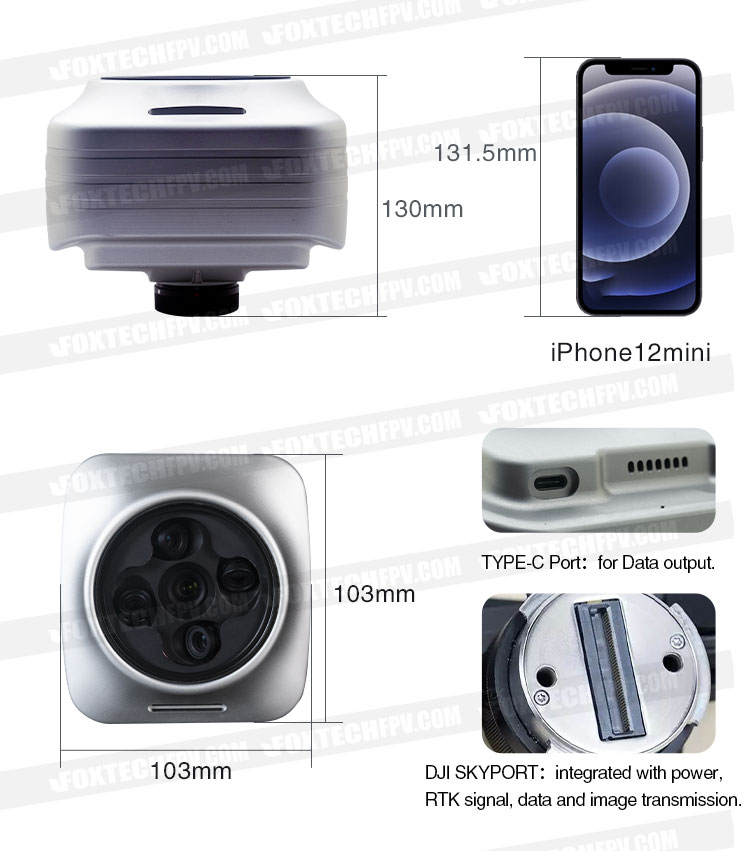

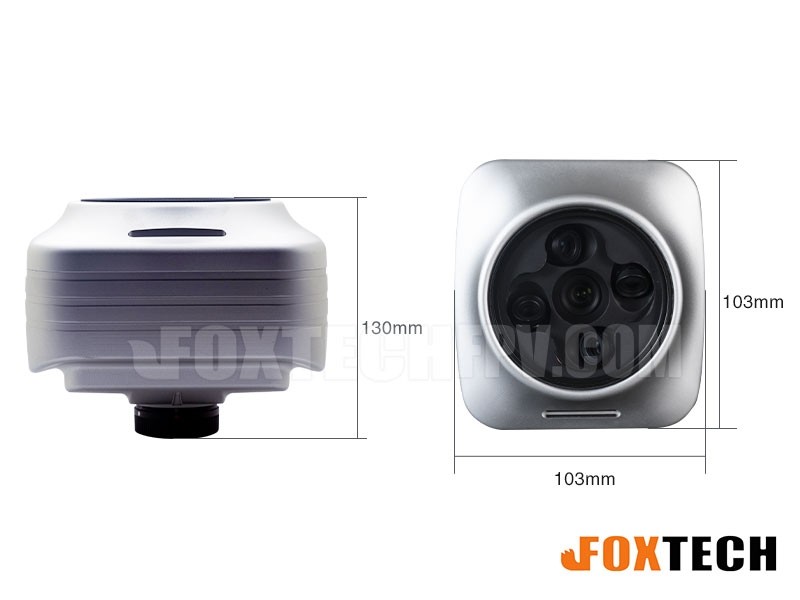

Camera size: 10.3x10.3x13cm
Storage: 320G
Pixels: 5*24.3 mega pixels, total pixels 121.5 mega
Pixel size: 3.92 microns
Sensor size: 23.5*15.6mm
Frame: APS-C
Resolution: 6000*4000
Focal length: 25mm+35mm
Shutter speed: 1/1000 second
Shutter trigger mode: Flight control signal trigger
Shutter type: Mechanical shutter
Stable continuous shooting interval ≥0.8 seconds

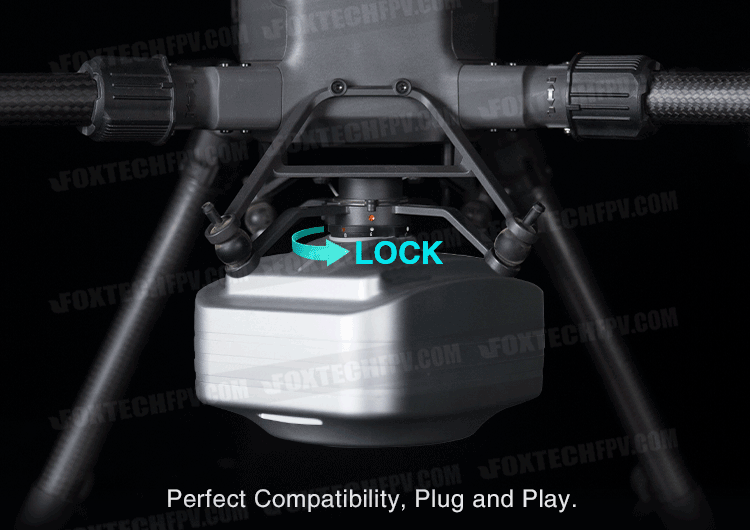

Communication interface: DJI SKYPORT
Data interface: TYPE-C
Working temperature: -20°~50°
Product material: Aluminum alloy

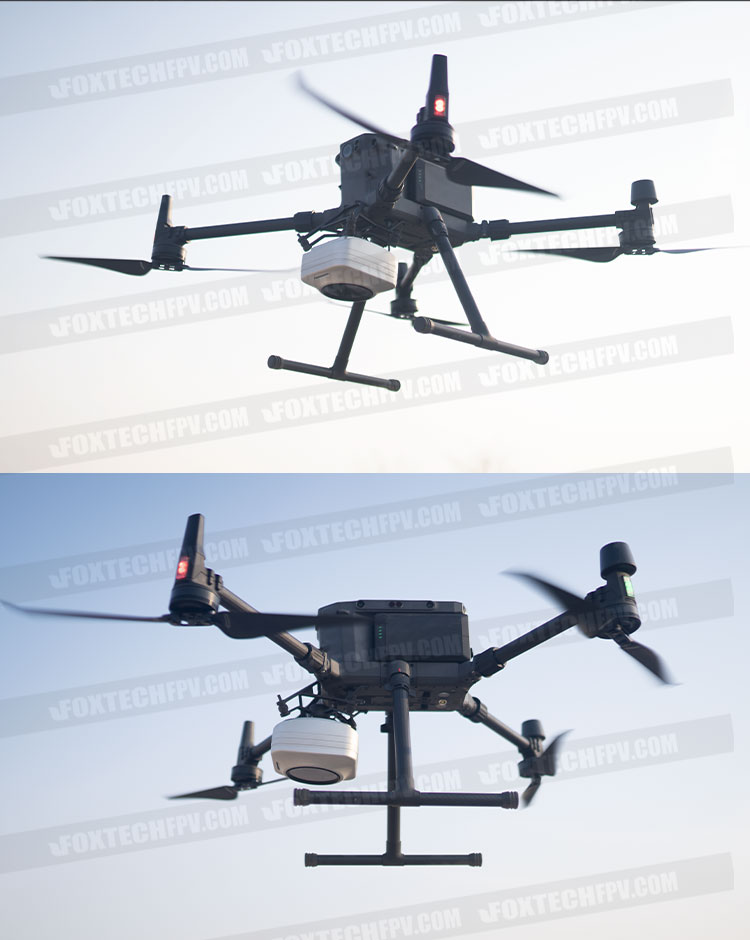

Compatible aircraft: DJI M300RTK, M210RTK, M200
Features:
-Time synchronization algorithm: Time Sync
-Photo anti-lost algorithm:Instant Shot
-Camera repair algorithm: Regular Repair
-Photo collection algorithm: Auto Folder
-Ground control point: 100% exempt(with DJI aircraft that supports RTK)
-Accuracy in modeling: meets the national 1:500 accuracy standard
-Ground station software: DJI Pilot
-Firmware upgrade method: Online upgrade
-International certification: Fcc, CE, ROSH
-Made of high-strength aluminum alloy,the whole weight is only 680g.
-Original precise measurement technology,the data accuracy can reach 1cm.
-Completely solve the problem of missed shooting and photo lost,ensure the data reliability and integrality.

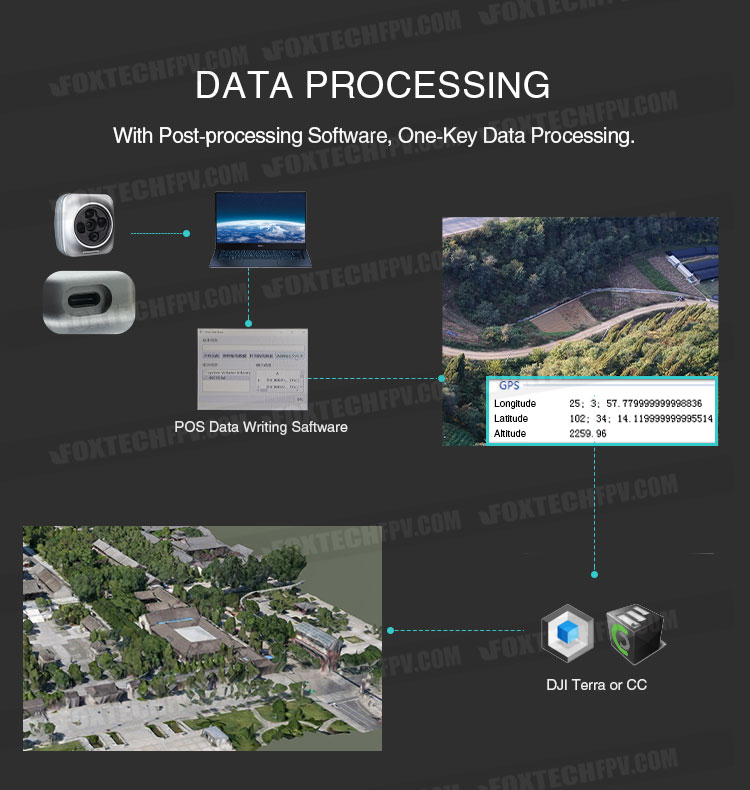

-With pre-processing software,automatically collect and organize original photos,one-key data post-processing.
-Compatible with mainstream data processing software such as CC and DJI Terra.

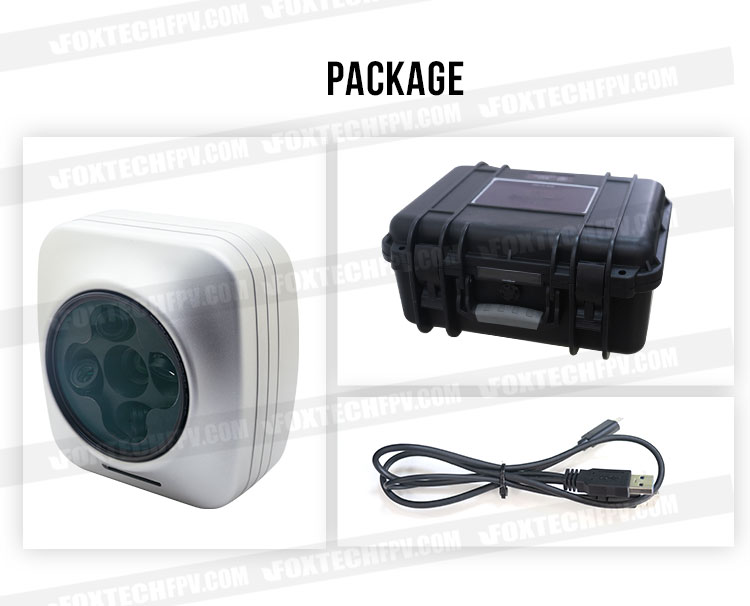

Your Purchase Includes:
1x Foxtech 3DM PSDK-Cube Oblique Camera
1x Type-C to USB Data Cable
1x Carrying Case
