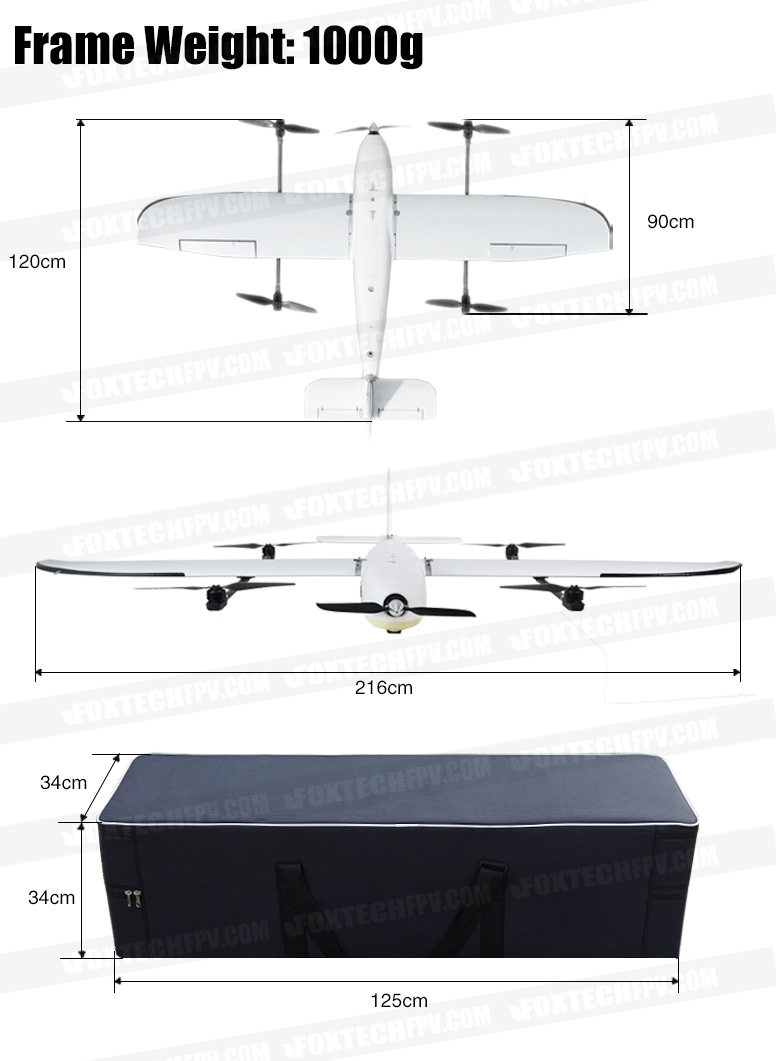

Foxtech Loong 2160 VTOL is a quick-assemble, reliable high performance VTOL specifically design for mapping. It has the advantage of being cost-effective and easy-to-use. It features aerodynamic shape with 2160mm wingspan and 1200mm fuselage. Made from EPO and reinforced by carbon tubes that are of high tensile strength and low weight, the whole frame is durable and portable, weighing only 1kg.
In order to reinforce the drone, the belly is coated with composite materials and two wings are covered with a layer of high-strength Aluminum-plastic Film for protection.
It adopts “4+1” motor design that includes 4 VTOL motors and 1 fixed-wing motor, realizing space-efficient VTOL and fast-speed fixed wing task performing at the same time with powerful propulsion system.
Besides, it withstands 5.5m/s-7.9m/s(32mph-44.8mph) wind, making it possible to perform aerial task in various complex situations.
The ESC for fixed wing mode is mounted on the outside for better heat dissipation. Metal buckle is installed in the center of gravity position to prevent loosening and also makes it easier to locate CG.
The camera cabin’s neat wiring layout helps to configure the camera without wires getting intertwined.
The biggest highlight of Loong is that it adopts quick-assemble design, which allows you to assemble it easily without any tools so as to shorten preparation time for each flight.
It can be loaded with max 1.3kg of devices, sufficient enough for almost any types of Foxtech task-load cameras, of which there are some cameras we recommended for you to do mapping jobs: Map-01, Map-A7R, 3DM V3 or Argus V2 3D Modeling Oblique Camera.
Version: Loong 2160 VTOL
Material: EPO, Aluminum-plastic Film
Frame Weight: 1kg
ARF Weight: 3.8kg (no battery, no payload)
Max. Take-off Weight: 8kg
Suggested Max Payload: 1.3kg(excluding battery)
120 min--1x Diamond 6S 30000mAh Battery, no payload
90min--1x 6S 25000mAh High Voltage Lipo Battery, no payload
80min--1x 6S 22000mAh High Voltage Lipo Battery, no payload
Recommended Cruising Speed: 18-20m/s
Stall Speed: 12-14m/s
Suggested Take-off Altitude:
0~3000m (6S 25000mAh High Voltage Lipo Battery/6S 22000mAh High Voltage Lipo Battery/Diamond 6S 30000mAh Battery)
Above 3000m (6S 25000mAh High Voltage Lipo Battery/6S 22000mAh High Voltage Lipo Battery)
Wind Resistance: 5.5m/s-7.9m/s(32mph-44.8mph)
Working Voltage: 24V
Working Temperature: -10℃-40℃
Carrying Case: 125cm*34cm*34cm
Your Purchase Includes:
1x Loong 2160 VTOL Frame
4x VTOL Motor 4114 KV420
1x Motor for Fixed-wing Mode 4120 KV430
4x VTOL ESC 40A Pro
1x ESC for Fixed-wing Mode 80A V5
3x 17g Servo
2x 9g Servo
2x(pair) 1555 Carbon Fiber Propeller
1x 1680 Folding Propeller
1x Pitot Tube
1x Carrying Case
