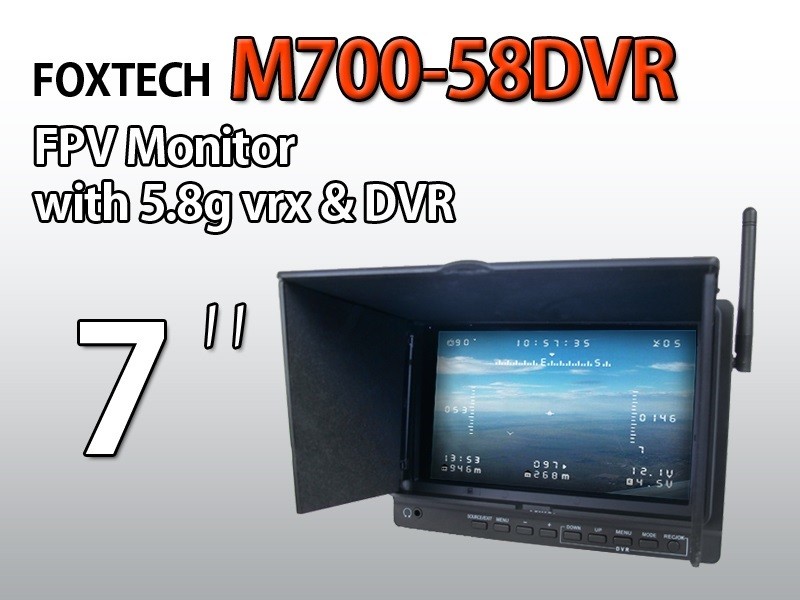

Foxtech M700-58DVR 7" monitor

SKU: 001169

Availability: In stock ( 6 )

Weight:1000g

Regular Price: $214.99

Special Price $158.69

save  26.19%

Reward points Earn you 159 reward points.

Qty:

The Coolest all in one multi-function FPV Monitor M700-58DVR, with the foxtech 5.8g receiver and DVR built inside, never have 'BLUE SCREEN' problem and more important function for FPV user. M700-58DVR has simplest wiring and connections,only mount a F970 battery, no any cables needed!

Introduction:
-Photo Function: It can take, review & store pictures
-Seamless Continuous Record: No Intermittent Recording, it will not miss any detail and wonderfulness
-Resolution: D1(720×576),VGA(640×480)QVGA(320×240), higher Resolution,bigger File
-Cycle Recording: Supports loop recording, which can automatically overwrite when storage is full;TF card life is longer than normal DVR with unique algorithm
-Motion Detection: Record Only when there is movement
-Motion detection Sensitivity: Adjustable according to the situation
-Day Label: Optional to show the day label when video recording
-Voice Record: Optional when video recording

Feature:
1.No Blue Screen
2.FPV Portable DVR
3.TF Card Support up to 32G
4.High Video Quality
5.Speaker
6.Receiving Sensitivity:-90dBm
7.Frequency Control:built-in Frequency and Phase Lock Loop
8.Support Wired & Wireless Camera, Photo Function
9.Motion Detection, Cycle Recording

Technical:
-Resolution:1024 x 600
-Aspect Ratio:16:9
-Brightness:250cd/m2
-Contrast:700:1
-Response Time:10ms
-Backlight:LED
-Support Video Format:PAL-4.43; NTSC-3.58
-Viewing Angle:75°/75°(L/R)75°/75°(U/D)
-Input Singnal:VideoAudioRFHDMI
-HDMI Support Mode:480i480p576i576p720p1080i1080p(50/60Hz)
-Output Singnal:VIDEO
-Earphone Output:3.5mm Audio output
-Input Voltage:DC:6~24V
-Power Consumption:≦8W
-Install Way:Includes a standard 1/4-20 tripod mounting hole on the bottom for simple use in your ground station!
-Working Temperature:‐20~50℃
-Storage Temperature:‐30~65℃
-TF Card Max up to:32G
-Size:189(L)x134(W)x50(H)mm
-Weight:476g

Your purchase includes:
1x M700-58DVR monitor
1x F970 battery plate(mounted0
1x Removable/foldable sun shade
1x RPSMA 5.8g antenna
1x Mini HDMI cable
1x Manual

F970 Lipo Battery & Charger Combo: Click here to purchase!

For best/farthest transmitting performance, the directional antenna suggested:
-5.8G 11dbi directional antenna: https://www.foxtechfpv.com/58g-11dbi-directional-antenna-p-369.html
-5.8G 12dbi directional antenna: https://www.foxtechfpv.com/foxtech-58g-12dbi-patch-antenna-p-187.html
-5.8G 16dbi directional antenna: https://www.foxtechfpv.com/58g-16dbi-patch-directional-antenna-p-437.html
