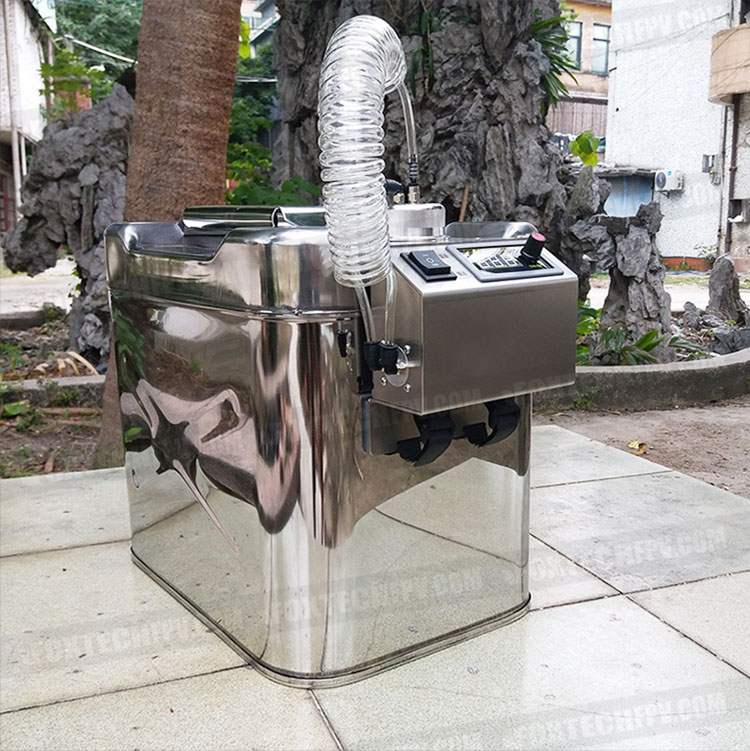

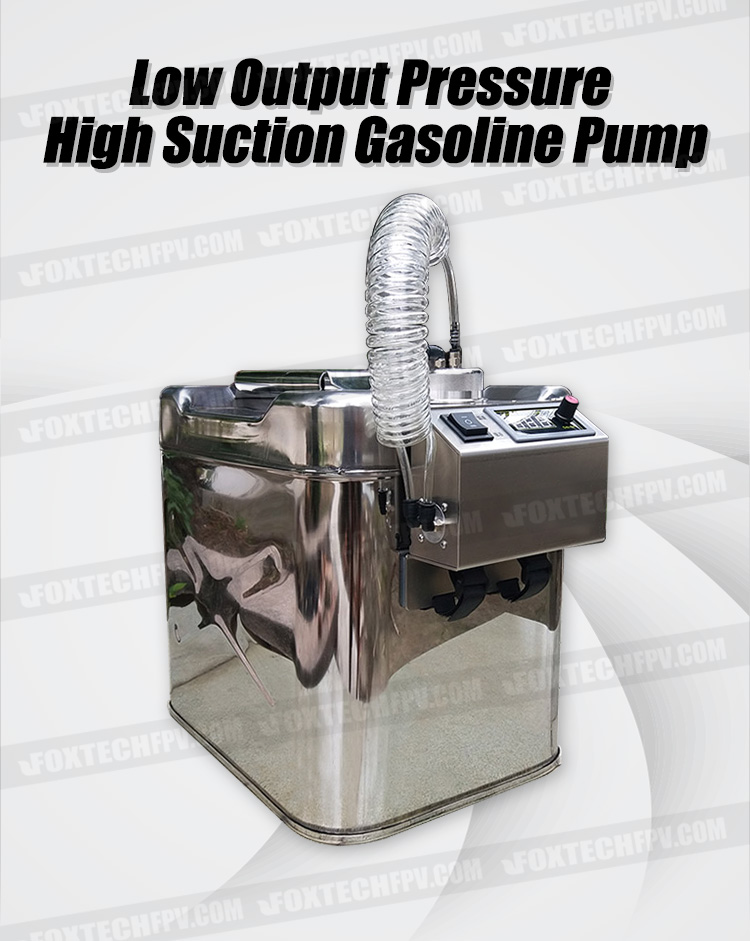

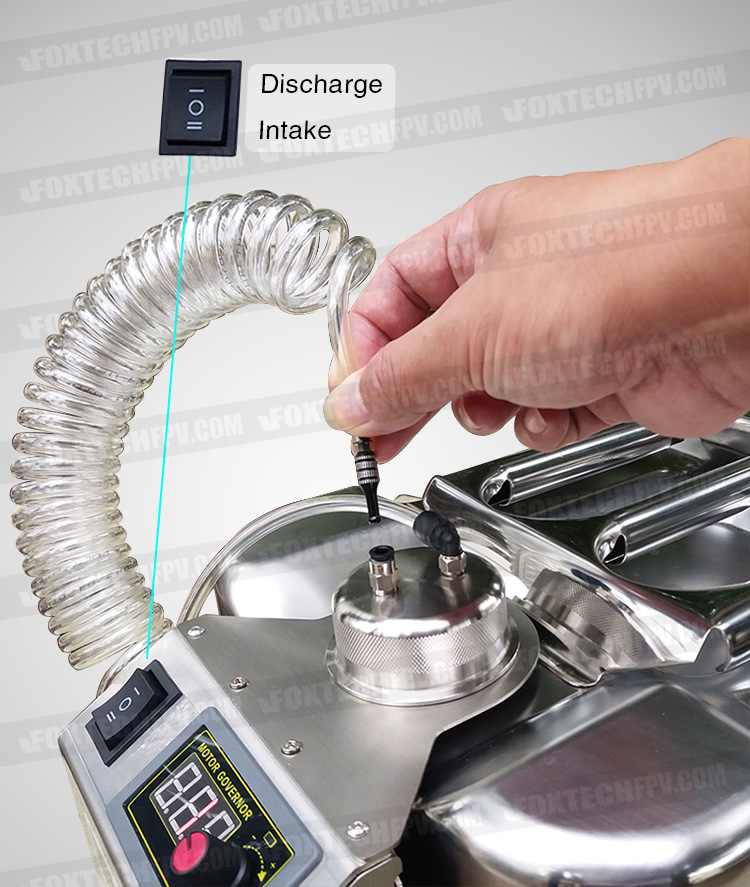

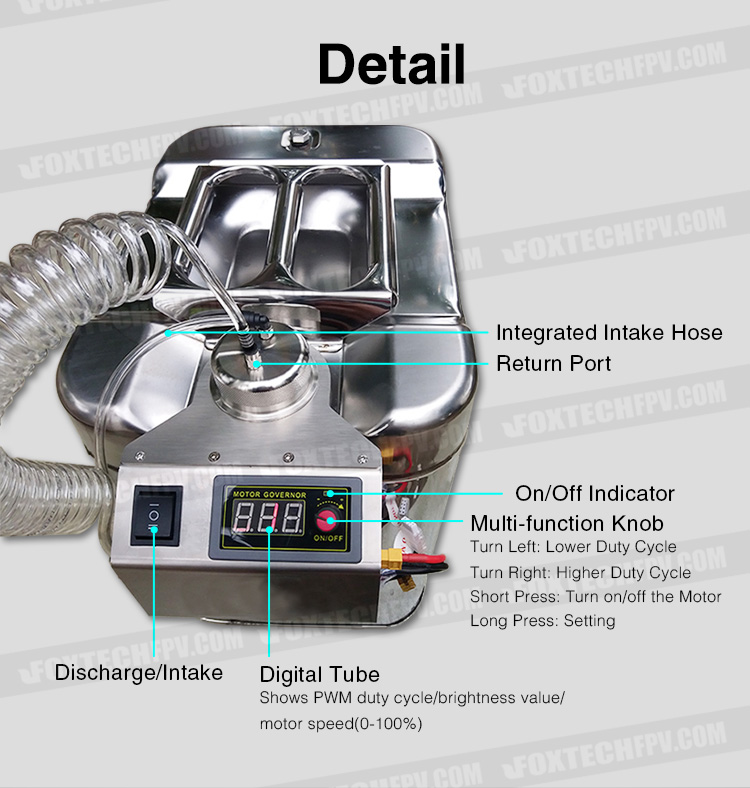

This fuel system uses a self-priming two-way gear pump which is designed for fueling and features large suction, low-pressure output and high flow.
The gasoline pump consists of a full aluminum alloy gear pump made by CNC precision machining, 0.5kg·cm high torque motor and other all-metal gears.
The output of the two-way gear pump is linear, i. e., the higher the speed the higher the output power, the greater the suction, the greater the output pressure (maximum +0.25MPa) and the greater the output flow.
The plugs of the pump are XT60 and it supports 2200~5200mAh 3S battery.
The gasoline pump, equipped with the Foxtech Filler Neck Components Set, is available for Altair-370.
Specification(@ 12V):
Self-priming Suction Force: -0.1 ~ -0.097MPa
Output Pressure: +0.23MPa ~ +0.25MPa
Output Flow: 1850ml/min
Oil Tank Volume: 25L

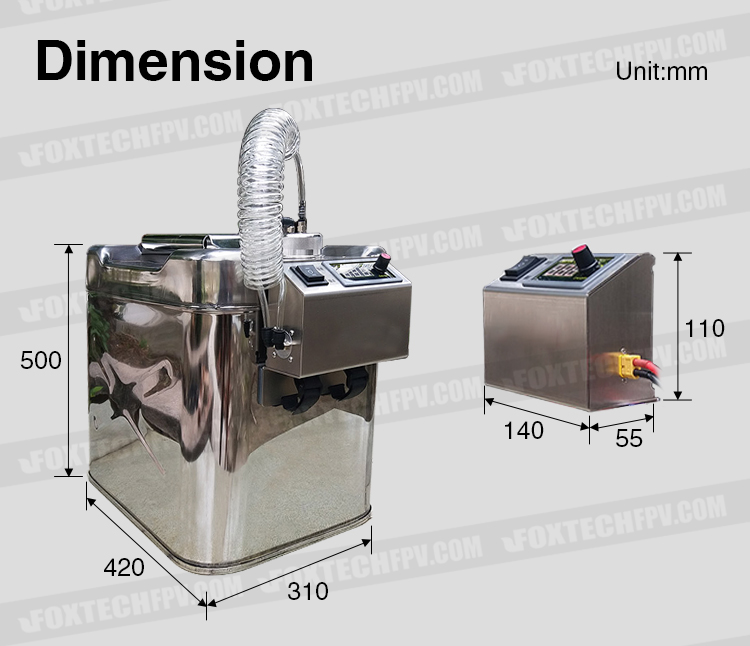

Size
Gasoline Pump: 140*110*55mm
Gasoline Pump&Oil Tank:420*310*500mm
Weight
Gasoline Pump: 1kg
Gasoline Pump&Oil Tank:6.5kg
Features:
-High Suction
-High Flow
-Low Output Pressure
Your Purchase Includes
Gas Pump Package:
1x Gasoline Pump
1x Fuel Hose with Weight
1x Fuel Filter
1x Mounting Plate
1x Fuel Outlet Fitting
Gas Pump&Oil Tank:
1x Gas Pump&Oil Tank Set(excluding battery)
1x Fuel Outlet Fitting
