Foxtech Altair-370 Tandem-wing Hybrid VTOL

Note: The default plug of UP600+ Battery Charger is US plug, but we also provide EU, UK, and AU plugs, please leave a note when ordering to tell us which type do you need.

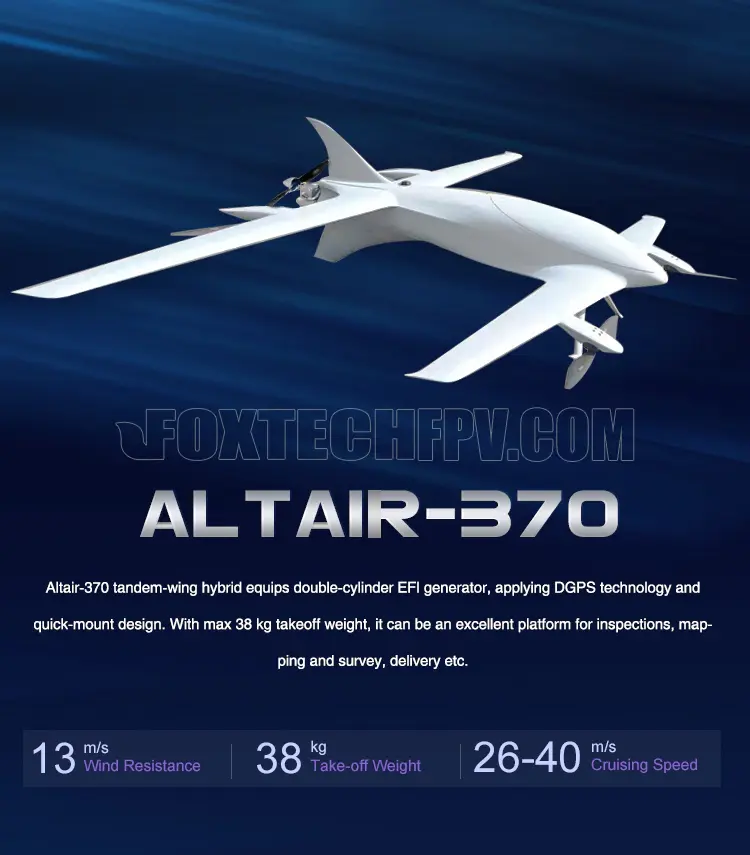

Altair-370 tandem-wing hybrid equips a double-cylinder EFI generator and applies DGPS technology and quick-mount design. With max 10h flight time and max 35kg takeoff weight, it can be an excellent platform for inspections, mapping and survey, search and rescue, etc.

As a tandem-wing UAV, both wings can provide much more lift force than a conventional airplane and promote stability and control at the same time.

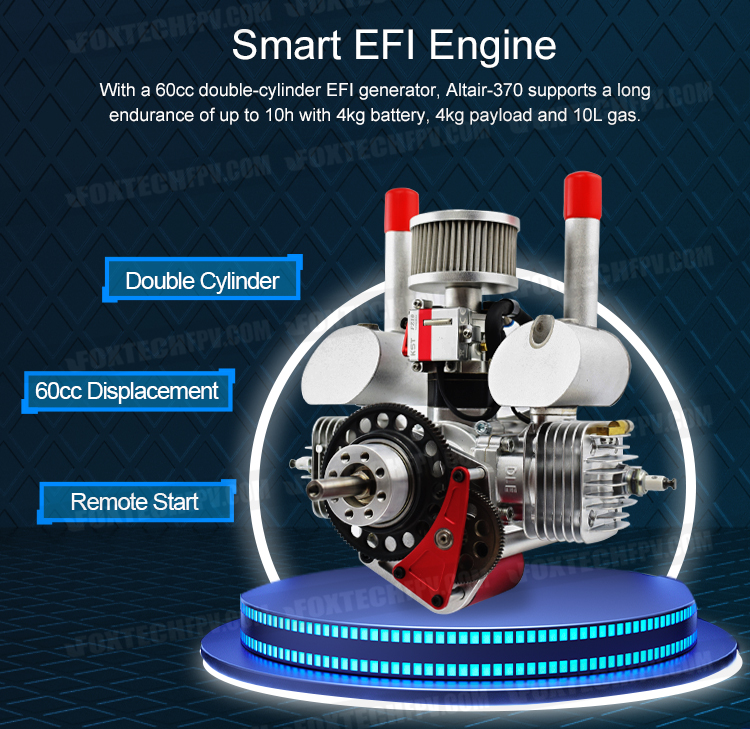

With a 60cc double-cylinder EFI generator, Altair-370 supports a long endurance of up to 10h with 4kg battery, 4kg payload and 10L gas. The Altair-370 also supports remote start, which is critical if the generator stops accidentally in the air. EFI engine can automatically adjust the fuel/air ratio via electronic controls to maintain optimal combustion conditions and determine the precise amount of fuel that the injector needs to deliver. By optimizing air/fuel ratios and ignition timing, EFI engine eliminates random engine stoppages and other problems associated with sub-optimal ratios, so it increases reliability and reduces the time and expense of maintenance.

It also supports DGPS, which helps provide higher locating accuracy and attitude self-correction ability, and because there is no compass, electromagnetic interference won’t be a worry. One of the antennas is hiding inside the tail to reduce wind resistance.

The inner space of Altair-370 is big enough for various mission payloads to carry out various missions. Quick-mount design of the wings also saves time and space during assembling and transportation. Aerodynamic shape also reduces wind resistance and improves efficiency.

Long endurance and max 15kg load capacity make Altair-370 a versatile platform for a wide variety of scenarios, such as inspections, mapping and survey, delivery, etc.

Highlights:

- Tandem wing

- Differential GPS

- EFI engine

- Max 10h endurance

- Max 35kg takeoff weight

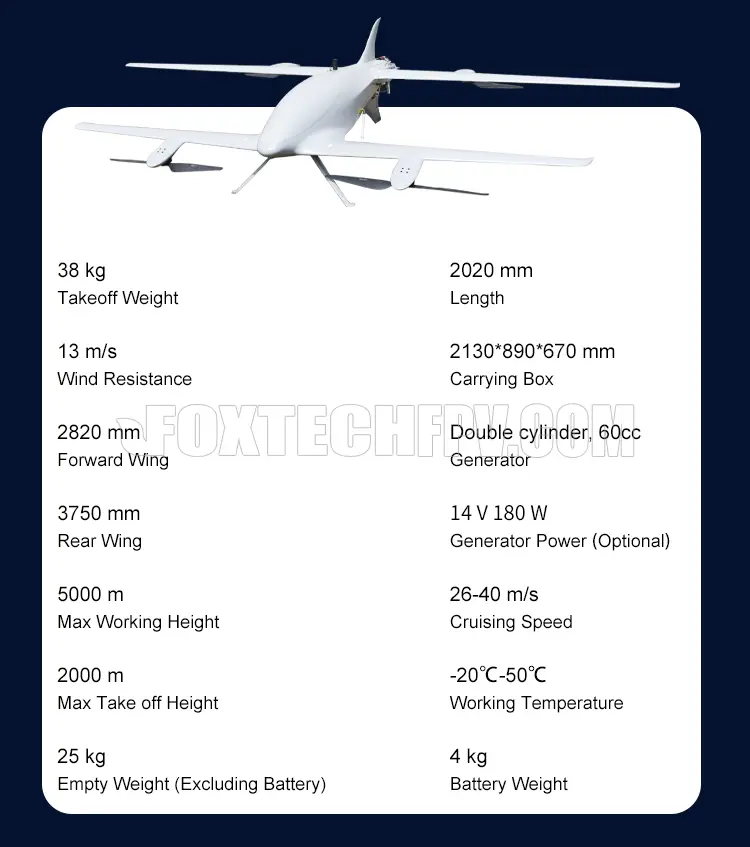

Specification:

Wing Configuration: Tandem Wing

Basic Empty Weight: 20kg

Takeoff Weight: 35kg

Payload Capacity: 15kg(including gas and battery)

Endurance: 10h(4kg battery, 4kg payload, 10L gas)

Wind Resistance: 13m/s

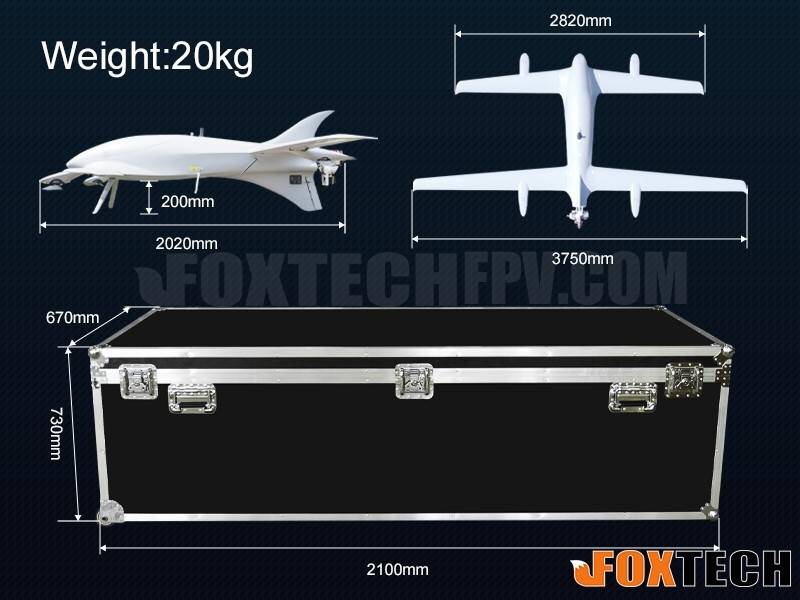

Wingspan:

Forward Wing: 2820mm

Rear Wing: 3750mm

Length: 2020mm

Carrying Box: 2130*890*670mm

Generator: Double cylinder, 60cc

Generator Power: 14V 180W(Optional)

Fuel Tank Capacity: 10L

Cruising Speed: 26-40m/s

Max Working Height: 5000m

Max Take Off Height: 2000m

Working Temperature: -20℃-50℃

Battery Weight: 4kg

Your Purchase Includes (Pixhawk / X7 Pro):

1x Altair-370 frame & propulsion system

1x EFI Engine

1x Fuel Tank

2x 2212 CW propeller

2x 2310 CW propeller

1x 2210 CCW propeller

1x PWM Output Liquid Level Senser

4x 6S 12000mAh Battery

1x UP600 Charger

4x ESC

1x DA16S+ 16-Channel Radio Controller

1x Pixhawk Cube Orange Standard Set
     (or CUAV X7 Pro Flight Controller)

1x Air Speedometer

2x C-RTK 9Ps Sky End Module

2x 3S 5000mAh Battery

1x Accessory Package

1x Assembling, Tuned and Flying Test Service

1x Carrying Case
