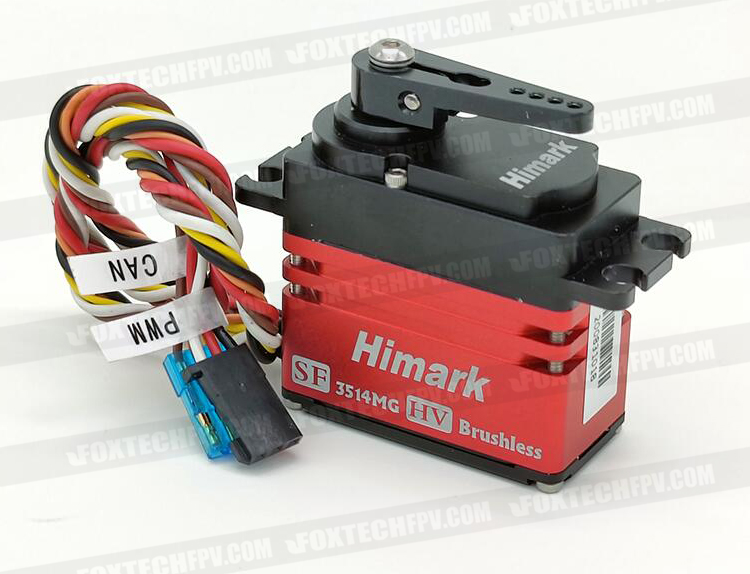

SF3514MG brushless digital servo featuring various data feedback such as voltage, current, temperature and position is designed for VTOL, fixed wings, helicopters or unmanned boats, etc. SF3514MG brushless digital servo supports both PWM and CAN control, and the rated torque is 17.5kg/cm rated torque.
Features:
- Various data feedback: voltage, current, temperature, position (angle).
- Multiple control modes: PWM, CAN
- High efficiency and long-lived brushless motor
- 32-bit microcontroller, high resolution (4096) magnetic encoder potentiometer
- Current overload protection
- CNC aluminum alloy casing, good for heat dissipation.
- Metal gears, steel gears.
- Wide stroke
Specification:
Control Mode: PWM, CAN
No-load Current: 0.2A
Operating Voltage Range: 4.8-8.4V (2S)
Stall Current: 2.5A
No-load Operating Speed: 0.14s/60°

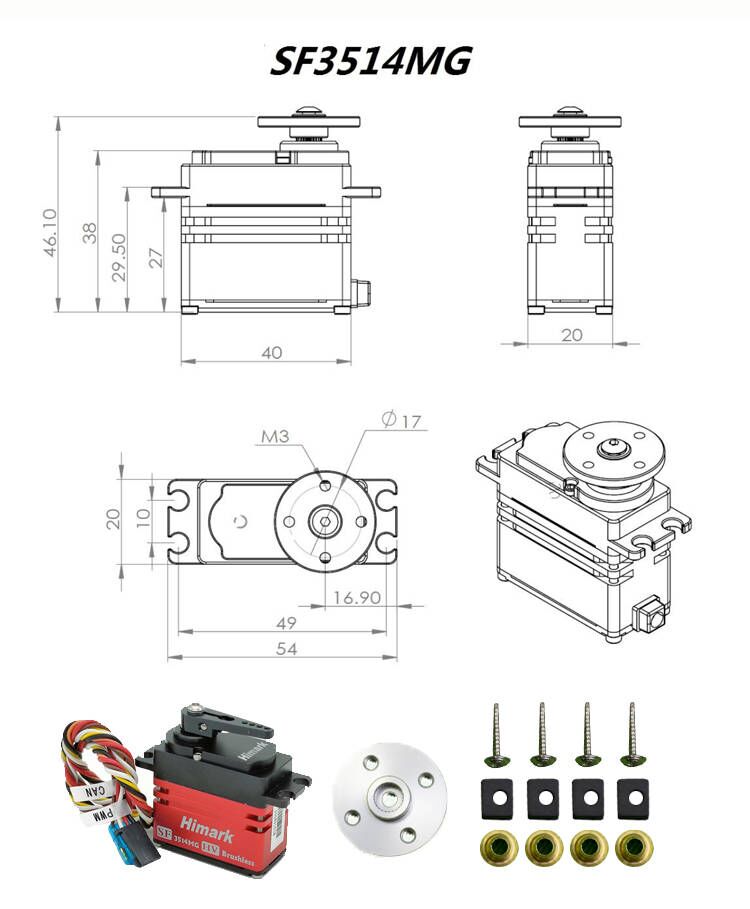

Dimension: 40*20*43mm
Stall Torque: 35kg.cm
Motor Type: Brushless
Standing Torque: 17kg.cm (7.4V)
Potentiometer Type: Magnetic coding
Weight: 83g
Input power line definition:
Brown: GND
Red: +
Yellow: PWM signal
Black: GND
Red: CANL
White: CANH-
Your Purchase Includes:

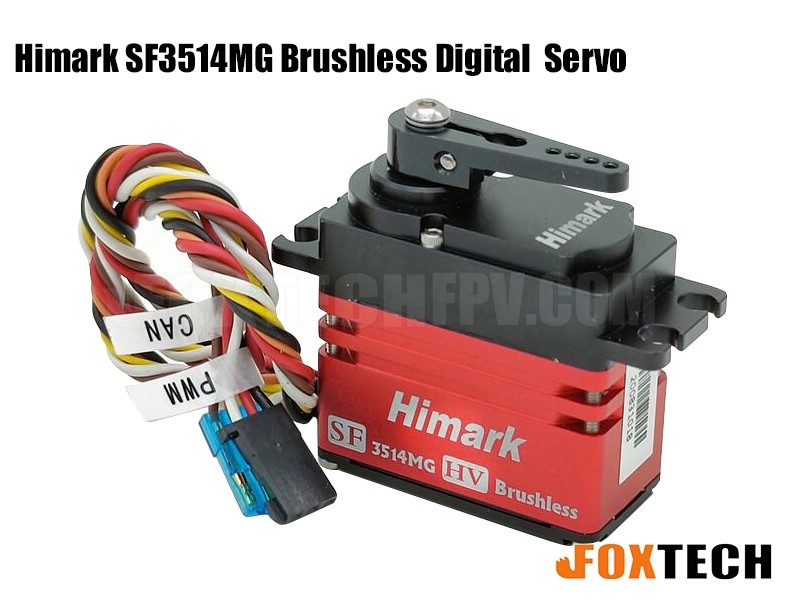

1x Himark SF3514MG Brushless Digital Servo
