Himark SF8008MG HV Brushless Digital Servo

SKU: C209140

Availability: In stock ( 19 )

Weight:150g

$249.00

Reward points Earn your 249 reward points.

Qty:

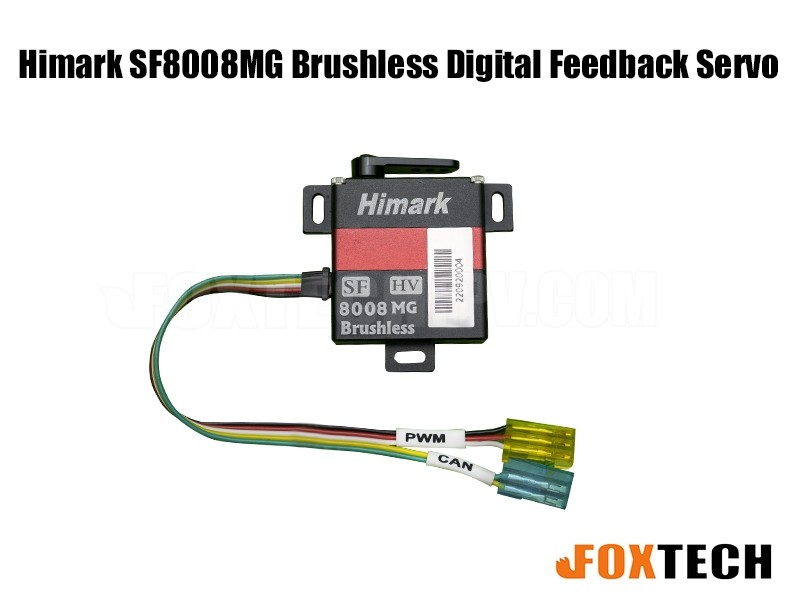

SF8008MG brushless digital servo featuring various data feedback such as voltage, current, temperature and position is designed for VTOL, fixed wings, helicopters or unmanned boats, etc. SF8008MG brushless digital servo supports both PWM and CAN control, and the rated torque is 4kg/cm.



Features:
-Various data feedback: voltage, current, temperature, position (angle).
-Multiple control modes: PWM/CAN
-High efficiency and long-lived brushless motor
-32-bit microcontroller, high resolution (4096) magnetic encoder potentiometer
-Current overload protection
-CNC aluminum alloy casing, good for heat dissipation
-Metal gears, steel gears
-Wide stroke

Specification:
Control Mode: PWM, CAN
No-load Current: 0.3A
Operating Voltage Range: 4.8-8.4V (2S)
Stall Current: 1A
No-load Operation Speed: 0.08s/60°
Dimension: 30*10*33mm
Stall Torque: 8kg.cm
Motor Type: Brushless
Rated Torque: 4kg/cm (7.4V)
Potentiometer Type: Magnetic coding
Weight: 27.5g

Input power line definition:
PWM:
White: PWM Signal +
Red: +
Black: -
CAN:
Red: +
Black: GND
Red: CANL
White: CANH

Your Purchase Includes:
1x Himark SF8008 Digital Servo
