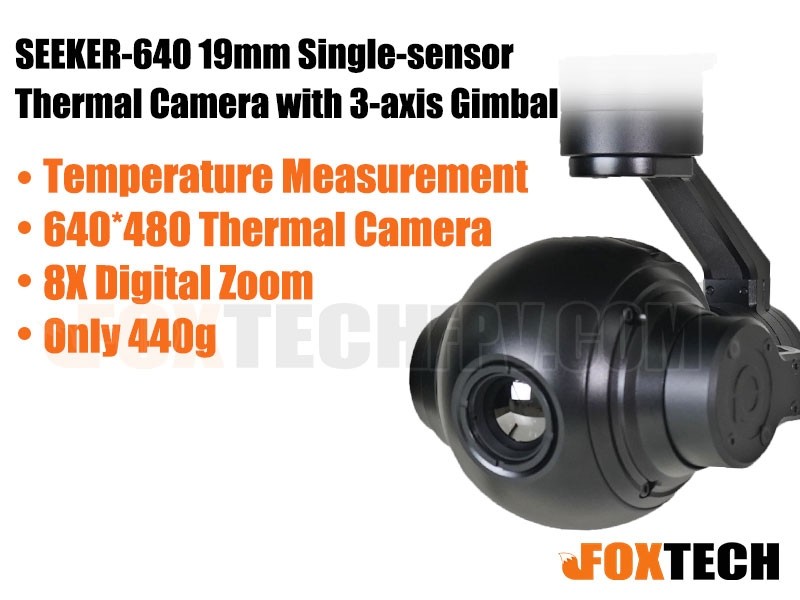

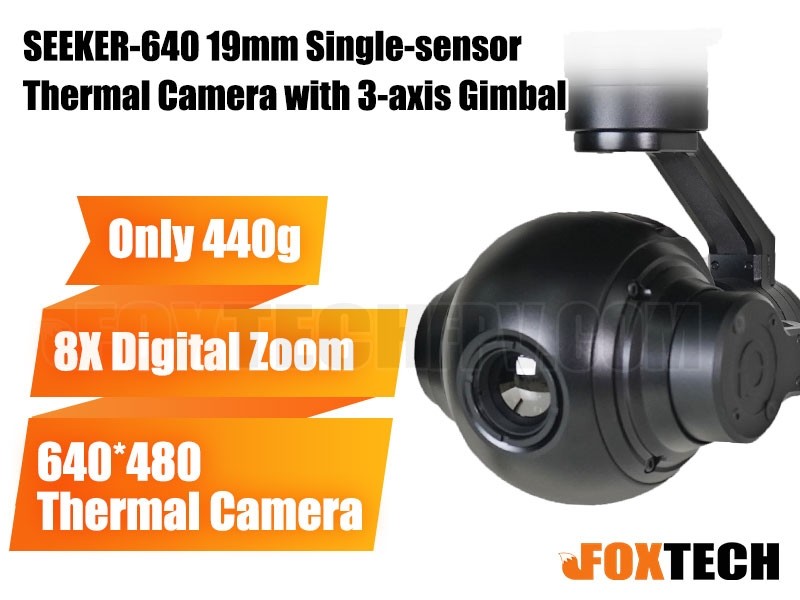

SEEKER-640 19mm Single-sensor Thermal Camera with 3-axis Gimbal

Note:  The video output format of Seeker-640 is micro HDMI 576i 50fps, please select videolink that supports this format or use AV signal.

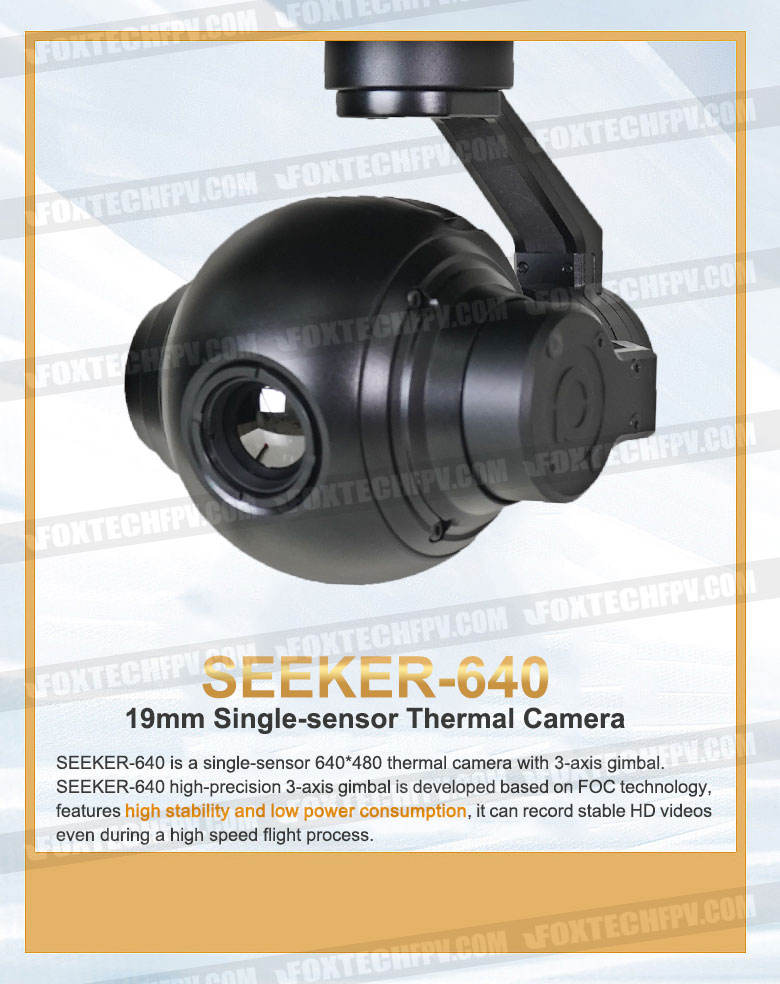

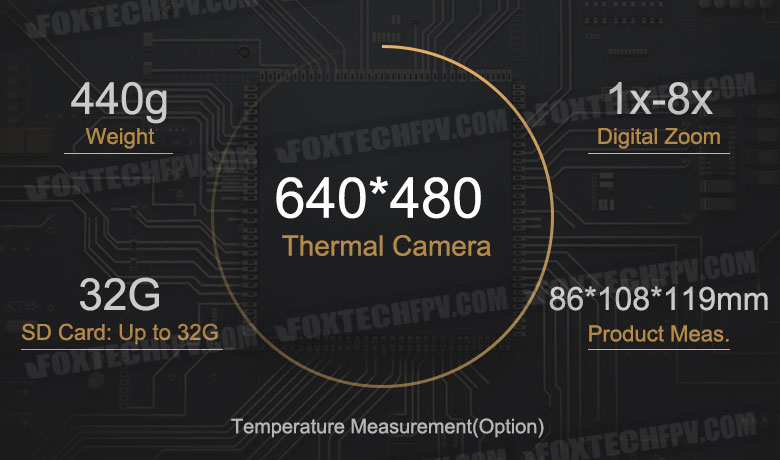

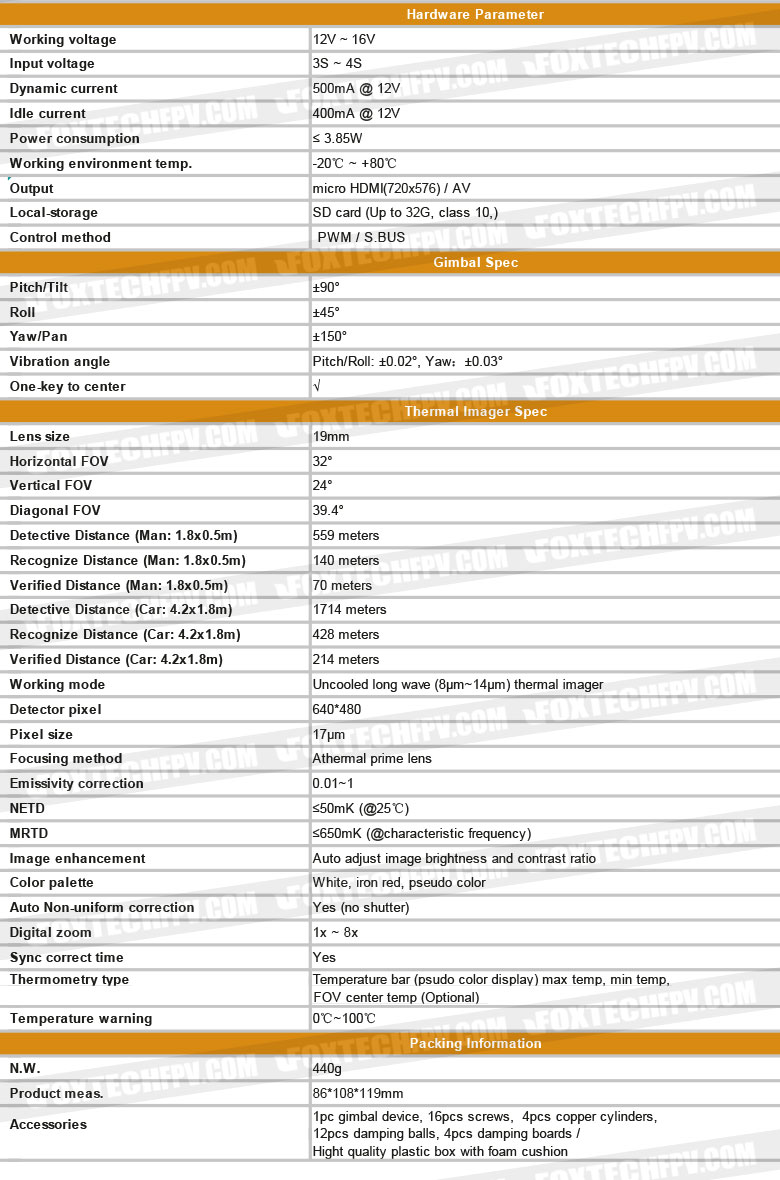

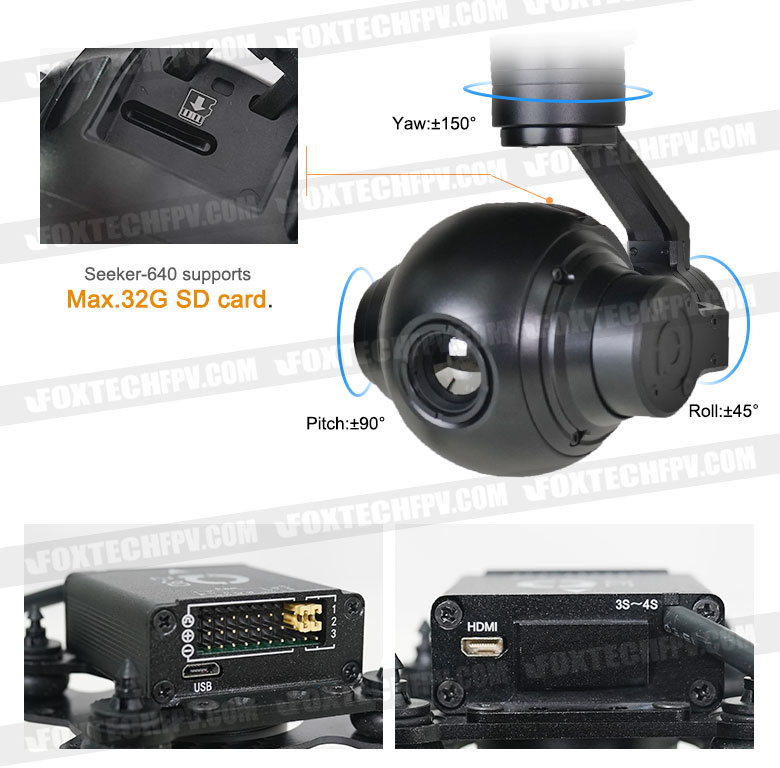

SEEKER-640 is a single-sensor 640*480 thermal camera with 3-axis gimbal, which supports HDMI (720x576) and AV output. SEEKER-640 also has 1X-8X digital zoom, supports temperature measuring function(option), multiple thermal imaging pseudo-color pattern and max.32G SD card.

SEEKER-640 high-precision 3-axis gimbal is developed based on FOC technology, features high stability and low power consumption, it can record stable HD videos even during a high speed flight process. The high-precision 3-axis gimbal offers 2 smart speed modes: FAST speed and LOW speed. Fast speed mode is used for small zooming range, low speed mode is used for large zooming range.

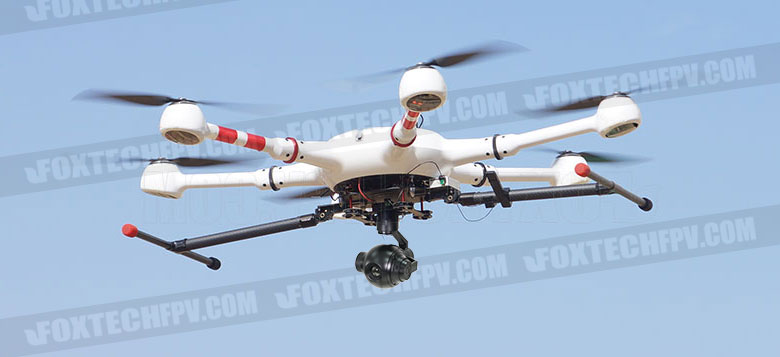

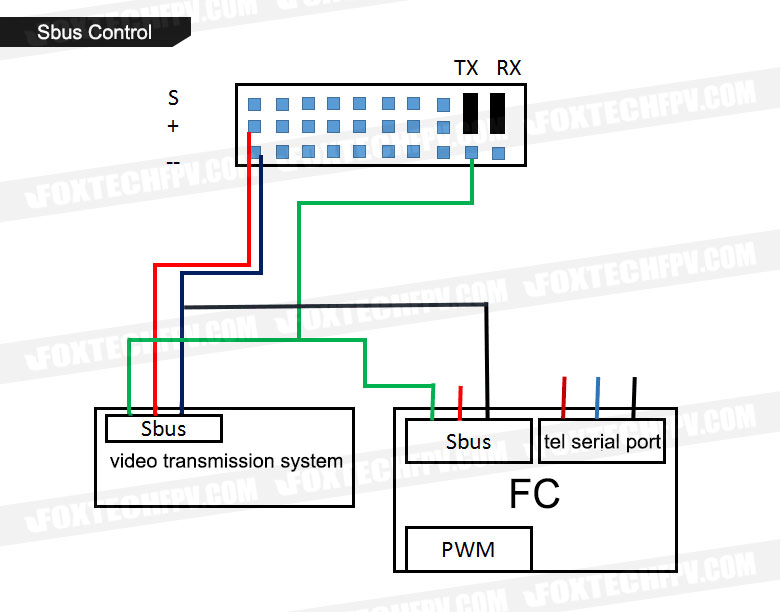

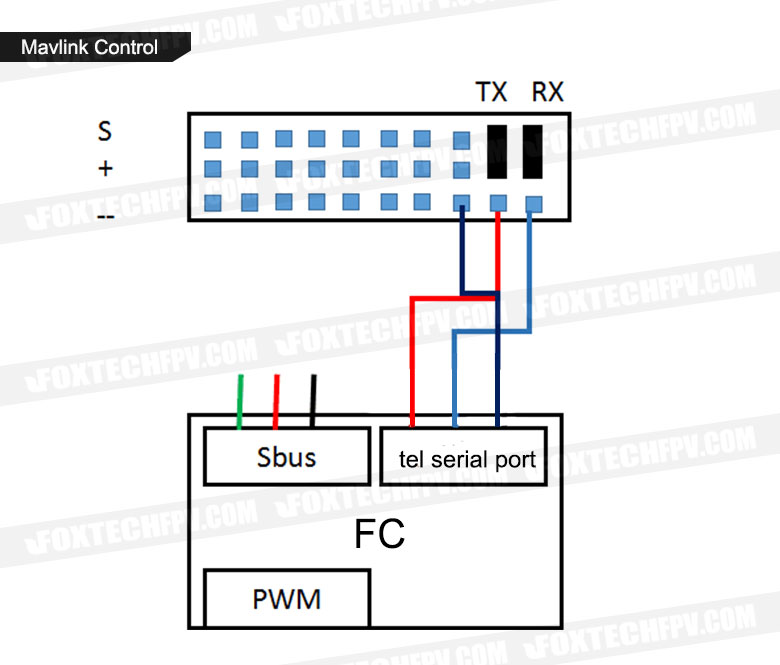

SEEKER-640 features small volume, light weight, only 440g, that making it easy to mount on a variety of fixed wings and multirotors  like Nimbus VTOL, Baby Shark VTOL, GAIA 100 hexacopter and GAIA 160s etc. It can be easily operated through GCS to perform actions like one-key to zoom or one-key centering. The gimbal supports PWM,S.BUS control and serial command control.

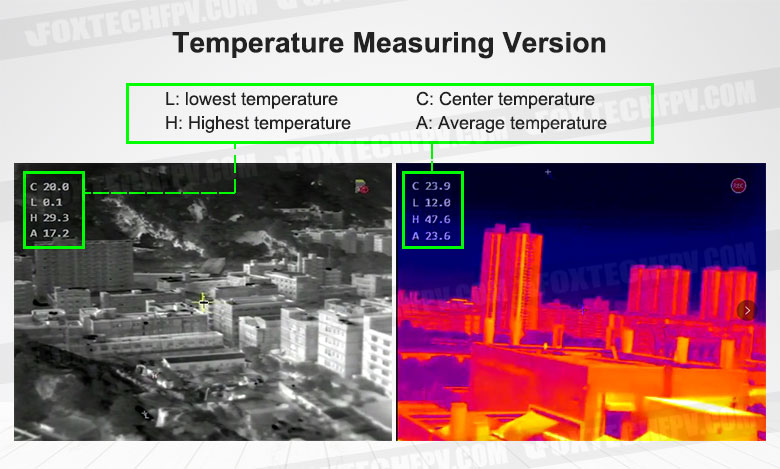

With the temperature measuring function, SEEKER-640 can be applied in many fields like solar panels inspection, power line inspection, crop protection, fire fighting and searching etc.


Your Purchase Includes:
1x Foxtech SEEKER-640 19mm Single-sensor Thermal Camera with 3-axis Gimbal

Manual Download
Sbus Setting Manual
Serial Command Communication Protocol
