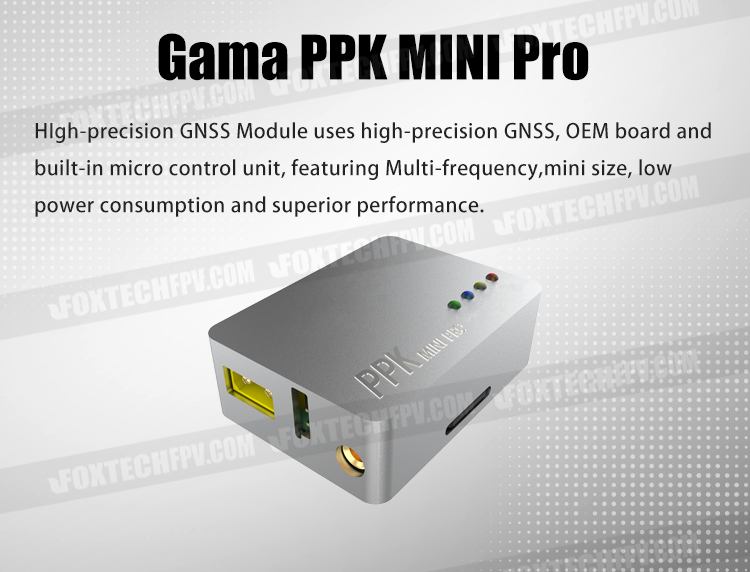

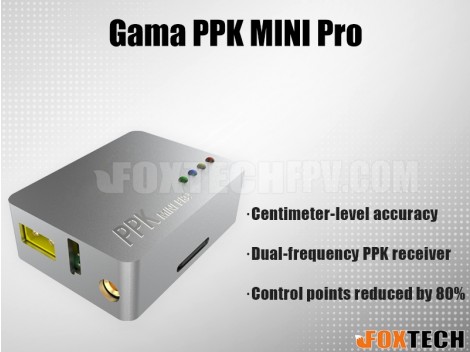

Gama PPK MINI Pro, using high-precision GNSS, OEM board, is specifically designed for aviation program, which features mini size, and low power consumption. Gama PPK MINI Pro has a data sampling rate of 10Hz by using built-in micro control unit, which features low power consumption. With Gama PPK MINI Pro, concurrent reception of almost all kinds of GNSS satellite signals can be achieved(BeiDou, GPS, GLONASS, WAAS, SBAS).

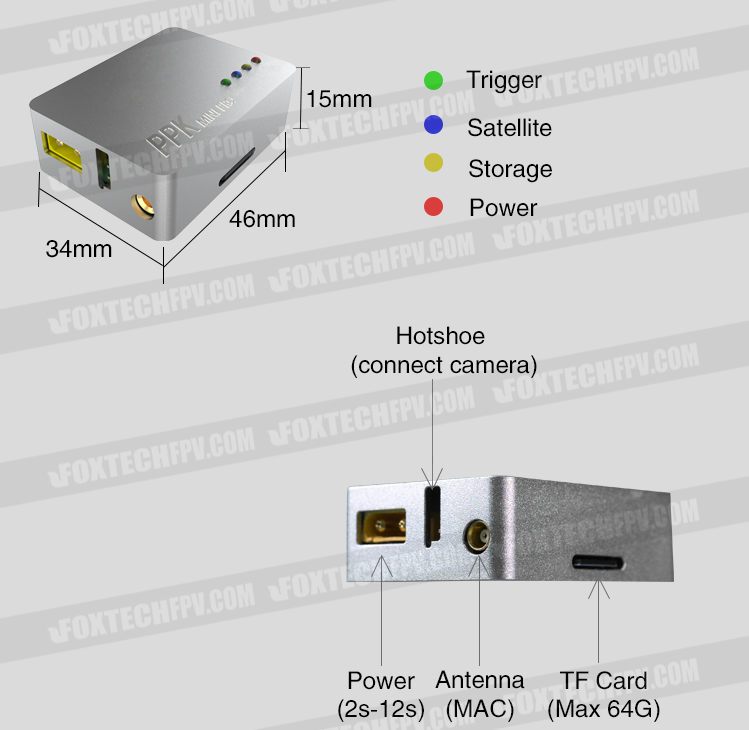

| Basics | Dimensions | 46*34*15mm |
| Weight | 28g | |
| Operating temperature | -30℃ ~+75℃ | |
| GNSS | Signal |
GPS/QZSS L1 GLONASS G1 Beidou B1 Galileo E1 SBAS |
| Number of channels | 72 | |
| Update rates | 10Hz/5Hz | |
| Electrical | Input voltage | 8V-60V(2S-12S) |
| Antenna voltage | 5V | |
| Avg. consumption | 25mA | |
| Data | Internal storage | 16GB |
| Data format | Rinex | |
| Connectivity | Antenna Interface | Mcx |
| Interface | Event, TF card | |
| Led | Satellite, storage, trigger, power | |
| Positioning accuracy | Horizontal | 2cm+1ppm |
| Vertical | 4cm+1ppm |
