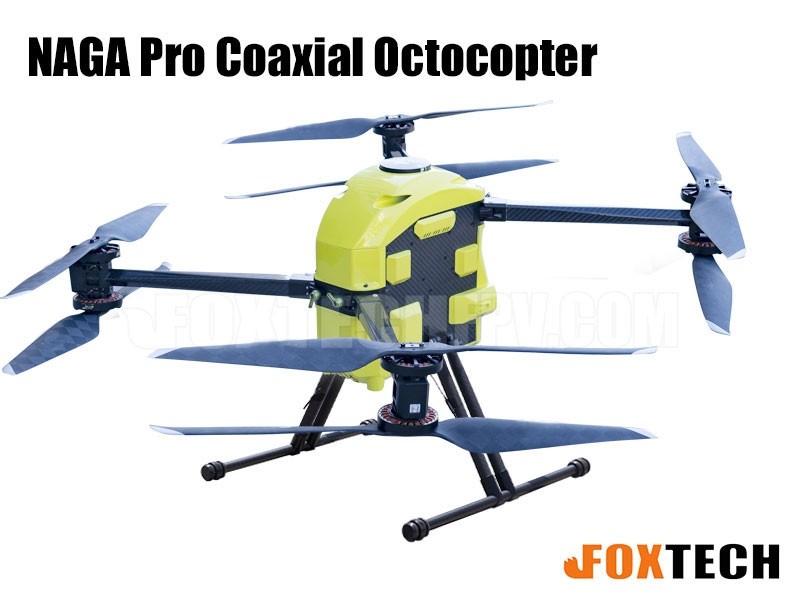

Foxtech NAGA Pro Coaxial Octocopter

SKU: S210622

Availability: In stock

Weight:1g

$8,989.00

Reward points Earn your 8989 reward points.

$8,989.00
Qty:

NAGA Pro coaxial octocopter combines a rugged folding design and multiple configurability to work as a solution for a variety of industrial applications, such as mapping, inspection and delivery.



The highlight of the co-axial design is to effectively increase the load capacity while keeping the drone size small. And if one motor or propeller stops running, the whole octocopter system will not be affected, which is still able to land safely.



5 options can be chosen, including RTF combo, delivery combo, standard mapping combo, 3D mapping combo, and inspection combo, meeting the requirements of different tasks.



What’s make the inspection combo special is that it has a quick-detach adapter. In addition to mounting an EH314 gimbal camera, it is interchangeable with different mapping cameras to quickly achieve multiple functions.



Compatible Payloads:

- Delivery box with 5KG max payload

- 4K EH314 Gimabl Camera for inspection

- 24MP Map 02 for orthophotography

- 120MP Oblique Camera for 3D Mapping/orthophotography

Main Features:

- High&low arm design makes the drone accelerate rather quickly

- Thanks to its folding arms, NAGA Pro is very convenient to transport

- Navigation light system is helpful in various situations

- High-efficiency cooling system

- Landing gear is adjustable so that different types of equipment can be mounted

- Dual-battery system ensures longer flight time, which boosts up to 80 minutes without payload and 40 minutes with 5kg payload

- Customization service is available to suit users’ demands





Your Purchase Includes:

RTF Combo

1x NAGA Pro Frame

8x Motor and ESC

4x (pair) 22 inch Carbon Fiber Propeller

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x MX16 All-in-one Portable Ground Control Station

2x 7S 28000mAh Li-ion Battery

1x Battery Charger

1x Carrying Case

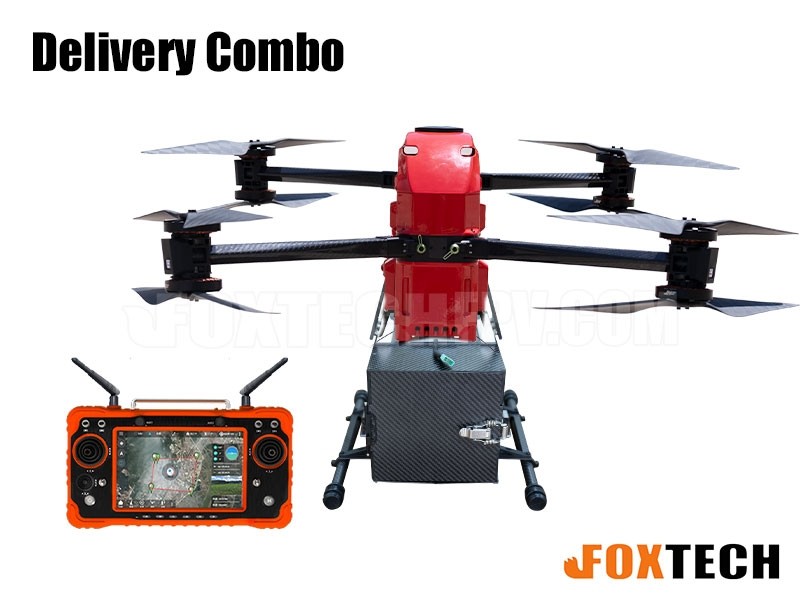

Delivery Combo

1x NAGA Pro Frame

8x Motor and ESC

4x (pair) 22 inch Carbon Fiber Propeller

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x MX16 All-in-one Portable Ground Control Station

1x Cargo Carrying Box

2x 7S 28000mAh Li-ion Battery

1x Battery Charger

1x Carrying Case

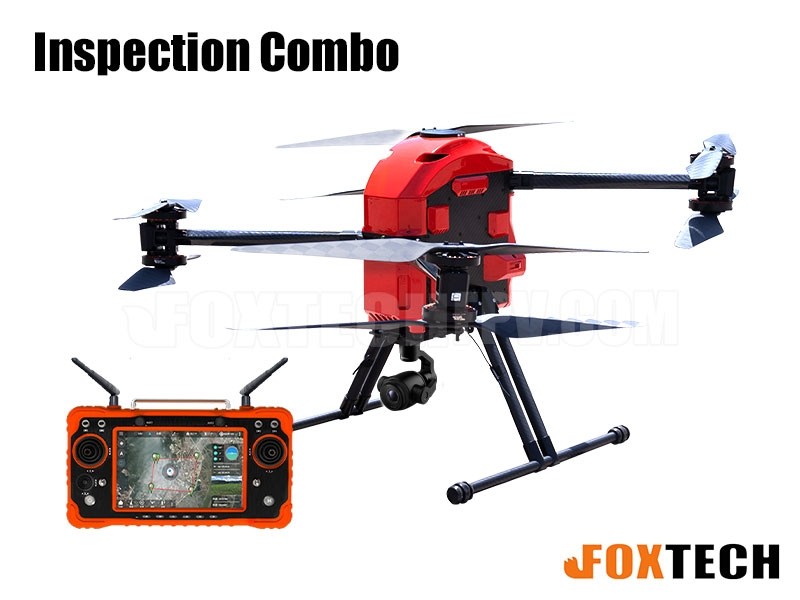

Inspection Combo

1x NAGA Pro Frame

8x Motor and ESC

4x (pair) 22 inch Carbon Fiber Propeller

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x MX16 All-in-one Portable Ground Control Station

1x EH314 MINI 4K Zoom Gimbal Camera

2x 7S 28000mAh Li-ion Battery

1x Battery Charger

1x Carrying Case

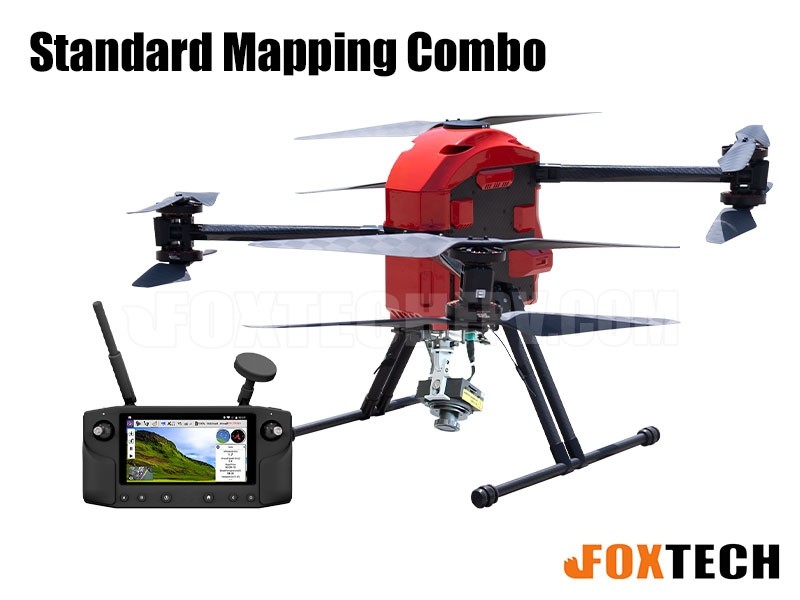

Standard Mapping Combo

1x NAGA Pro Frame

8x Motor and ESC

4x (pair) 22 inch Carbon Fiber Propeller

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x Herelink 2.4GHz Long Range HD Video Transmission System

1x Map-02 Mapping Camera with 25mm Lens

1x Here+ RTK Base

2x 7S 28000mAh Li-ion Battery

1x Battery Charger

1x Carrying Case



3D Mapping Combo

1x NAGA Pro Frame

8x Motor and ESC

4x (pair) 22 inch Carbon Fiber Propeller

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x Herelink 2.4GHz Long Range HD Video Transmission System

1x Oblique Mapping Camera

1x Here+ RTK Base

2x 7S 28000mAh Li-ion Battery

1x Battery Charger

1x Carrying Case

Diagonal Wheelbase: 815mm

Unfolded Dimensions: 960mm*960mm*450mm

Folded Dimensions: 400mm*200mm*900mm

Empty Weight: 4kg (without batteries)

                        10kg (with batteries)

Suggested Max Payload: 5kg

Max Take-off Weight: 15kg

Operating Frequency: 2.4-2.484Ghz

RF Power: [email protected]/23DBFCC

Flight Time: 80min (no payload)

                   40min (5kg payload including box)

GNSS: GPS+GLONASS+Beidou

Hovering Accuracy Range: Vertical:

                                            ±0.1 m

                                            ±0.5 m (GPS enabled)

                                            ±0.1 m (RTK enabled)

                                            Horizontal:

                                            ±0.3m

                                            ±1.5 m (GPS enabled)

                                            ±0.1 m (RTK enabled)

RTK Positioning Accuracy: When RTK enabled and fixed

                                           2cm(Vertical), 2cm(Horizontal)

Max Angular Velocity: Pitch: 300°/s, Yaw: 100°/s

Max Pitch Angle: 45°(S Mode)

Max Ascent Speed: 5m/s

Max Descent Speed: 3m/s

Max Level Speed: 18M/S(GPS Mode), 35M/S(S Mode)

Max Service Ceiling: 7000m(1kg payload, 11.5kg takeoff weight)

Max Wind Resistance: 16M/S

Ingress Protection Rating: IP65

Battery: 7S 28000mah Li-ion battery

Operating Temperature: -25℃ to 60℃
