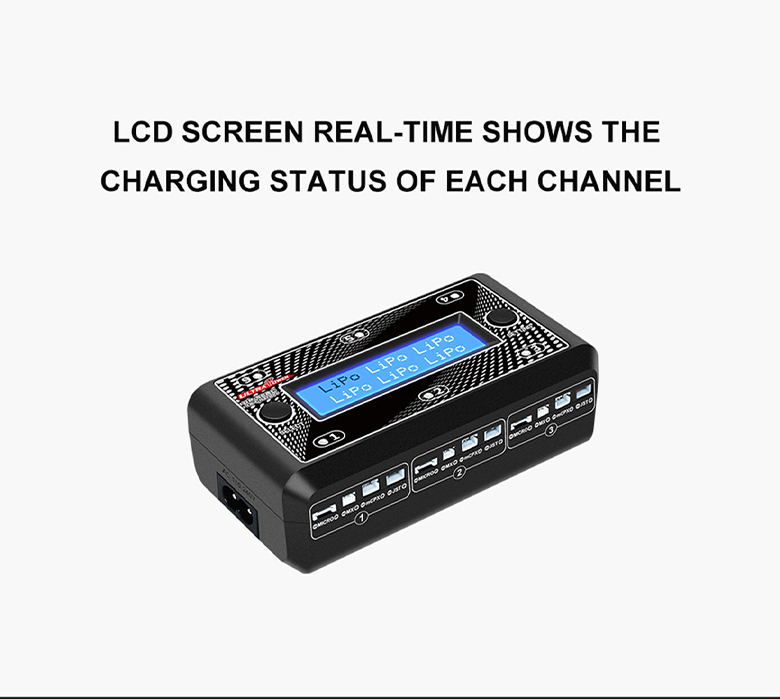

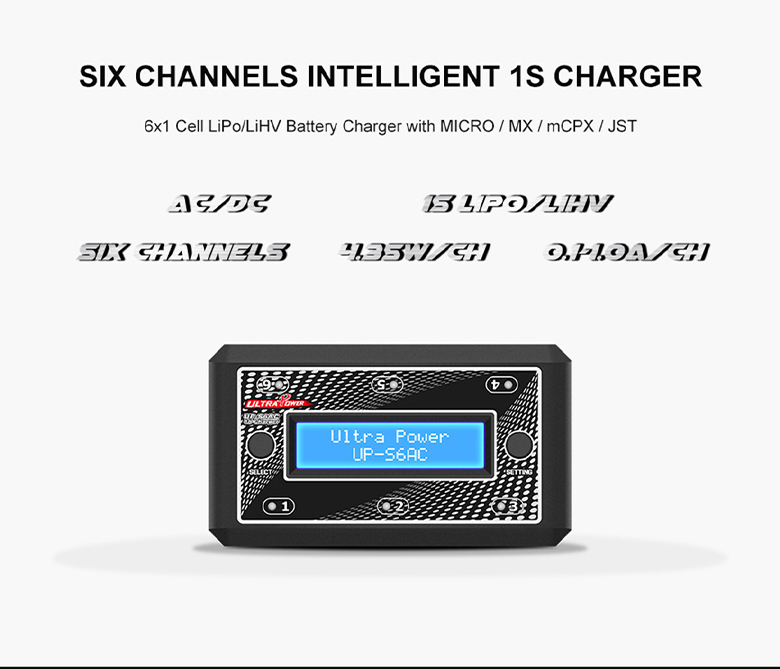

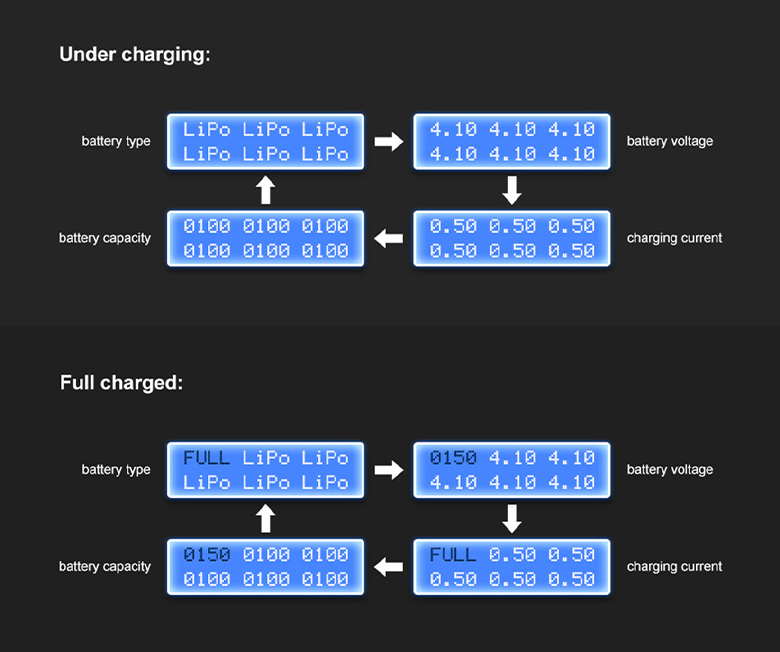

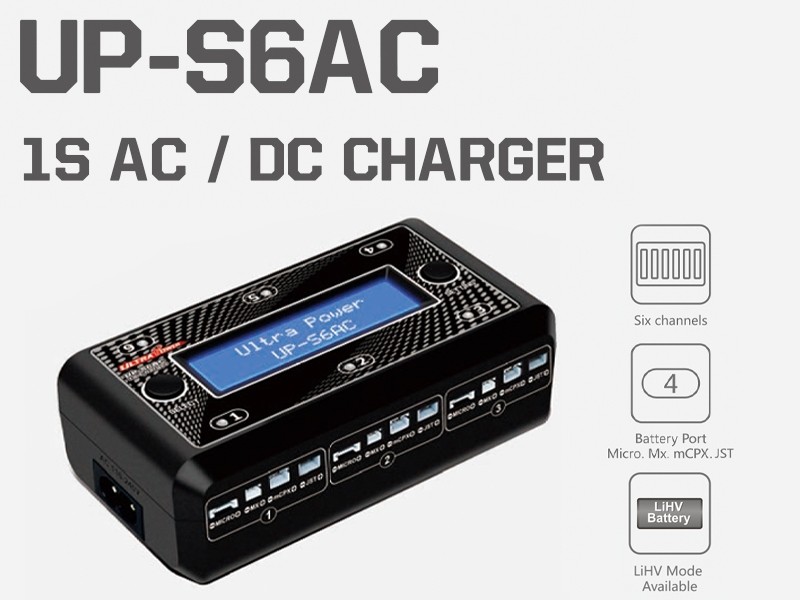

UP-S6AC is a selectable dual input 1S LiPo/LiHV battery charger, with six independent but identical channels, can charge 6pcs 1S LiPo/LiHV battery simultaneously. The charging current is adjustable from 0.1-1.0A. Each channel can deliver 4.35W. Four battery connectors can be selectable: Micro, MX , JST, mCPX. The battery type, cell voltage, charging current and battery capacity can be displayed on the LCD display screen.
Note: There are different types of plugs to choose, such as UK, US, EU, AU, etc. If you need other plug types, please contact us by live chat or email us at [email protected].
Features:
1.Six independent ports can be used simultaneously.
2.Four different battery connectors for each port.
3.LCD,LED and audible sound indicate charging status.
4.Adjustable charge current from 0.1A-1.0A each port.

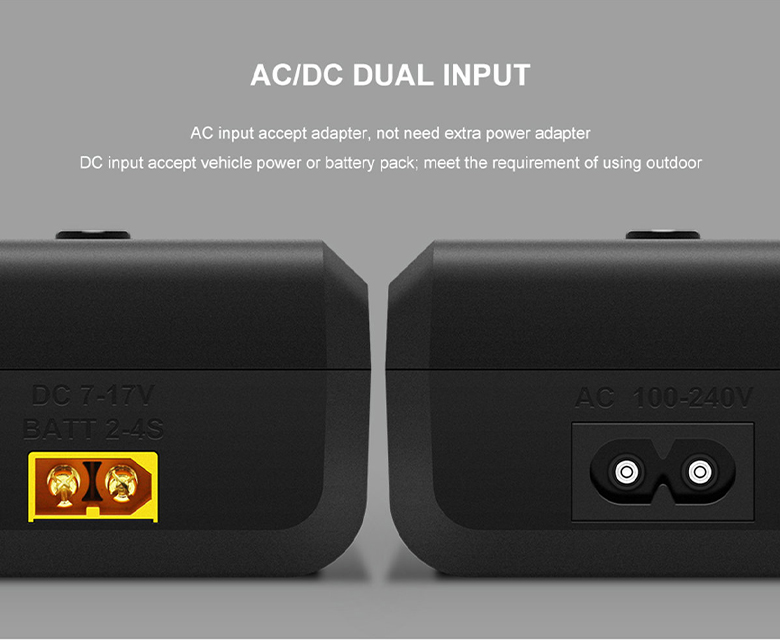

5.Selectable input power: AC input or DC input.
6.Maximum protection: Battery reverse voltage protection, battery over-voltage protection,and DC input voltage reverse polarity protection.

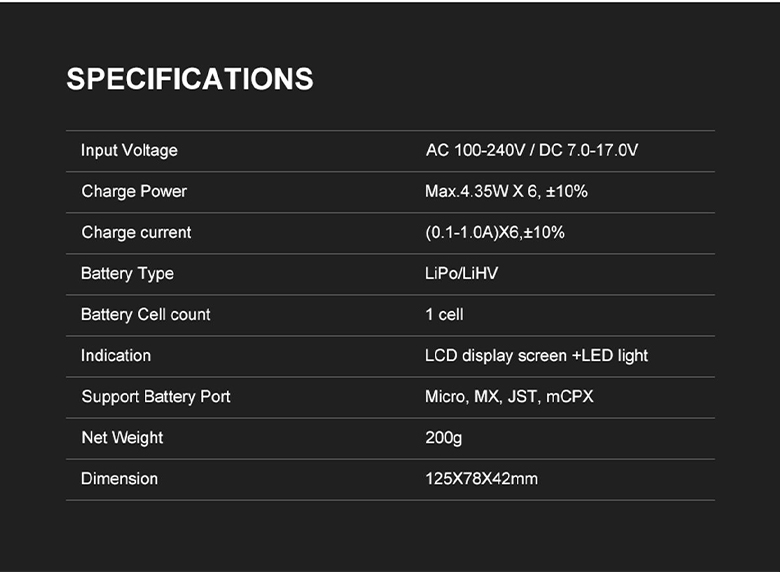

Specifications:
Input voltage: AC 100-240V, DC 7.0V-17.0V
Charge power: Max. 4.35W x6, ±10%
Charge current: (0.1-1.0A) x6, ±10%

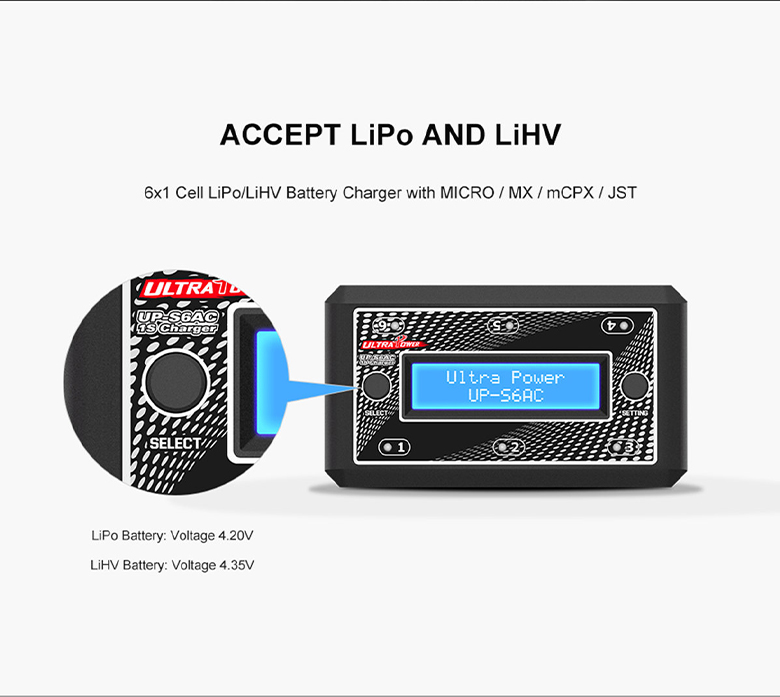

Battery type: LiPo/LiHV
Battery cell count: 1cell
Indication: LCD display screen+LED light

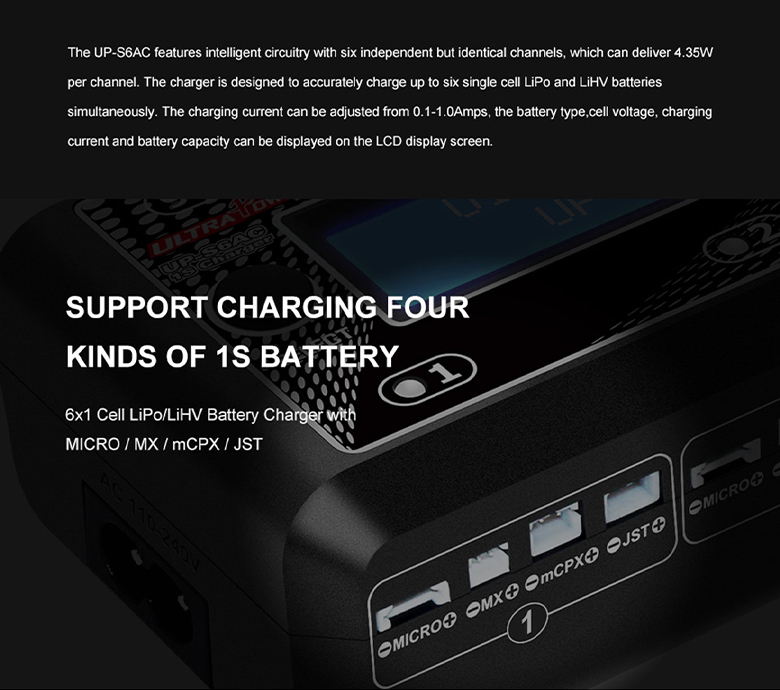

Support battery port: Micro, MX, JST, mCPX
Dimensions:125x78x42mm
Weight: 200g
Your Purchase Includes:
1 x Ultra Power UP-S6AC Charger
