The UP200 DUO is a dual channel charger with two independent circuits, which can charge two different kinds of batteries simultaneously. It can support power distribution in AC mode total power 100W(CH1+CH2=100W). The charge power in DC mode works in 2X100W.
Note: There are different types of plugs to choose, such as UK, US, EU, AU, etc. If you need other plug types, please contact us by live chat or email us at [email protected].
Features:
•Terminal voltage control in 4.18V to 4.30V
•Delta-Peak sensitivity (NiMH/NiCd)
•Individual cell balancing charge & discharge
•Battery meter function
•One button control factory setting
•Data storage (10 profiles in memory)
•Two USB Ports for PC Control & Firmware Upgrade

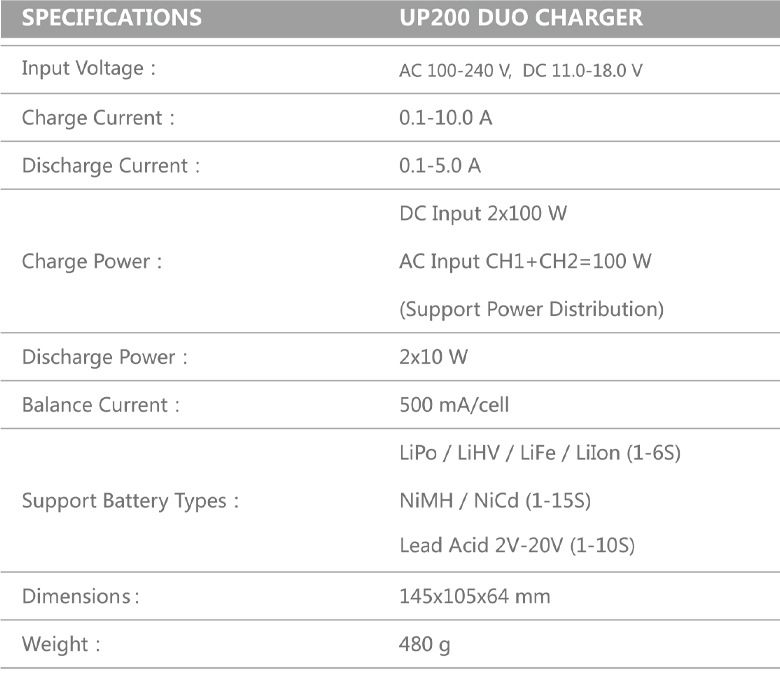

Specifications:
Input voltage: AC 100-240V, DC 11.0-18.0V
Charge current: 0.1-10.0A
Discharge current: 0.1-5.0A
Charge power: DC Input 2 x 100W
AC Input CH1+CH2=100W
(Support Power Distribution)
Discharge power: 2x10W
Balance current: 500mA/cell
Support battery types: LiPo/LiHV/LiFe/LiIon/ (1-6 S)
NiMH/NiCd (1-15S)
Lead Acid 2V-20V (1-10S)
Dimensions: 145x105x64mm
Weight:480g
Your Purchase Includes:
1 x Ultra Power UP200 DUO Charger
