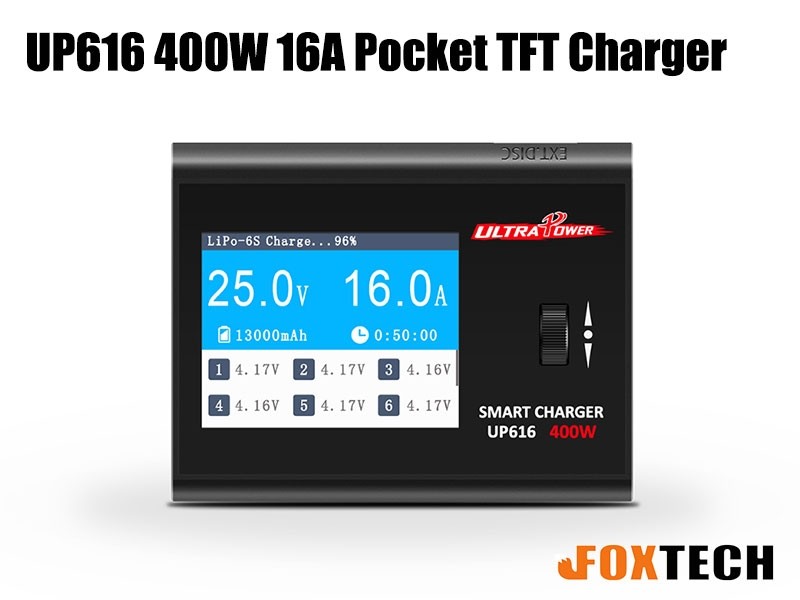

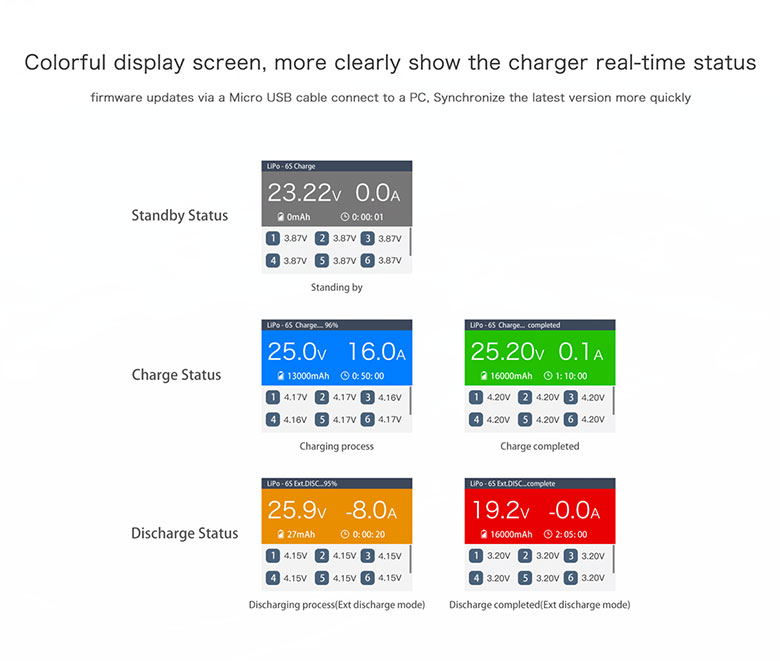

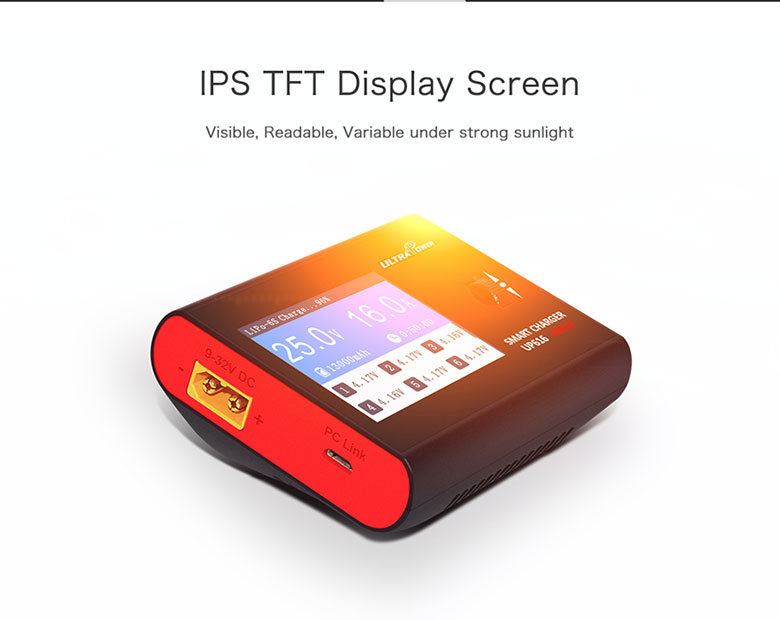

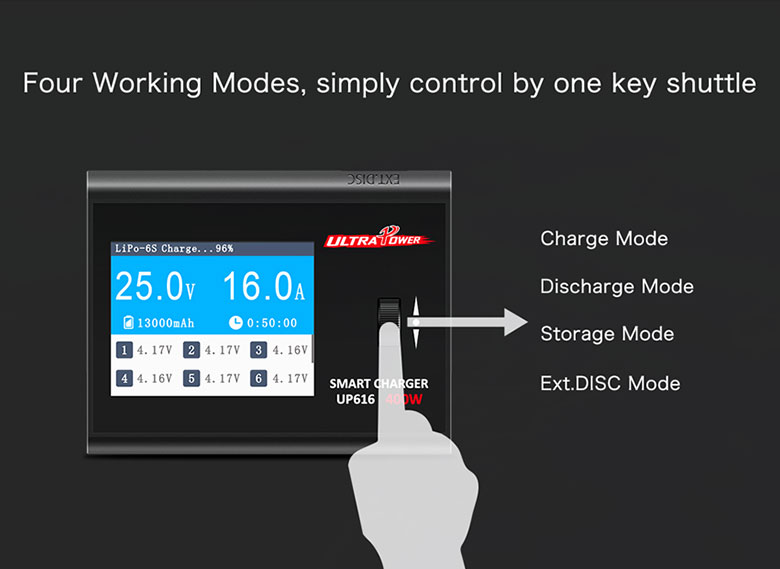

Ultra Power UP616 is simpler, smaller but more powerful. It has four working modes, charge mode, discharge mode, storage mode and Ext.DISC mode, which is simply controlled by one key shuttle. The strong chip makes the UP616 in a high performance and stable quality. UP616 has a new special function, that is external discharge function. The colorful display screen more clearly shows the charger real-time status.
Note: There are different types of plugs to choose, such as UK, US, EU, AU, etc. If you need other plug types, please contact us by live chat or email us at [email protected].
Features:
•Support external discharging at Max.200W, 15A.
•Delta-Peak sensitivity (NiMH/NiCd)
•Individual cell balancing charge & discharge
•Battery meter function
•One button control factory setting

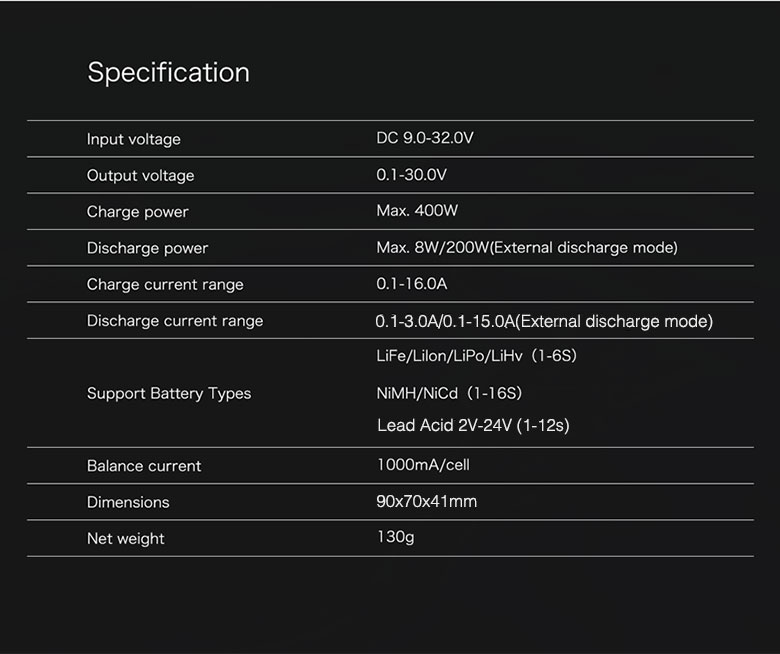

Specifications:
Size: 90x70x41 mm
Weight : 130 g
Input Voltage : DC 9.0-32.0 V
Output Voltage : 0.1-30.0 V
Charging Current : 0.1-16.0 A
Discharge Current : 0.1-3.0A/0.1-15.0 A(External discharge mode)
Charge Power : Max.400 W
Discharge Power : Max.8 W / 200 W (External Discharge Mode)
Balance Current : Max.1000 mA/cell
Support Battery Types : LiPo/ LiHV / LiFe/ LiIon (1-6S)
NiMH / NiCd (1-16S)
Lead Acid 2V-24V (1-12S)
Your Purchase Includes:
1x Ultra Power UP616 Pocket TFT Charger
