900M/2.4G Dual Band 12dbi Outdoor Log Periodic Antenna-RPSMA

SKU: 711073

Availability: In stock ( 8 )



Reward points Earn your 20 reward points.

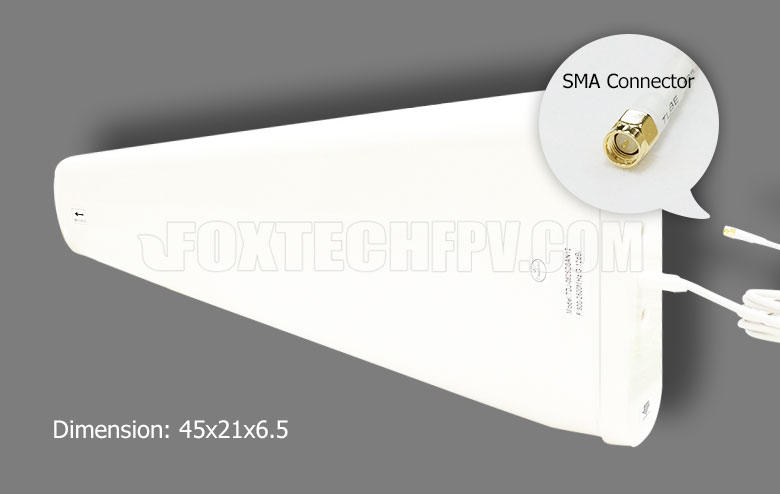

This antenna is a high performance wide band log periodic antenna designed to operate continuously from 800MHz to 2500MHz.This Wideband design eliminates the need to purchase different antennas for each frequency. The broadband characteristics of the antenna enable it to operate over a very wide frequency range. This antenna features 12dBi of gain and a 50 degree vertical beam width.



Gain: 12dBi
Horizontal Beamwidth: 65°/50°
Vertical Beamwidth: 50°/40°
F/B Ratio: ≥18
VSWR: ≦1.5
Nominal Impedance: 50Ω
Polarization: Vertical
Maximum Power: 100W
Connector: SMA/RPSMA
Weight: 965g
Size: 45x21x6.5cm


-800 to 2500MHz band
-Broadband, low VSWR
-Sealed radome for all weather operation
-Supplied with mast down-tilt bracket
-Good defense ability
-Impact resistance, waterproofing, anticorrosion, etc

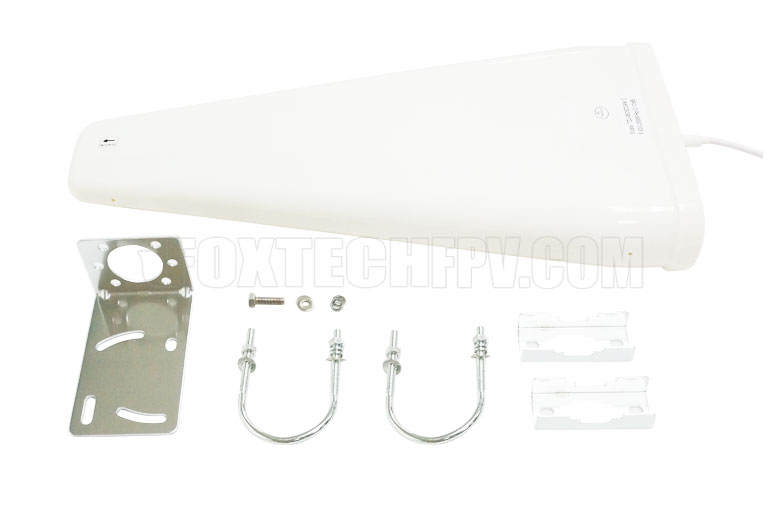

Your Purchase Includes:

1x Antenna
1x Pack of installation accessories
