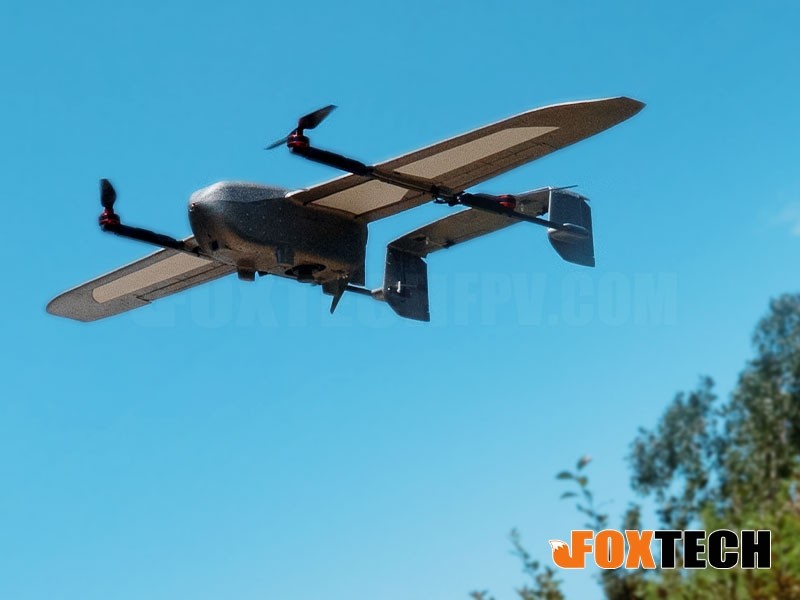

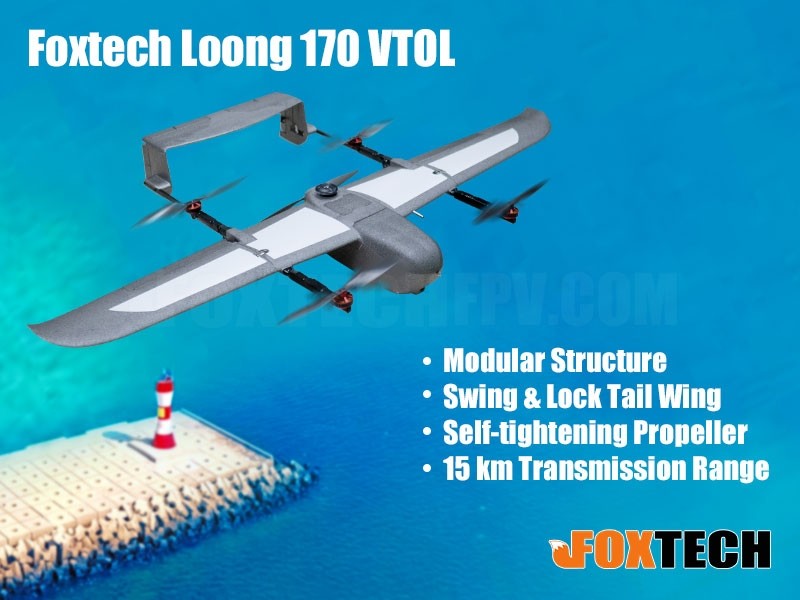

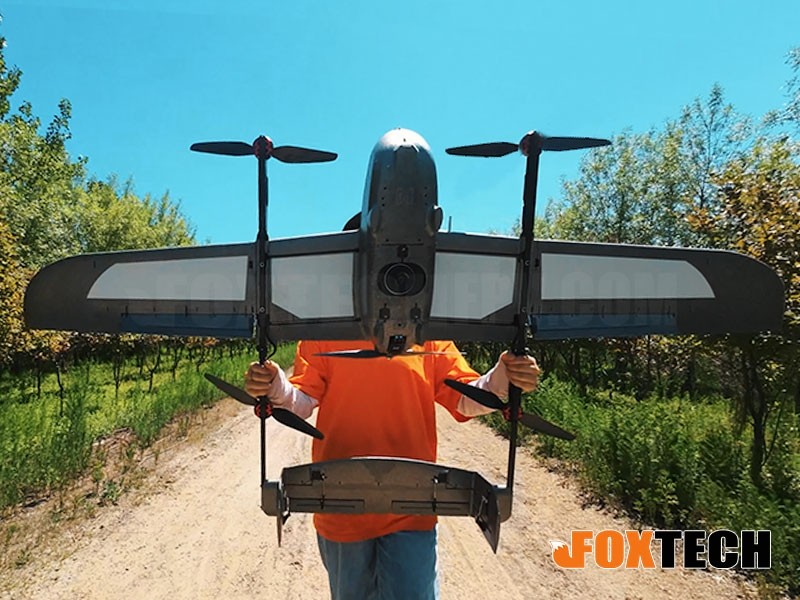

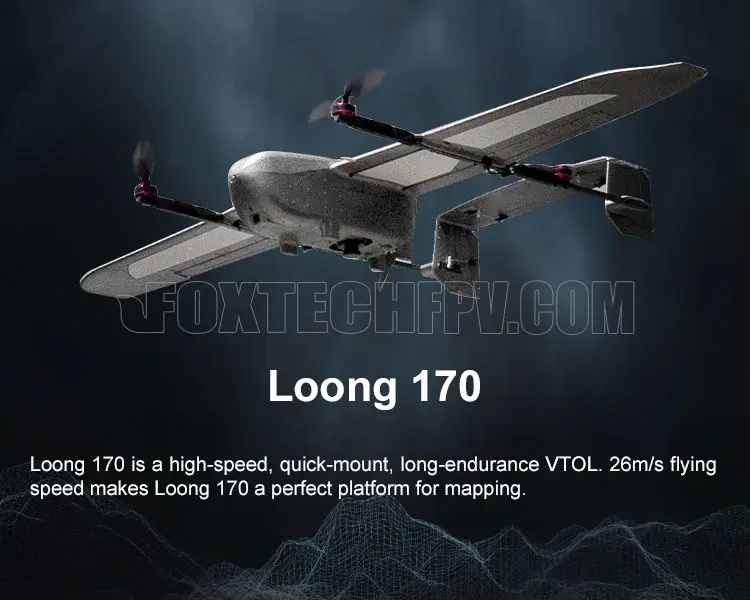

Loong 170 is a high-speed, quick-mount, long-endurance VTOL. 26m/s flying speed and 100min flight time makes Loong 170 a perfect platform for mapping and inspection.
·Sturdy & Durable Material
Loong 170 uses EPP material which features high strength to weight ratio, impact resistance, thermal insulation, water and chemical resistance, making the drone lighter and stronger. The basic empty weight of Loong 170 is only 2kg.

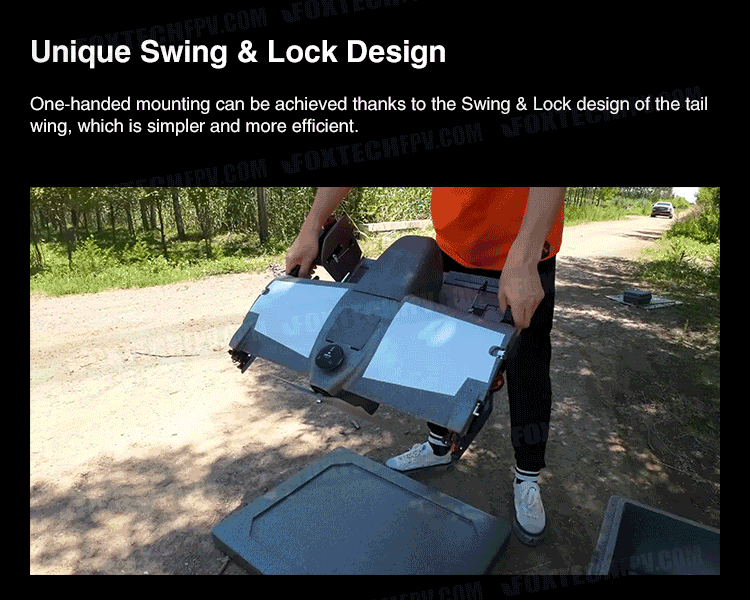

·Unique Swing & Lock Design

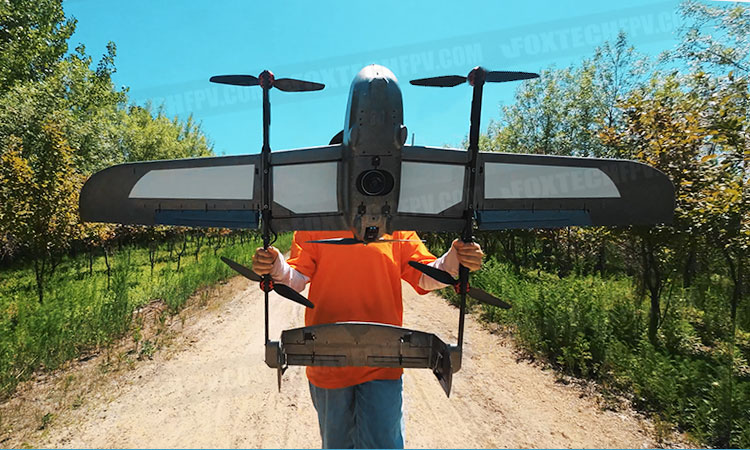

Original swing & lock design supports one-handed operation and saves time. With a buckle securing the tail wing and the fuselage, you can enjoy a safe and simple flight experience. To store it, the operator only needs to push down on the spring head, and then it can be folded easily.

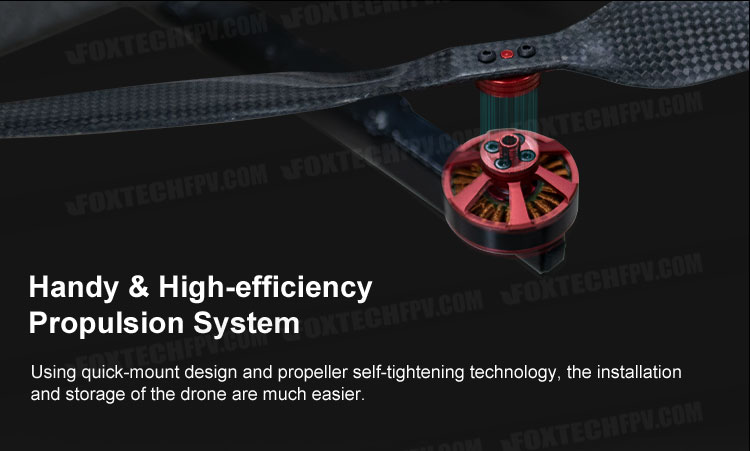

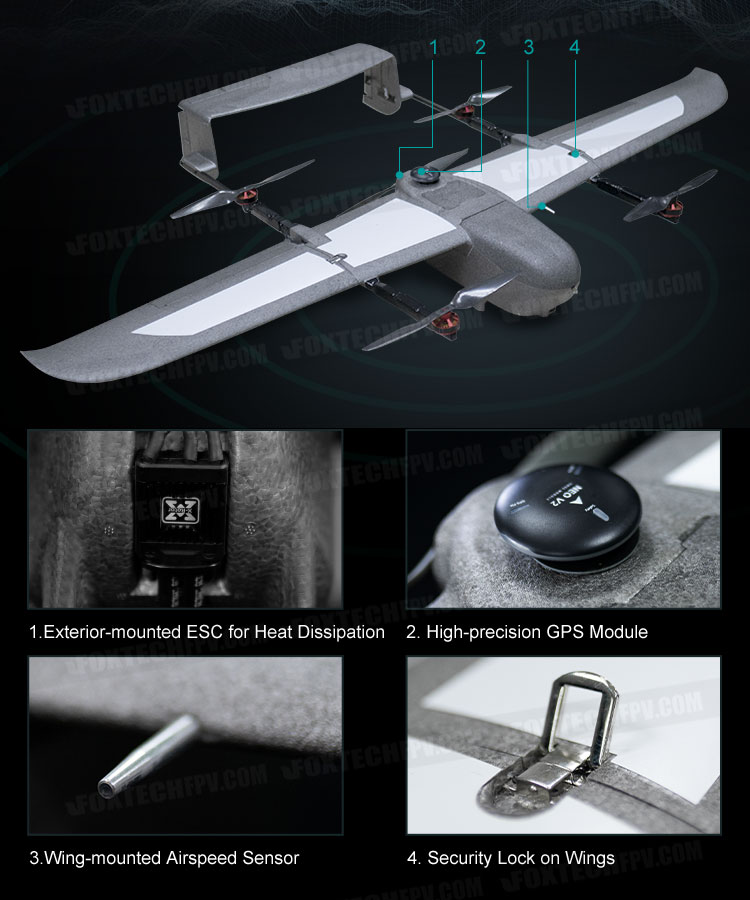

·Handy & High-efficiency Propulsion System
Loong 170 uses propeller self-tightening tech, enhancing efficiency in operation. When the motor is working, the mounting of the propeller gets tighter because the direction of the motor is opposite to the thread. When storing, only the front two propellers need to be removed, and the operation doesn’t need any tool.
Two front wings are mounted via two carbon fiber tubes and locked with a buckle. The assembly takes less than 3min by one operator.
·For Mapping & Inspection

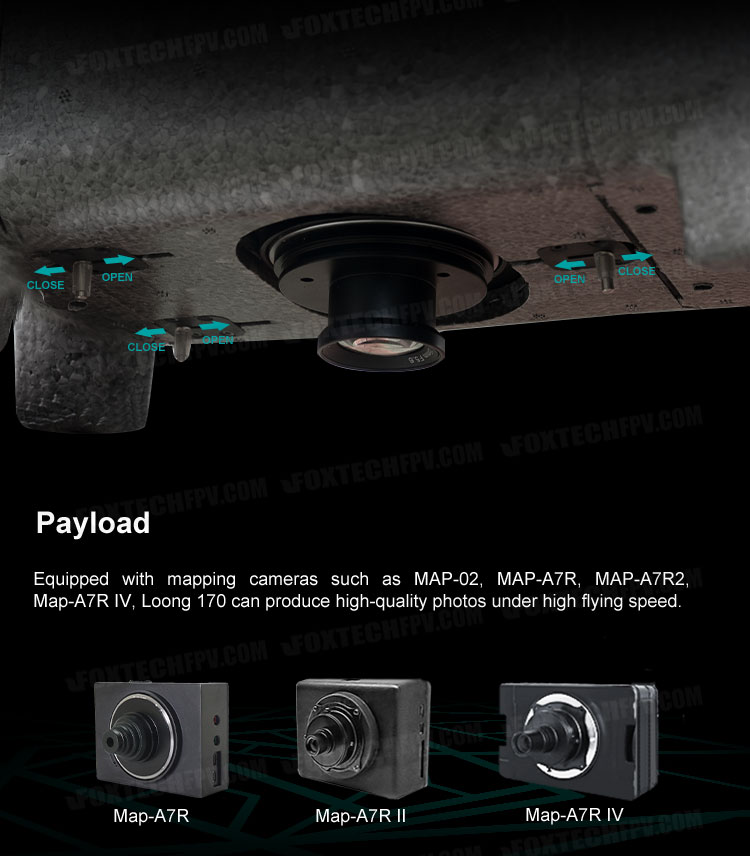

Along with MK15 15km long-range radio controller, and equipped with mapping cameras such as MAP-02, MAP-A7R, MAP-A7R2, Loong 170 can produce high-quality photos under high flying speed.
Note: The mapping version and inspection version doesn't include any camera or gimbal.

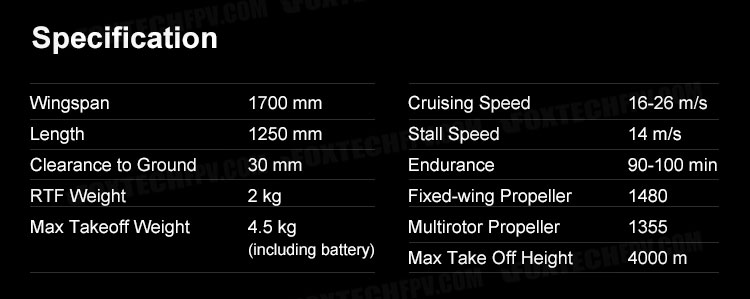

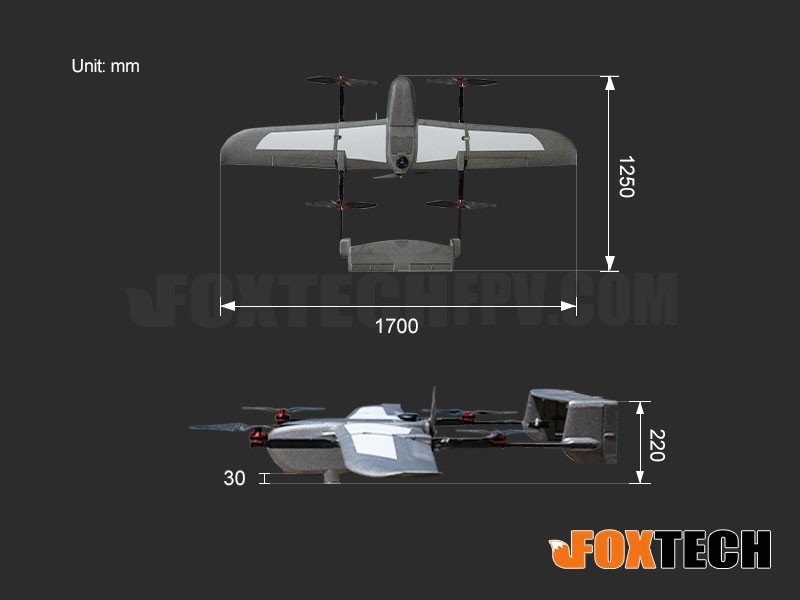

Clearance to ground: 30 mm
BEW (Basic Empty Weight): 2 kg
Max takeoff weight: 4.5 kg (including battery)
Cruising speed: 16-26 m/s
Stall speed: 14 m/s
Endurance: 90-100 min
Fixed-wing propeller: 1370
Multirotor propeller: 1355
Max Take Off Height: 4000m
Swing & lock Tail Wing

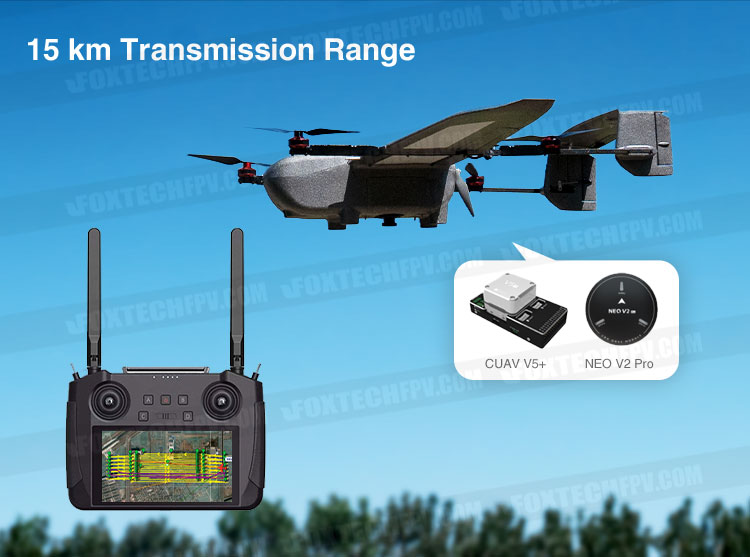

15 km Transmission Range
Your Purchase Includes：
1x Loong 170 VTOL
1x MK15 Remote Controller
1x Flight Controller
1x GPS Module
1x Assembling, tuned and Flying Test Service
