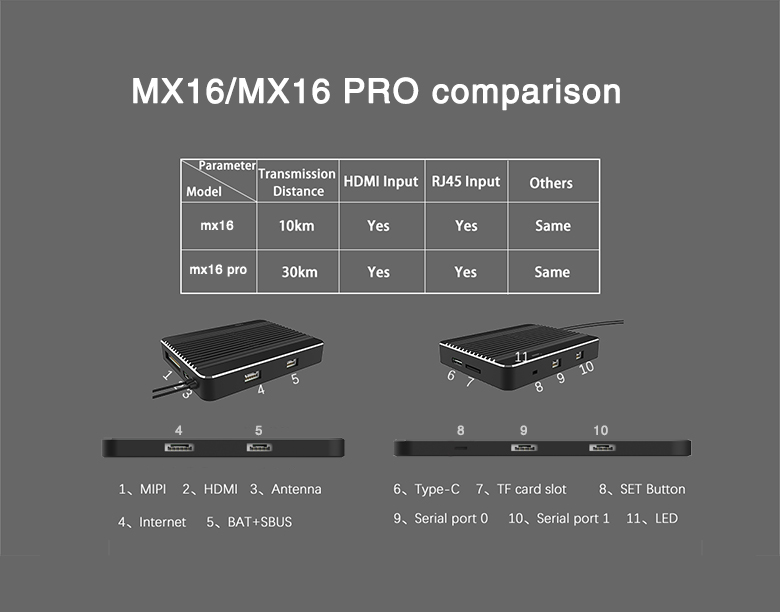

MX16 is a portable and cost-effective ground control station with video link, data link, rc and android system all in one, featuring low latency, good anti-interference performance and long transmission range. MX16 series includes two versions: MX16 and MX16 Pro. The max transmission range of MX16 is 10km, MX16 Pro-30km (test in open environment without any obstacles or electromagnetic interference).

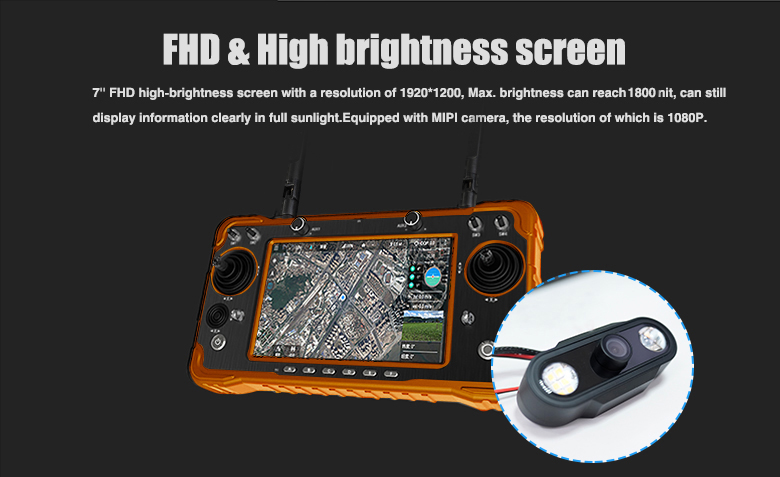

-MX16 series GCS is equipped with a 7'' FHD high-brightness touch screen with a resolution of 1920*1200, Max. brightness can reach 1800nit,operators can use it in full sunlight.

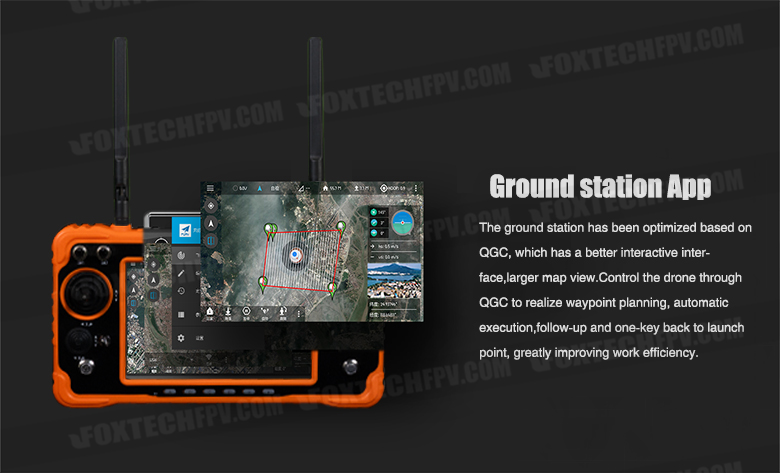

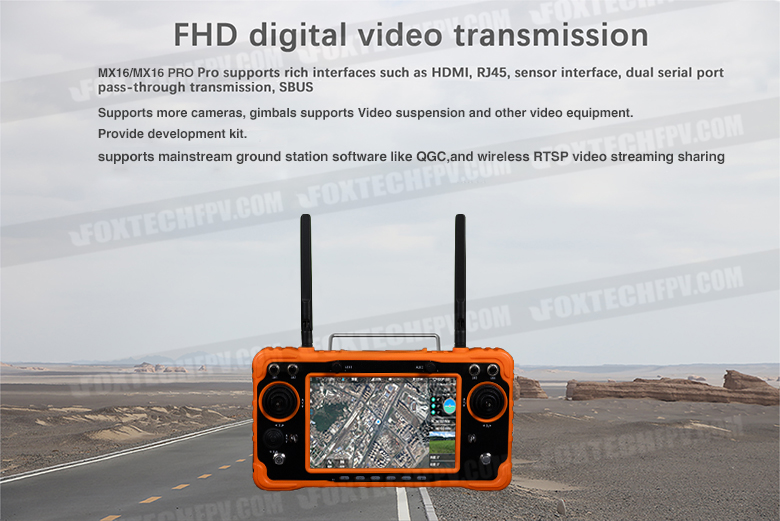

-Equipped with an android system, MX16 series supports mainstream ground station software like QGC. It also supports video suspension and wireless RTSP video streaming sharing.

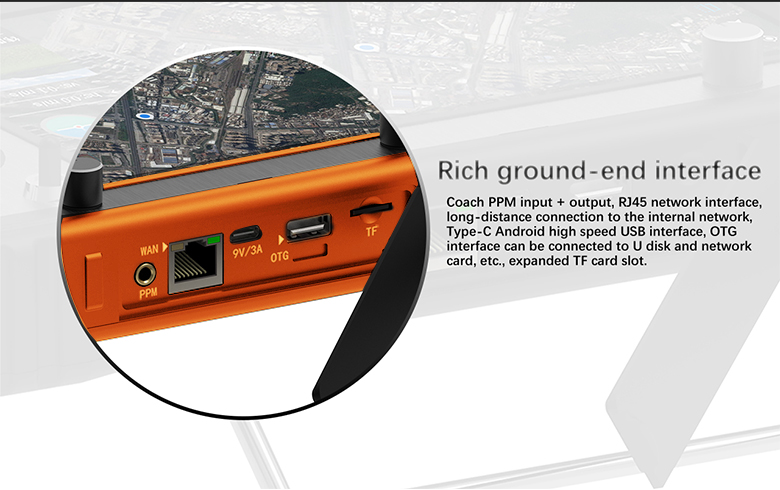

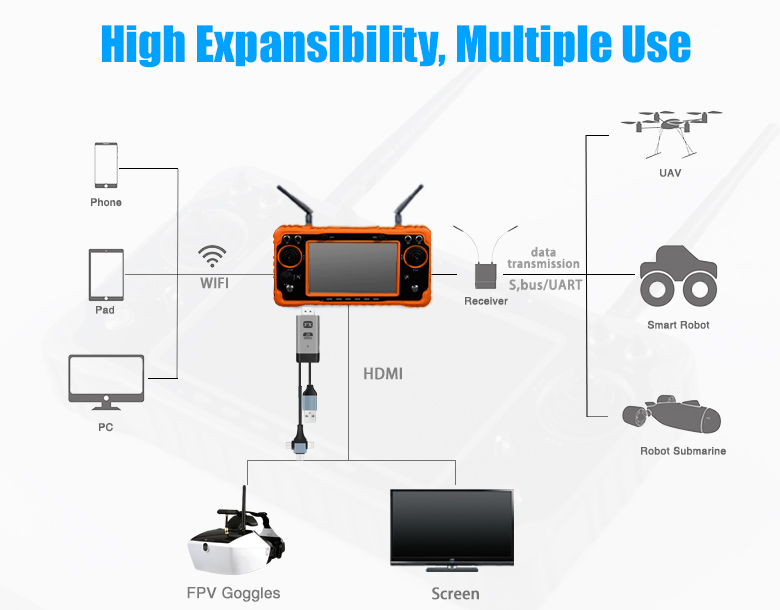

-MX16 series features high expandability, supports multiple interface like HDMI, RJ45(with better performance compared with HDMI), SBUS, PPM，sensor interface, UART, USB etc.
-MX16 includes a MIPI camera, the resolution of which is 1080P.

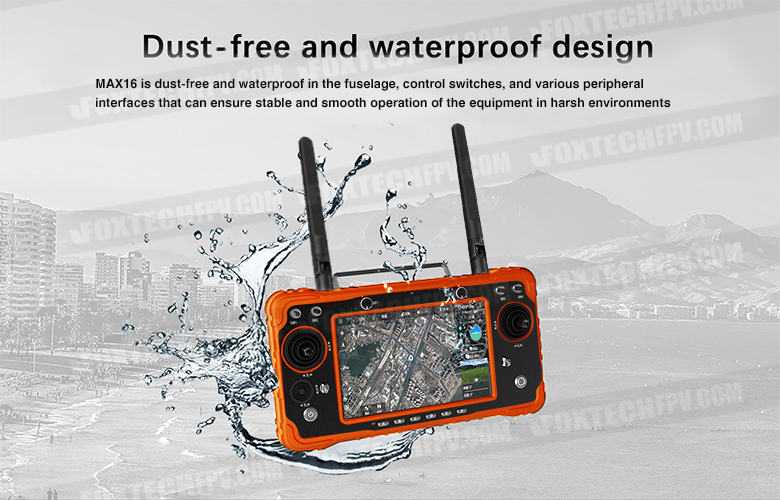

-The GCS body, control switches and all peripheral interfaces adopt dust-proof and water-proof design, which can ensure stable and smooth operation in harsh environments.

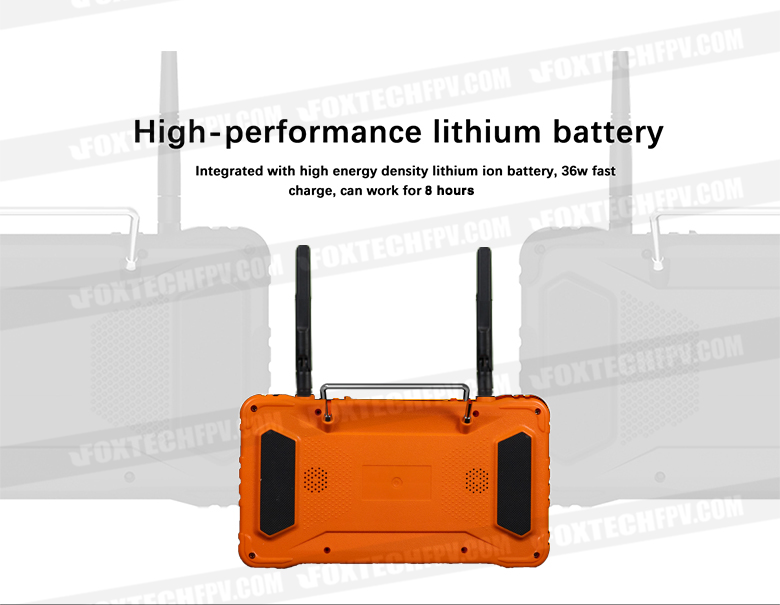

-With an built-in 20000mAh li-ion battery, the operation time is up to 8hours with full capacity, MX16 supports 18w fast charge.
Specification:
Weight: 1034g(controller)
Channel: 16
Working voltage: 4.2V
Frequency: 2.400GHz-2.483GHz
Battery Capacity: 20000mAh
Endurance: 8hours
Communication technology: FHSS

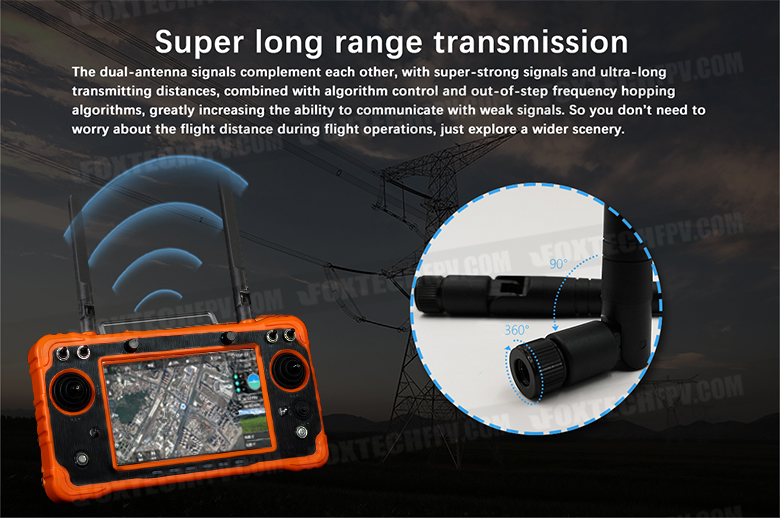

Transmission Distance: 10km; 30km (Video/data)
Receiver:
Working Voltage:7.2-72V
Size:76*59*11mm
Weight:90g
MIPI Camera:
Resolution: 1080P
Working Current: 14mA;140mA(with the light on)
Working Voltage:14-72V
Size:102.1*42.6*36.5mm
Weight:55g
Your Purchase Includes:
1x MX16/MX16 Pro Ground Control Station
1x MX16/MX16 Pro Air Unit
1x MIPI Camera
2x Antenna for Ground Control Station
1x Charger for Ground Control Station
1x HDMI A-C Adapter
1x Neck Strap
1x Cable Package
Optional:
Type-C to HDMI Cable
