The R85C receiver is Frsky D8 / D16 and Futaba SFHSS compatible and offers a range suitable to many RC modelers. Built-in a TCXO (temperature compensated crystal oscillator), ensures high stability and accuracy in frequency control, compensating for temperature variations.
* Suitable only for Radiommaster Multi-Protocal radios with ability to fine tune protocols. Not compatible with FrSky radios.
Package Includes
1 * R85C Receiver
1 * User Card
Features
Compatible with Frsky D8 / D16 and Futaba SFHSS

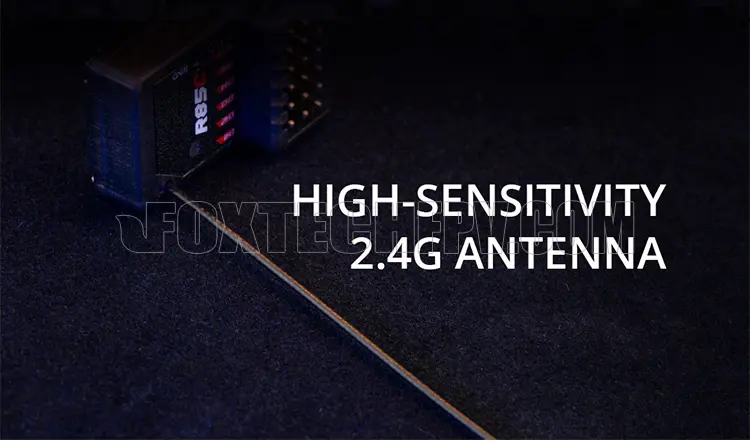

High-sensitivity 2.4G Antenna
Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
Specifications
Item: R85C Receiver
Power supply: DC 4.5 - 8.4V
Frequency range: 2400-2483.5Mhz
Support protocol: D8/D16/SFHSS
Output channel: 5CH PWM
Antenna type: high-sensitivity 2.4G antenna
Telemetry power: 100mW / 20dBm
Weight: 5.55 grams

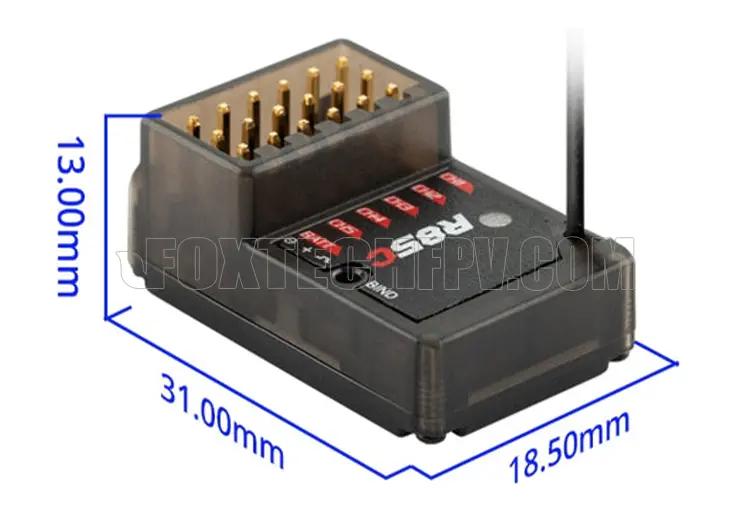

Dimensions: 31.0*18.5*13.0 mm

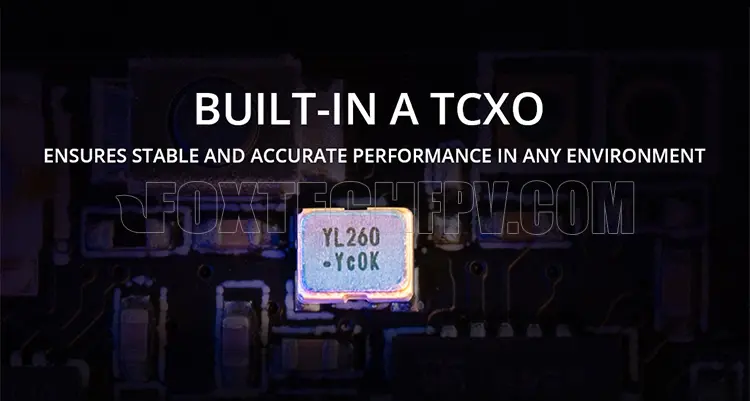

TCXO
The TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation.
