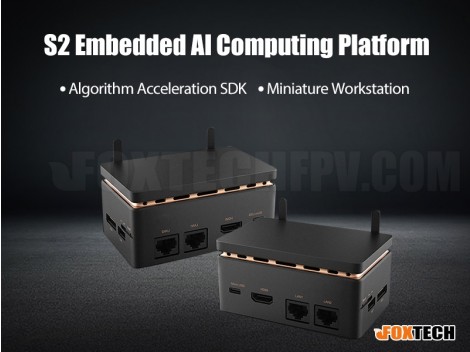

S2 is a fully-featured embedded platform for AI computing. It provides both high processing capabilities and high energy efficiency. S2 carries one of the most powerful mobile computing core modules, NVIDIA Jetson TX2 and it brings artificial intelligence to edge devices. In addition, a variety of computer vision algorithm acceleration SDK are provided on S2 platform.
S2 embedded AI computer can be equipped with Foxtech products such as XLink-30 30km or VDC 7km/15km Datalink and Videolink& DA16S+ RC & EH314 4K Mini Camera or EH640 30x Optical zoom Dual-sensor Camera (Ethernet output) to achieve long-range HD video transmission applied in environmental monitoring, fire detection, road patrol, vehicle detection, etc.
Note: For more options about binocular vision-aided UAV/autonomous vehicle SDK&hardware set, welcome to email us at [email protected].
Features:
Dual Gigabit Ethernet port
High Performance Active Cooling System

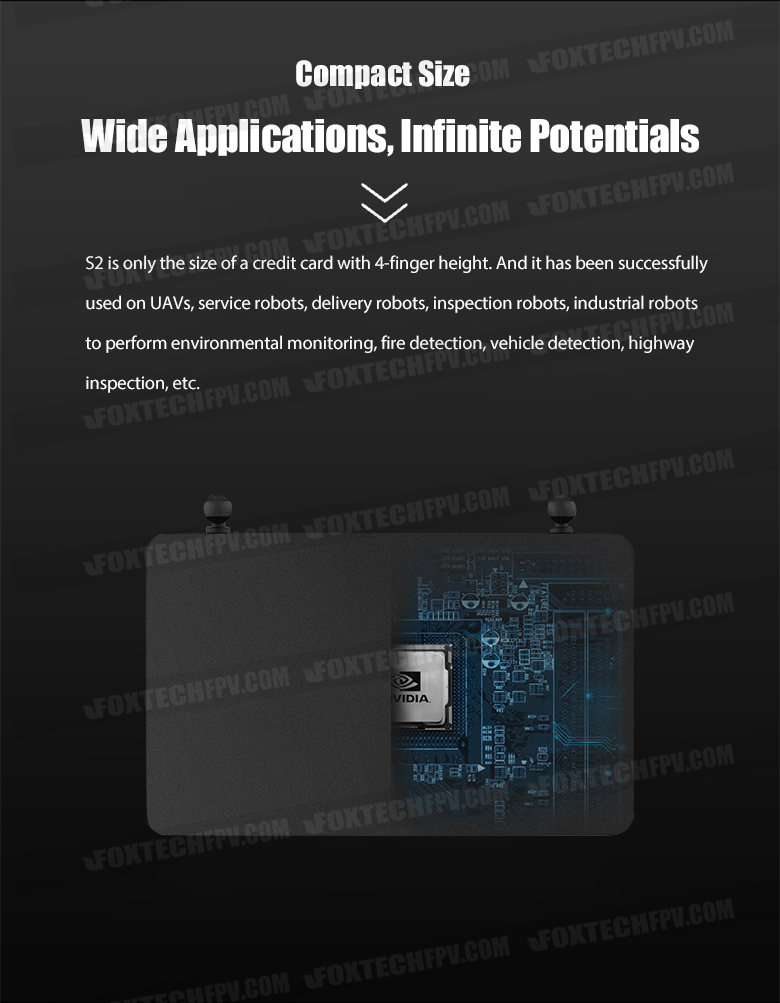

Compact Small Size, Easy to Deploy on Autonomous Robot
-20~60℃ Working Temperature
WiFi Supported
Operating System: Ubuntu18.04, Jetpack 4.2.2
Software Functions:
1. Supports laser radar, Ethernet or USB port camera, IMU and other sensor access; pre-installed a variety of sensor drivers, eliminating the need for driver development
2. Provides acceleration SDK based on open source algorithm YOLOV3 and API
3. Provides open source SLAM algorithm installation support
4. Provides support in ROS robot system installation
5. Provides instructions on software framework installation
6. Provides installation support in Jetson platform development tools
7. After-sales technical support team, greatly shortens the development cycle
Your Purchase Includes:
1x S2

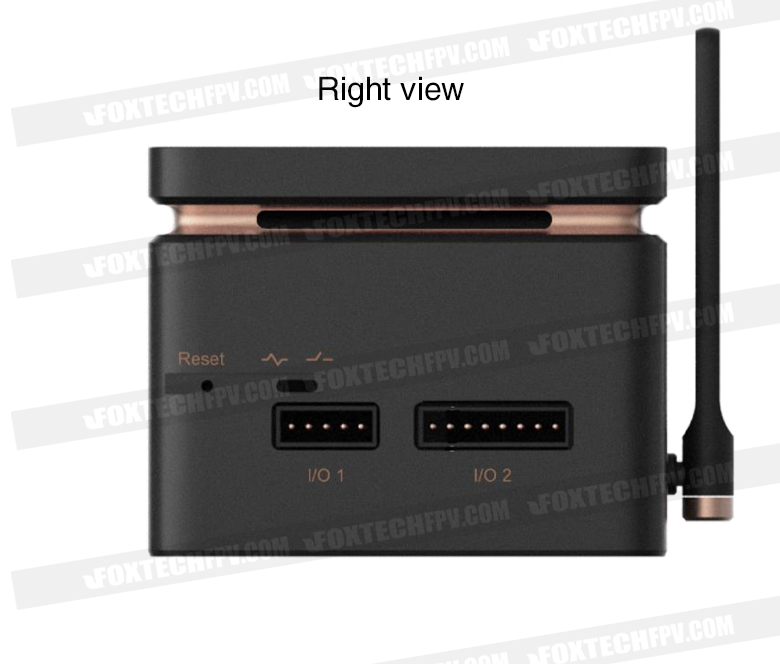

2x I/O Cable Assemblies
1x Power Supply with AC Cord
2x WIFI Antenna
Optional:
Object Recognition SDK
Video Tracking SDK
Recommended Combos:
EH314 Combo:
1x S2 Embedded Artificial Intelligence Computer
1x XLink-30 Long Range Wireless Data/Video Transmitting System (30km range)
1x Foxtech DA16S+ 16-Channel Radio Controller
1x EH314 4K Camera (Ethernet output)
EH640 Combo:
1x S2 Embedded Artificial Intelligence Computer
1x VDC Long-range Video/Data/RC Wireless Transmission System (7km/15km)
1x Foxtech DA16S+ 16-Channel Radio Controller
1x Foxtech EH640 30x Optical Zoom IR Thermal Camera with 3-axis Gimbal (Ethernet output)
Object Recognition SDK:

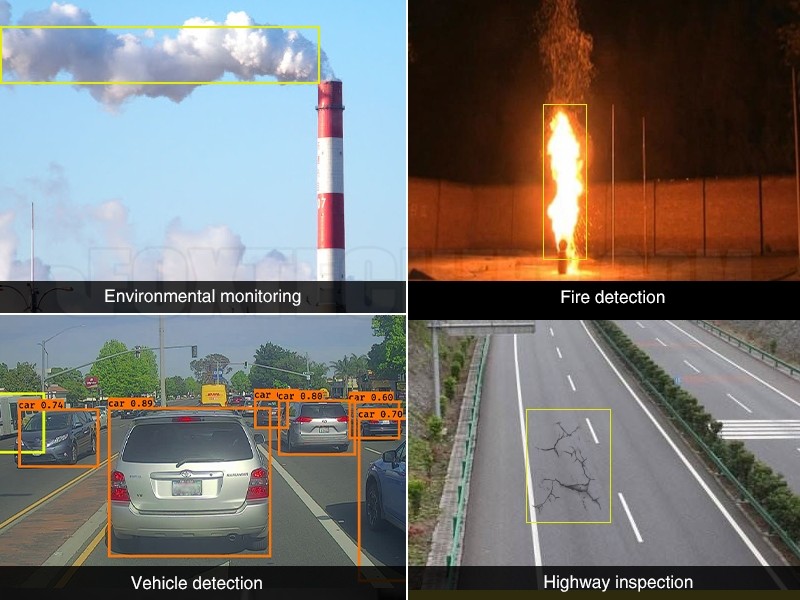

1. The UAV that is equipped with S2 module and a Ethernet port gimbal camera can be used for real-time object recognition. The Object Recognition SDK adopts the latest acceleration framework and algorithm optimization model. Its recognition capability is up to 1080P/15fps and it can be used for environmental monitoring, fire detection, road patrol, vehicle detection, etc.
2. Real time recording of target location; suspicious target alarm
3. Data Backup: Insert the USB flash drive into S2 module, the image and data result will be automatically backed up to the USB flash drive.
4. Supports data training and neural network clipping for optimization algorithm

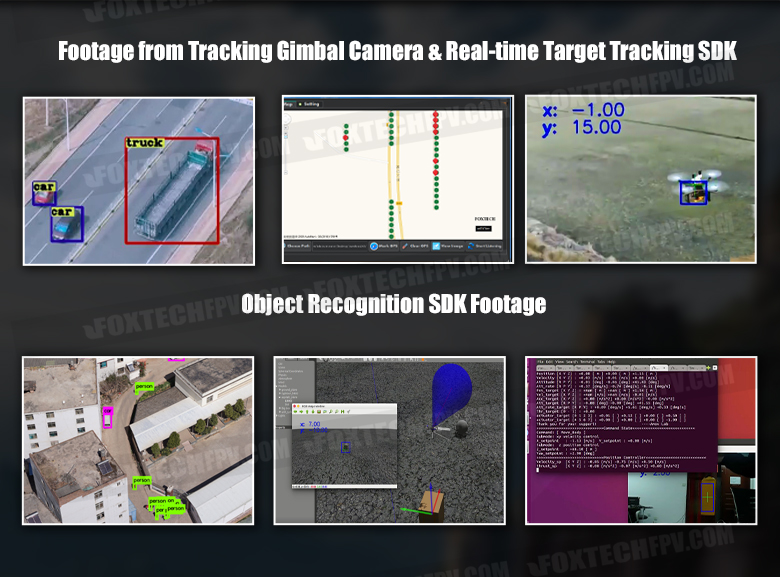

Real-time Target Tracking SDK+ Tracking Gimbal Camera:
1. The Video Tracking SDK is matched with a 10x Optical Zoom 1080P/60fps Three-axis Gimbal camera to perform object tracking with both camera and drone tracking available. Camera tracking is realized by gimbal attitude control(speed mode, angle mode), and drone tracking by the tracking-related command given by PX4 flight controller when it is linked with S2.
2. The SDK is an open-source software that includes ros/mavros interface, gazebo simulator, kcf tracker.
3. Secondary development and upgrade of tracking algorithm(e.g. kcf) is supported.
4. Supports ROS/Gazebo 3D tracking simulation algorithm.
