Tarot X4 Quadcopter Frame(TL4X001)

SKU: 001946

Availability: In stock ( 4 )

Weight:2.2KG

Volome Weight: 2.73KG

$309.99

Reward points Earn you 310 reward points.

Qty:

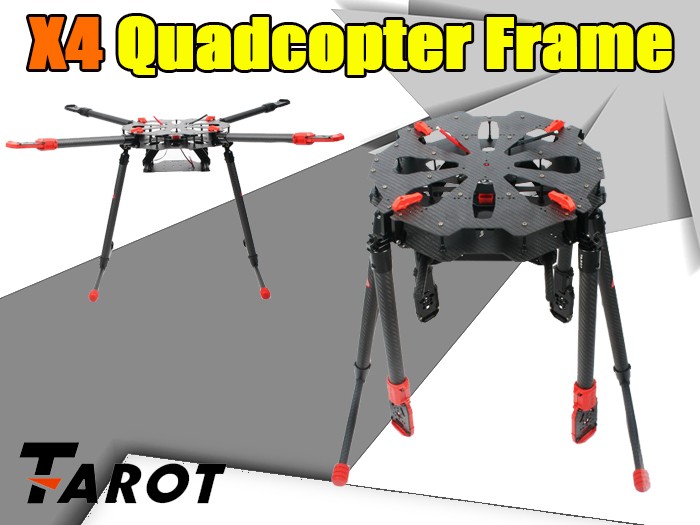

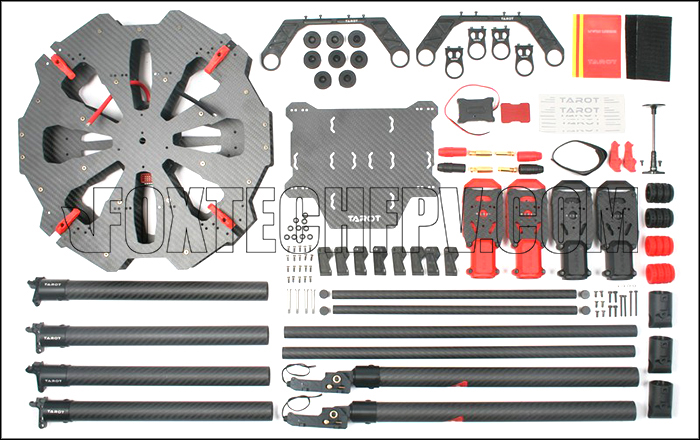

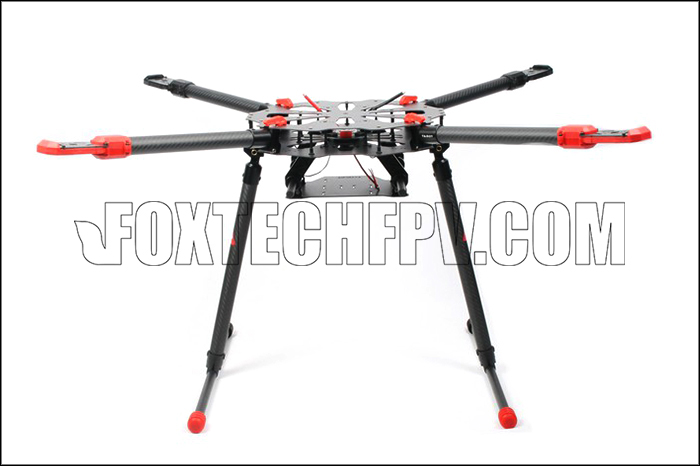

Tarot X4 quadcopter is one of the professional photography equipments carriers. New electric retractable landing gear and umbrella-type arm combine to enable a wide range of shooting angles and camera motions.
Highly integrated PCB board simplifies the cabling. Adequate space is for all kinds of flight controller installation.
Under the recommended configuration with tarot 6115 kv320 motor, Foxtech Multi-Pal 60A OPTO ESC and Foxtech 2255 DK CF propellers, the Tarot X4 is easy to hold 5D devices with long flight time.

Features:

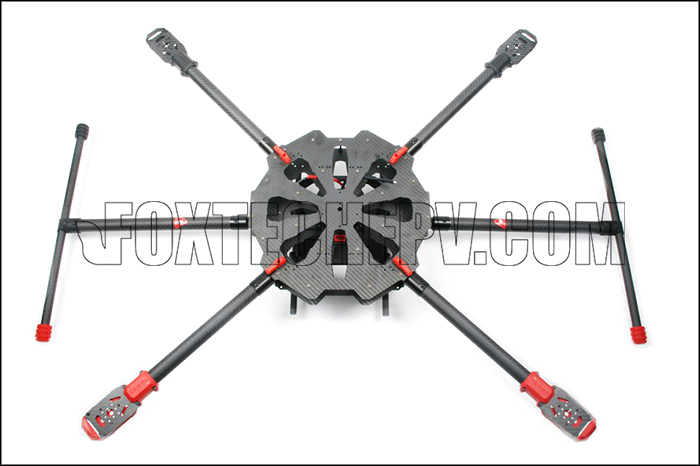

- Umbrella type folding arm

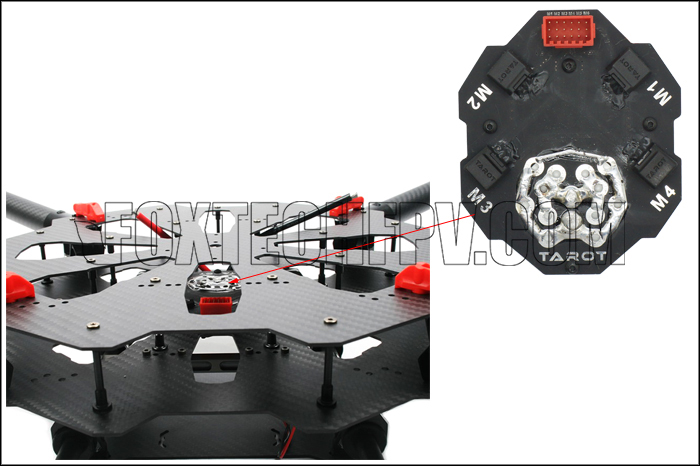

- Integrated PCB cable board
- Downward battery mounting design
- 4-direction arm locking design
- Electric retractable landing gear

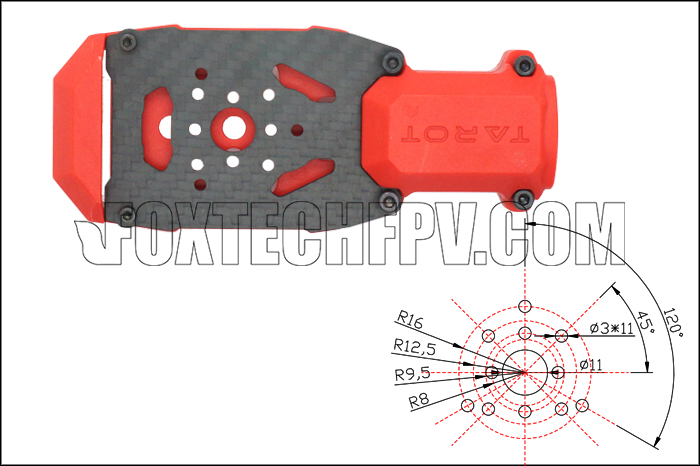

- Anti-vibration motor mounting seat

Specifications:
- Wheelbase: 960mm
- Propeller: 22-24inch
- Single arm length: 392mm
- Single arm weight: 113g
- Center plate diameter: 328mm
- Landing gear height: 395mm
- Battery: 15C 22.2V 10000-20000mAh
- ESC : 60A
- Working temperature: -10℃~40℃
- Max.take off weight: 8kg
- Flight time: 42mins(no payload)
- N.W.: 1600g
- G.W.: 2200g








Recommended configuration:
-4*Tarot 6115/320KV Brushless Motor
-4*Foxtech Multi-Pal 60A OPTO ESC
-2*Foxtech 2255 DK Carbon Fiber Propeller CW&CCW
-1*DJI A2/WKM 50Waypoints Combo Flight Controller
-1*Futaba 14SG Radio Control
-1*6S Foxtech Lipo Battery
