VDC-22 / VDC-55 is a long-range transmission system with video /data / SBus signal transmission all-in-one, which features handy, powerful and high integration.
There are 800 MHz, 1.4 GHz, 2.4 GHz three optional bandwidth and the transmission range is 22 km and 55 km. A omnidirectional fiberglass antenna can be mounted at the top of the ground unit to enhance the receiving signal while a tripod is mounted below for support, with which the additional antenna is not needed, thus the convenience is improved.
Star networking with 16 nodes is supported. At the same time, transmission inside the network will be stable and won’t disturb each other when connecting or disconnecting.
VDC-22 and VDC-55 used along with ground stations supporting aviation plug connection such as T30s (no video transmission version), can largely improve the transmission distance.

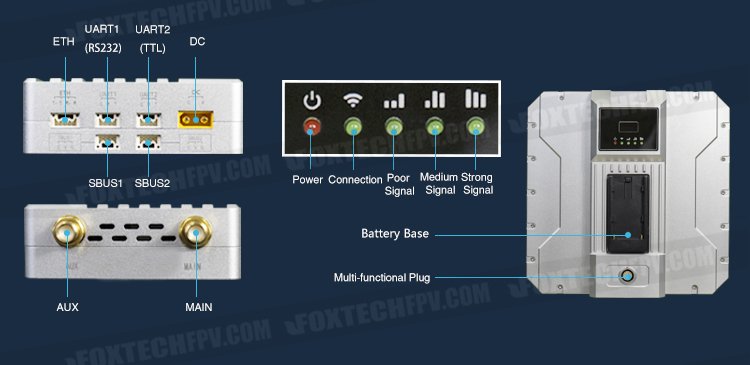

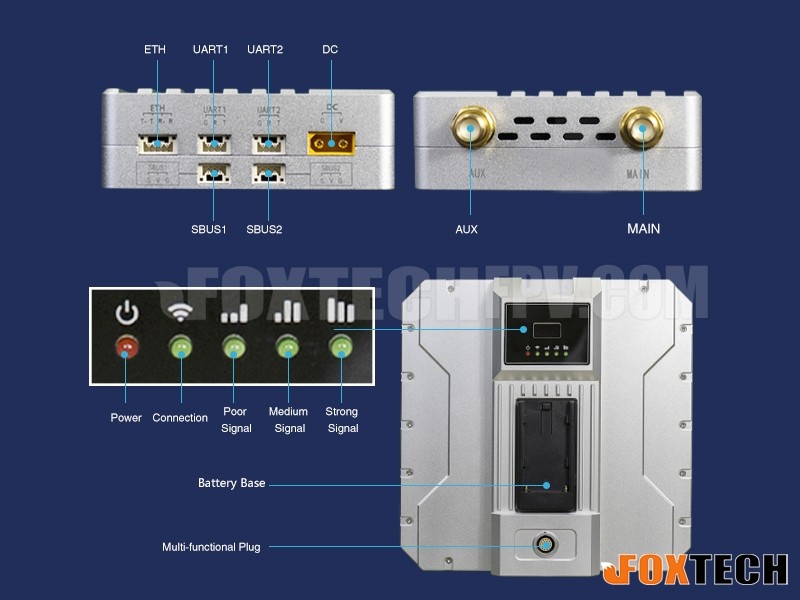

VDC-22 and VDC-55 support Ethernet & UART connection between the ground unit and the GC, so the image will display to the operator in real time. There are two SBus ports on VDC-22 / VDC-55 with total 32 channels.
Note: The tripod is not included in the standard package, please contact us.
Video / Data / SBus Signal Transmission
Long Transmission Distance

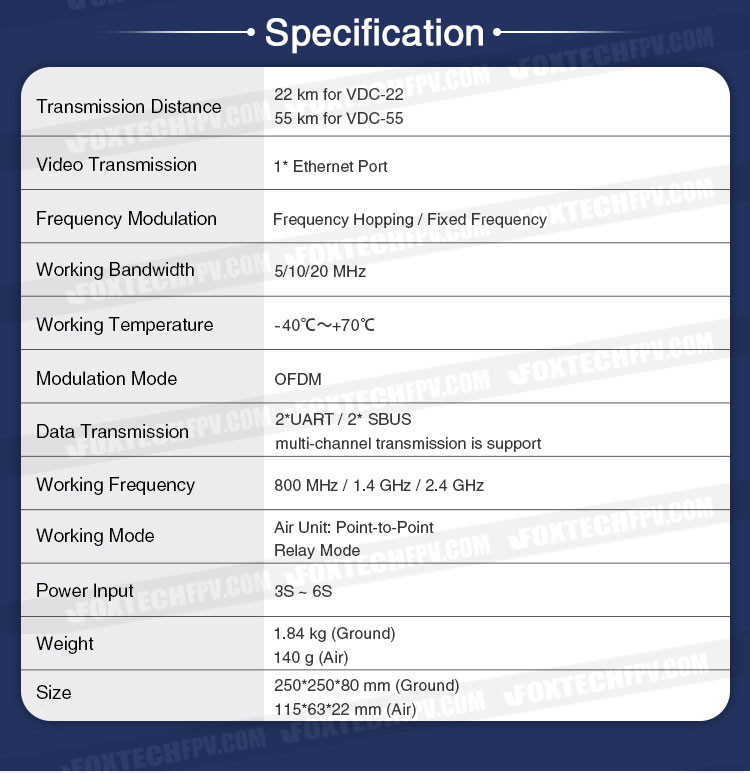

22/55 km Trans @ 800M/1.4G/2.4G Hz
Your Purchase Includes：
1x VDC Long Range Video/Data Transmitter
1x VDC Long Range HD Video/Data Receiver
1x Fiberglass Antenna
4x Receiver Antenna
1x Feeder Cables
