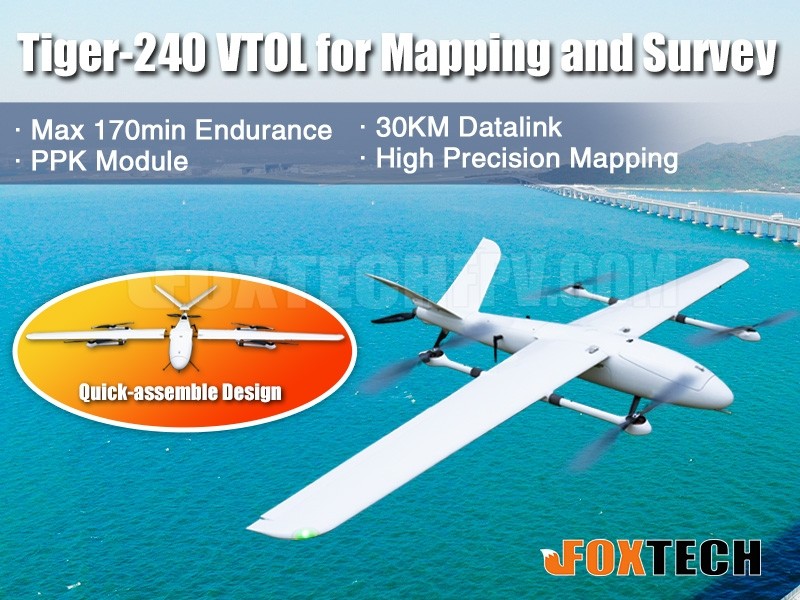

Tiger-240 VTOL for Mapping and Survey

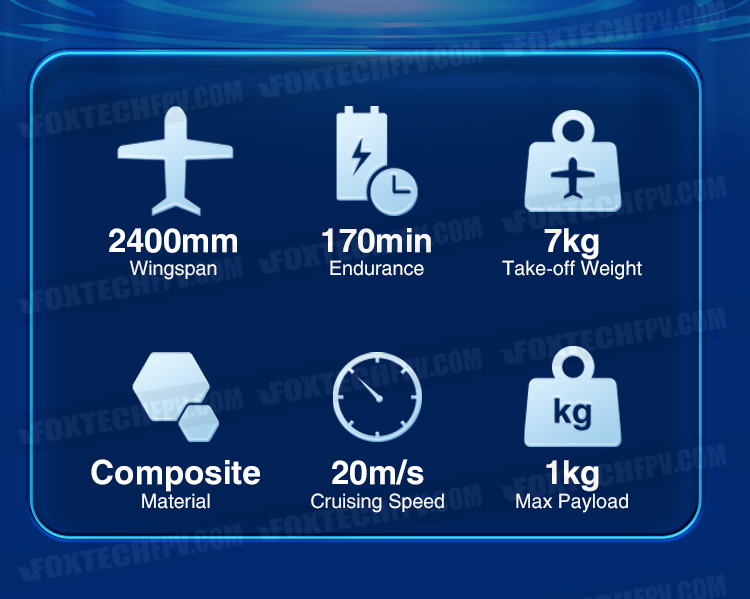

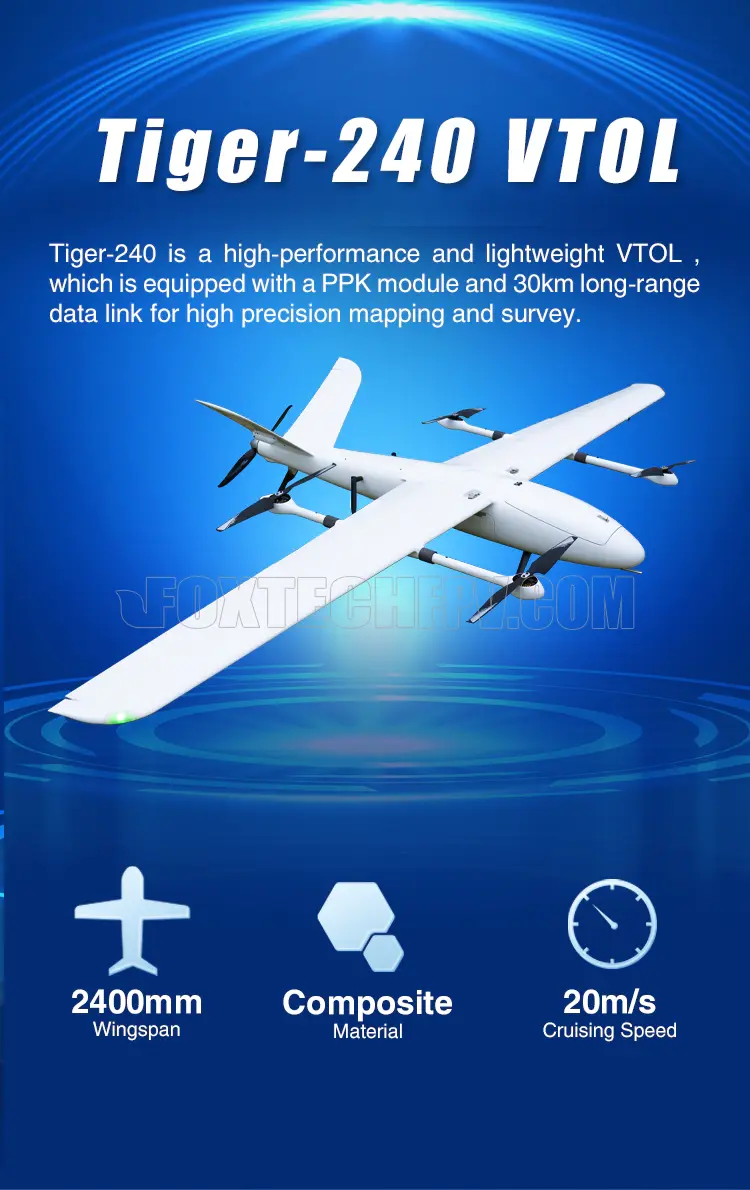

Tiger-240 is a high-performance and lightweight VTOL with max 170min flight time, which is equipped with a PPK module and 30km long-range data link for high precision mapping and survey.

Made of carbon fiber and fiberglass, Tiger-240 VTOL is light and durable. The aerodynamic design and smooth surface ensure low air resistance. The modular quick-assemble design makes it easy to assemble and significantly shortens preparation time for each flight.

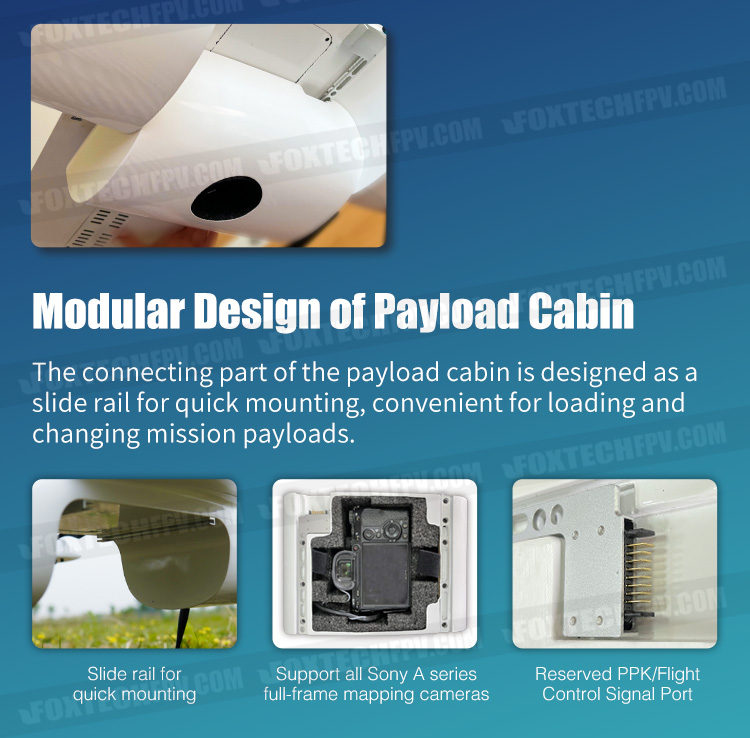

The payload cabin of Tiger-240 VTOL is detachable, the connecting part is designed as a slide rail for quick mounting, which is convenient for loading and changing mission payloads, such as all Sony A series full-frame mapping cameras. There is also a reserved hot shoe and shutter cable inside the cabin. The max loading capacity of Tiger-240 VTOL is 1kg.

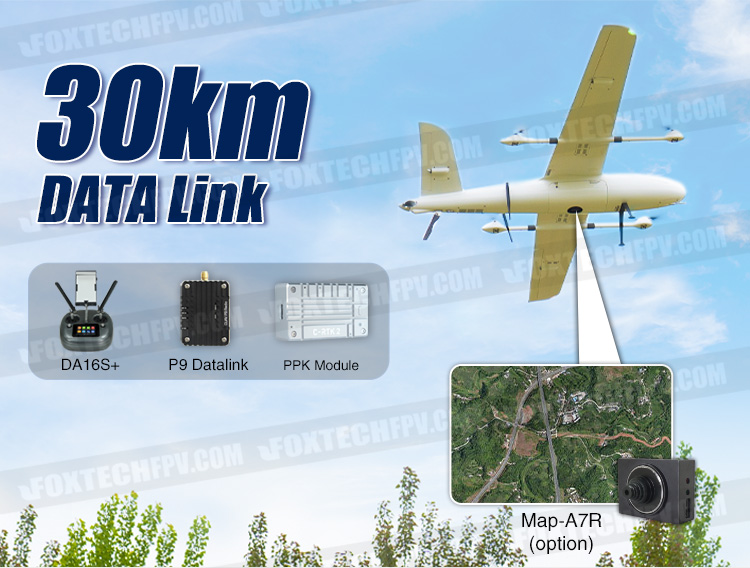

The Tiger-240 is equipped with a PPK module and P9 900MHZ 30km data link. The PPK module supports up to 25Hz RAW data recording for post-differential calculation. The positioning accuracy is less than 0.01m. The PPK module is compatible with NTRIP, CORS RTK, or other BASE like EMLID. With long duration and stable flight performance, Tiger-240 VTOL can be used for high precision mapping such as generating high-precision orthophoto maps by loading with Map-A7R full-frame mapping camera.

Your Purchase Includes:

RTF Combo:

1x Tiger-240 VTOL (with power system)
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x P9 900MHZ Data link
1x C-RTK 2 PPK Module Sky End
1x Carrying Case
1x Assembling, Tuned, Flying Test Service

Option:

Map-A7R Full Frame Mapping Camera
FOXTECH 35mm Lens for Mapping Camera
6S 30000mAh Solid-state Li-ion Battery
