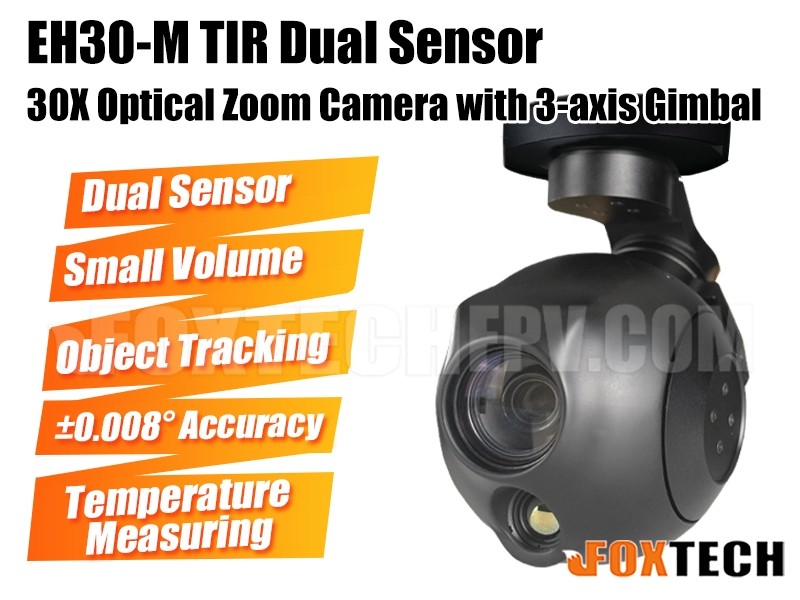

EH30-M TIR Dual Sensor 30X Optical Zoom Camera with 3-axis Gimbal

Note: Do not detach the gimbal camera when it is powered on, as it may damage the camera.

EH30-M TIR is a dual sensor gimbal camera featuring light weight and small size, which integrates a 30x optical zoom camera and a 704*576 thermal camera. It can be mounted on multirotors or VTOLs for inspection, surveillance, search and rescue.

Standard Version is for VTOL, Quick-Detach Version is for Multi-copter.

-EH30-M TIR supports 1080p/25fps Ethernet output, the effective pixel is 2.16MP. The thermal camera resolution is 704*576.

-3-axis gimbal features high stability and sensitivity. The gimbal control accuracy is ±0.008°.

-The Yaw axis supports 360°rotation, which is convenient for shooting, without the angle limit.

-EH30-M TIR supports dual sensors object tracking, it is able to track static or moving target easily. The gimbal can be controlled via SBUS and TCP.

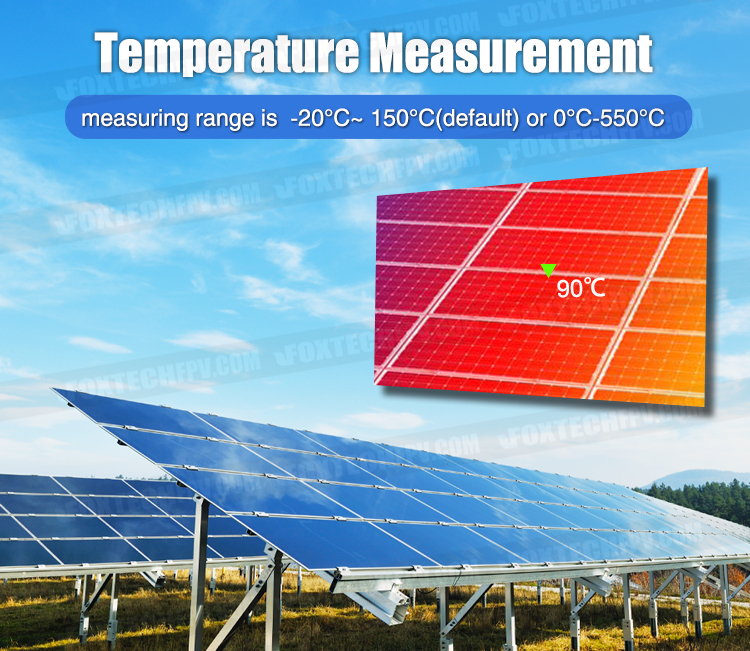

-The gimbal camera supports temperature measurement, the measuring range is -20°C~ 150°C(default) or 0°C-550°C.

-Supports point-to-zoom, one-button back to center etc.

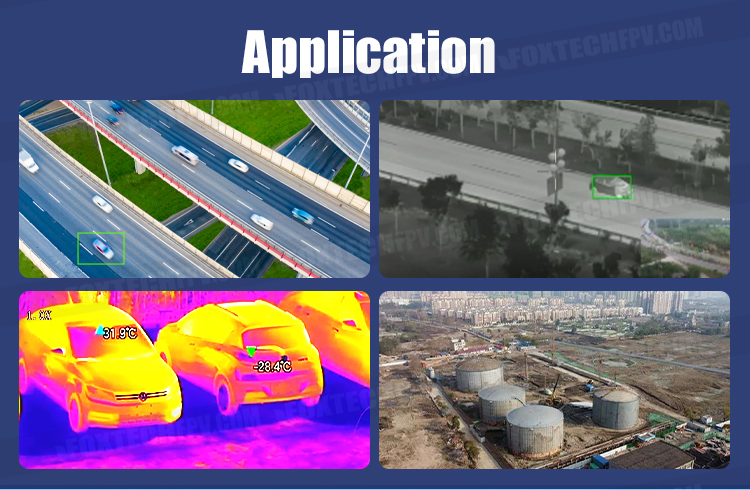

EH30-M TIR dual sensor gimbal camera can be loaded on multi-rotor or VTOL such as RHEA 160, Cygnus-120 hexacopter, AYK-250 VTOL for traffic monitoring, fire fighting, power line inspection, search and rescue etc.

Your Purchase Includes:

1x EH30-M TIR Dual Sensor 30X Optical Zoom Camera with 3-axis Gimbal

1x OSD Module

1x Carrying Case

Manual Download

GCS (Gimbal camera control; screen display; change IP address of the camera)
