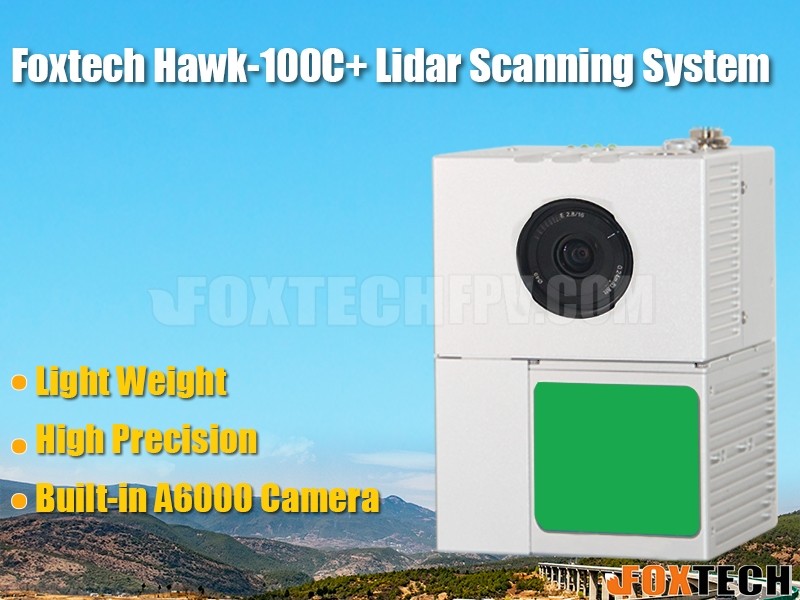

Foxtech Hawk-100C+ Drone Lidar Scanning System

Hawk-100C+ is an upgrade version of Hawk-100C, which adopts more precise INS inertial navigation system and 83° FOV camera, the hardware and firmware are also upgraded.

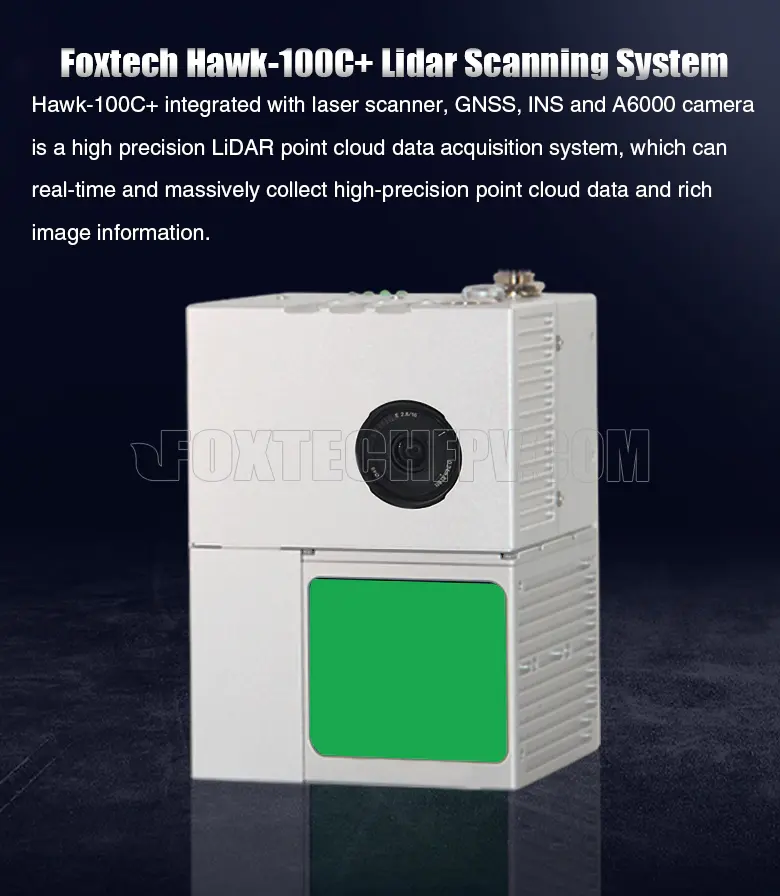

Hawk-100C+ integrated with laser scanner, GNSS satellite positioning system, INS inertial navigation system and A6000 camera is a high precision UAV LiDAR point cloud data acquisition system, which can real-time and massively collect high-precision point cloud data and rich image information. It can be widely used in digital city construction, land survey, forestry and agriculture.

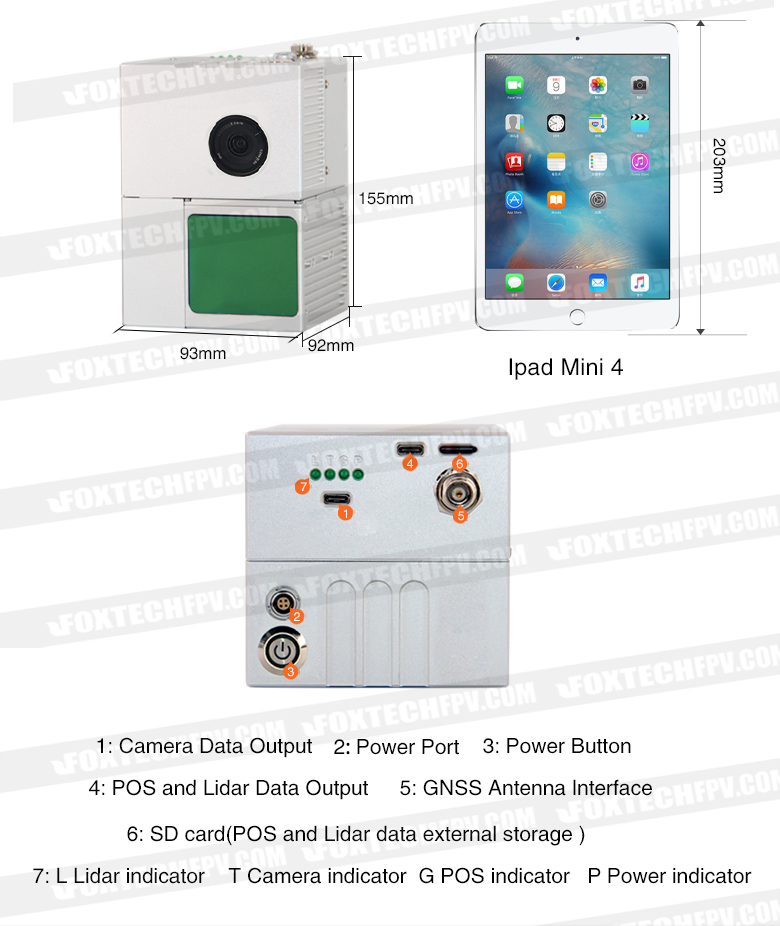

Hawk-100C+ Lidar Scanning System features high precision GNSS positioning, fast data processing speed and light weight, less than 1.1kg. Mounted on multirotors it can quickly obtain the three-dimensional position and attribute information of ground objects in a large area, then generate digital image like DOM (with integrated camera), DEM, DLG, DSM through data processing software.

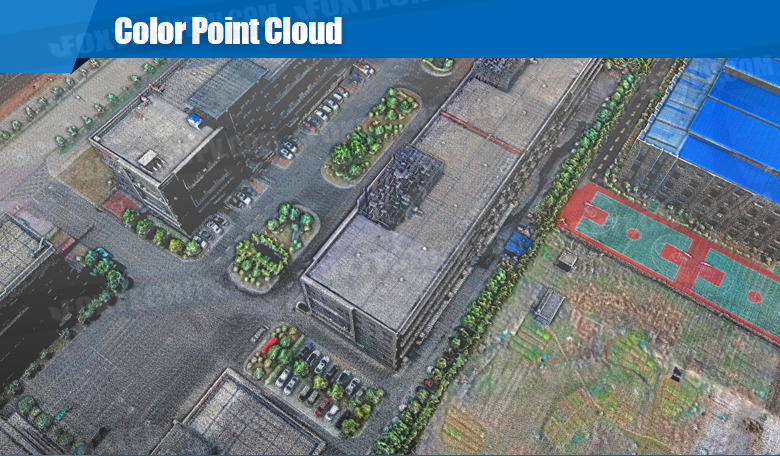

Hawk-100C+ positioning and attitude measurement system consists of high precision GNSS and INS, the integration of which is used for differential positioning and orientation to provide instantaneous position, speed and attitude information (pitch, roll, yaw); It also has an built-in Sony A6000 mapping camera with 26mega pixels and 83° FOV. The camera cooperates with the laser scanning system realizing synchronous collection of the image and point cloud data and then generate a color point cloud or an orthophoto map (DOM).

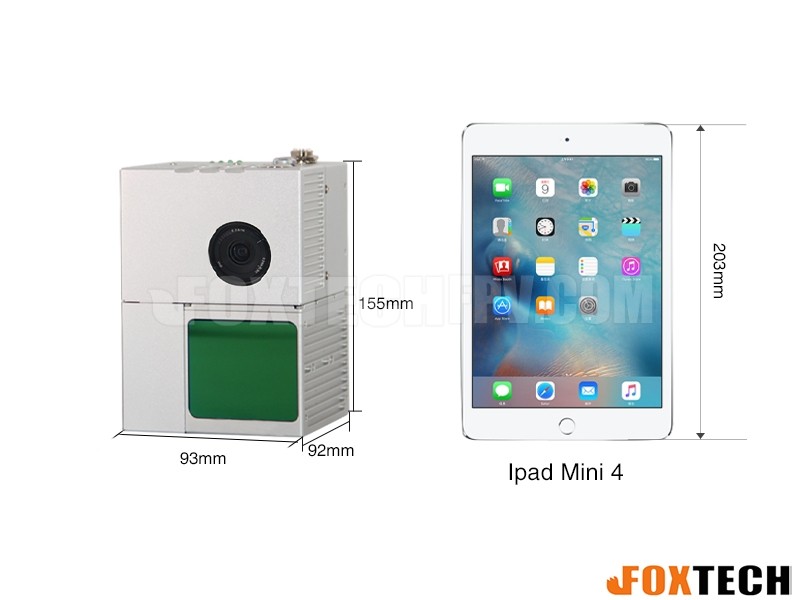

Owe to the light weight and compact size, Hawk-100C+ LiDAR can be easily mounted on any multicopters for many different applications, such as objects classification and extraction, creating digital elevation models (DEMs) of specific landscapes, mapping flood risk and monitoring coastal erosion, highlighting changes and abnormalities of vegetation growth.

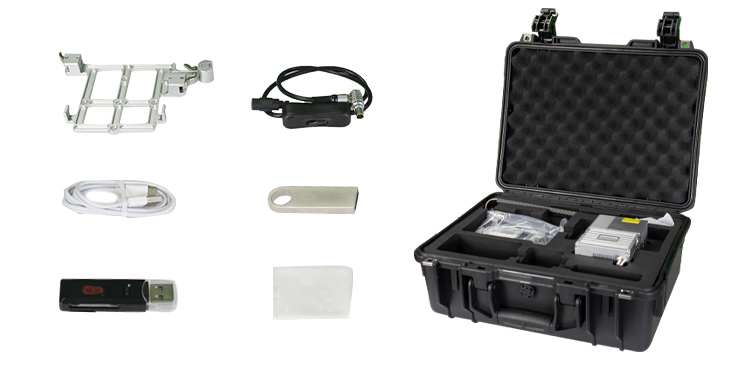

Your Purchase Includes:

1x Foxtech Hawk-100C+ Lidar Scanning System

1x GNSS Antenna

1x 128G SD Card

Software Manual
