Foxtech Hover 1 Quadcopter

SKU: S69104

Availability: In stock

Weight:1g

$618.00

Reward points Earn your 618 reward points.

$618.00
Qty:







Foxtech Hover 1 Quadcopter is called Human Eyesight Extension in the Air, which is invented for survey, inspection, rescue, tracking, and shooting, also can be a sporting drone. Hover 1 is equipped with high efficient power system, including T-Motor MN3508 KV380 motor, 1552 folding propeller and Foxtech Multi-Pal 40A OPTP ESC,  to ensure long flight time  and make Hover 1 fly over the area such as highway traffic jam, fire place, flood stricken region, mountain, lake and coal area, where people can not reach and find out  the emergency situation, and then transmit signal and image to the ground station.

Hover 1 is compatible with Pixhawk cube orange standard set with Here 2 GNSS, which includes an orange cube, ADS-B carrier board and Here 2 GNSS. This open-source autopilot adopting powerful H7 processor, featuring a triple-redundancy IMU system and vibration dampening system. With ADS-B carrier board, the software is able to receive information such as position, altitude, speed, etc.

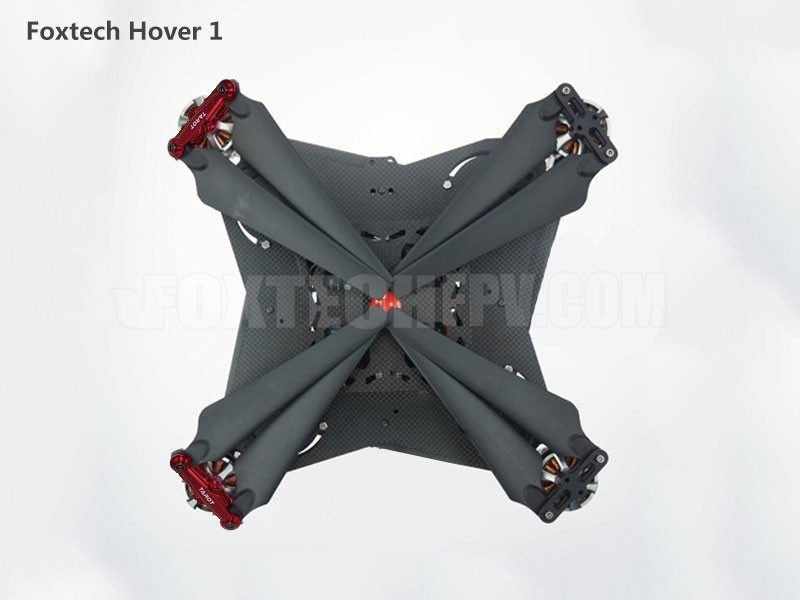

Hover 1 can be folded into a small size as iPad mini and put into a packbag to go traveling and anywhere due to folding arms, propellers and landing gears and light and durable 3k full carbon fiber material.  Coming with FH310Z or FH310W 10x zoom HD camera and 3 axis brushless gimbal, Hover 1 can do survey, inspection, rescue and tracking etc. as your third eye.



Specifications:

- Wheelbase: 610mm
- Folding size: 285*285*175mm
- Propeller: Foxtech 1552 folding propeller
- Motor: T-Motor MN3508 KV380
- ESC: Foxtech Multi-Pal 40A OPTO ESC(Simonk Firmware)
- Flight controller: Pixhawk cube orange standard set with Here 2 GNSS
- Take-off Weight:1.4kg (battery excluded)
- Flying time: >50 minutes
- Operating temperature: -20 ~ +50 ℃
- Suggested flight Altitude: <1000m
- Max air speed: 20m/s

Features:

- Max air speed: 20m/s
- Max climb rate: >20m/s
- Long flight time: >50 minutes (no load)
- Light flying weight: 1.4kg only (battery excluded)
- Folding arms, propellers and landing gears
- Small folding size as Ipad Mini make it possible to put it in a bag for traveling and going anywhere
- Powerful and high efficiency power system ensures almost 1hour flying time.
- 3K full carbon fiber, light, rigid and durable

Options:

- Battery: 6S 9500mAh Li-ion Battery
- Propeller: Foxtech Supreme C/F Propeller (15x5.0) V2
- Motor: Foxtech S3508 KV380
- Remote Controller: Futaba 14SG Radion Controller, Taranis X9D Plus Radio Controller
- Hover 1 motor cover (red / black)
- Pixhawk ground station



Your Purchase Includes:

Without Flight Controller:

- 1x Foxtech Hover 1 quadcopter frame

- 4x T-Motor MN 3508 KV380 motor

- 4x Hobbywing XRotor 40A ESC(no BEC)

- 2x Foxtech 1552 folding propeller



Pixhawk Cube Orange RTF Combo:

- 1x Foxtech Hover 1 quadcopter frame

- 1x Pixhawk Cube Orange Standard Set with Here 2 GNSS

- 1x DA16S+ Radio Controller

- 4x T-Motor MN 3508 KV380 motor

- 4x Hobbywing XRotor 40A ESC(no BEC)

- 2x Foxtech 1552 folding propeller

- 1x Assembling, tuned and Flying Test Service

Recommend Pixhawk Param

Customer Reviews

9 Item(s)

per page
Amazing Review by Ben
Shipping
Quality
Price
https://youtu.be/YbocTrFpePs

We adapted the following:
- PixHawk is running am adapted firmware for special mission commands
- Changed landing gear to electric retractable
- Added external LED status lights
- Added external USB connector (to be able to upload new waypoint mission)
- Added video transmission
- Added Walkera gimbal (G-2D plastic)
- Added FireFly 6S action camera from HawkEye
- Added canopy for protection of the electronic components

The mission lasted for 9 minutes. The maximum flight height was
250 meters above home point. The flight distance was 4.5 km.
The power consumption was 30% of a 6S 8AH battery (from Multistar)
(Posted on 2/22/2019)
4months in use Review by Duane
Price
Shipping
Quality
I have had my H-1 for a few months. have a Holybro controller and Jumper have has some learning to do. But really enjoy flying my BlackBeauty (Posted on 2/7/2019)
hover 1 Review by George02
Shipping
Quality
Price
just received it yesterday, hover 1 with pixhawk 2.1 is a good combo, i also see the video on facebook that the hover 1 is eauipped with a rtk system and reach a centimeter accuracy, also want to place one. (Posted on 3/27/2018)
Awesome quad! Review by Shaun
Shipping
Quality
Price
This has replaced our larger units for photogrammetry. Pushing 50min with a Sony A6300 camera, amazing. Best flying quad yet! (Posted on 3/26/2018)
hover 1 Review by Allen
Quality
Price
Shipping
a long flight time quadcopter,flight time about 1 hour, the quadcopter is foldable, so it is convenient to carry (Posted on 8/8/2017)
hover 1 Review by Fitch
Quality
Price
Shipping
the purpose for this quad is agriculture and mapping, so i need one quadcopter that has a flight time of 30-60 minutes with a GoPro sized gimbal on it. this Hover 1 can fly more than 50 minutes, and the folding frame is comvenient for storage and transportation. (Posted on 6/19/2017)
hover 1 with pixhawk Review by jarednr
Price
Shipping
Quality
A good long flight time quadcopter that i am looking for, can fly about 50 minutes as described. (Posted on 4/26/2017)
H1 Review by Oleg
Price
Shipping
Quality
I have received the Hover 1, with the pixhawk flight control, also with one 6s 12500mAh battery, and the flight time reached 65 minutes as described (Posted on 3/22/2017)
hover 1 Review by daveip
Shipping
Quality
Price
I have built the Hover 1 and am quite impressed, use the 6s 9500mah battery, flight time about 55 minutes. satisfy with the quadcopter ,and also thanks for the good service of foxtech. (Posted on 3/17/2017)
