Note: GAIA 160 Elite Pro 2400W Hybrid drone is out of production.

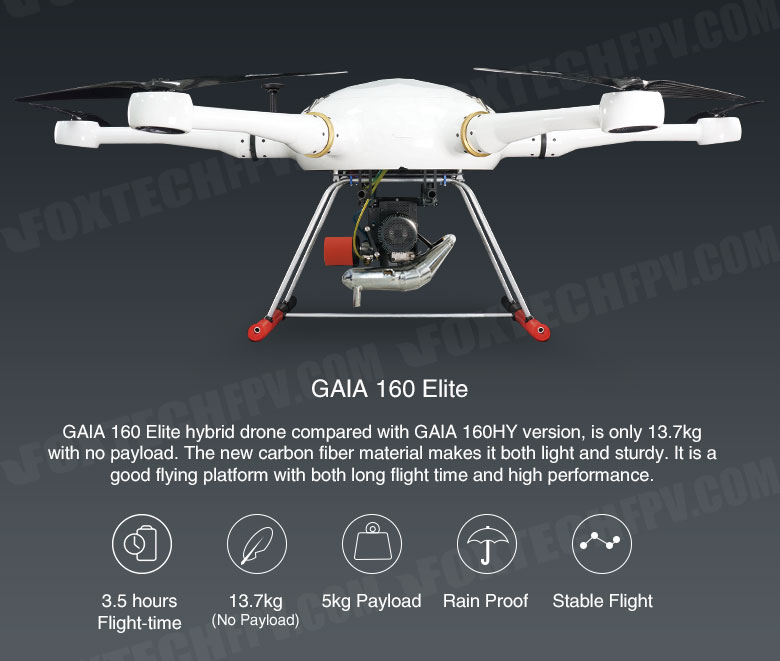

This is GAIA 160 Elite hybrid drone upgrade version, in which we update the fuel tank to 7L and the fuselage is more stronger. The take off weight of this hybrid drone is only 13.7kg with no payload. The high strength and high performance makes the drone adaptive to extreme weather conditions, e.g 17m/s wind, -40℃ low temperature, +40℃ high temperature, heavy rain, fog etc. The closed fuselage structure protects GAIA 160 Elite from the rain and dust, and also protect other load equipments like flight control and battery.
The power system ensures large loading capacity and a very stable flight performance. Equipped with the combo of Supreme 2985 propeller and T-Motor U8 Lite, the efficiency can be boosted by 5% compared with the previously used Supreme 2880T propeller. Gaia 160 Elite has good power redundancy, it can still fly or land in case one propeller or motor is gone.

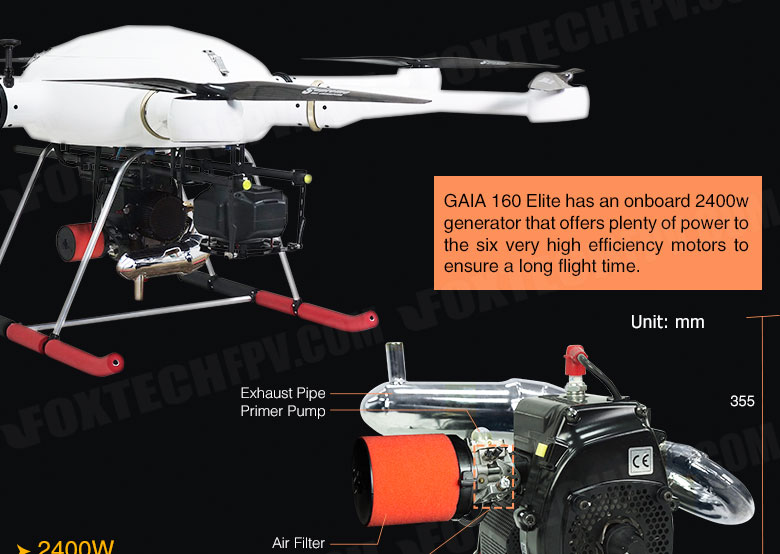

The highlight of GAIA 160 Elite is the gasoline-electric hybrid power system. GAIA 160 Elite has an onboard 2400w generator that offers plenty of power to the six very high efficiency motors to ensure a long flight time. The flight time is 3.5 hours with 7L fuel(19.7kg take-off weight), and 3 hours with 3kg fuel. An internal combustion engine consumes gasoline and spins a generator to ensure a 48V output. Besides this, a 12S lipo battery package is also installed onboard to offer emergency back-up power for quick climbing and quick maneuvering.
NOVA-2400 generator system is a high efficiency, high output and very light generator. The continuous output power of this generator is 2400w, and it is suitable for high payload or working at high altitude. Max taking off weight of Gaia 160 by using 2400w generator reaches 23kg.
GAIA 160 Elite hybrid drone is also installed with redundancy flight controllers, three GPS and a full range of optional equipments like RTK GPS, 20km datalink, parachute, secondary radio control and more to make this drone very reliable and very safe.
A longer flight time coupled with good stability and high performance of GAIA 160 Elite opens a wide range of new commercial possibilities for businesses such as inspection of offshore platforms, search and rescue, power line inspection and survey etc.
Specifications:
Version: Gaia 160 Elite 2400W

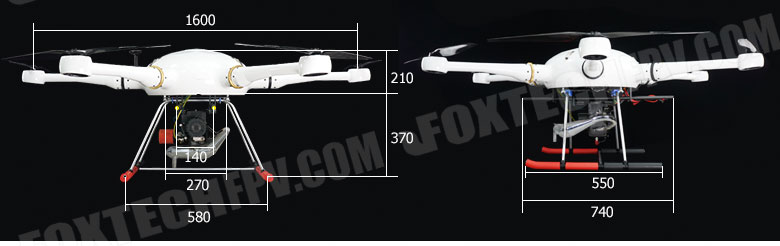

Wheelbase: 1530mm
No payload weight: 13.7kg
Take-off Weight: 22.5kg
Flight time: 3.5hours(7L Fuel)(19.7kg take-off weight)
Max. Flying Speed: 14m/s
Max. Climbing Speed: 5m/s
Max. Descent Speed: 4m/s
Suggested Flight Altitude: 2000m
Voltage: 48V
Generator output: 2.4kw(continuous); 2.4kw/1000m,1.9kw/1500m,1.8kw/2000m
Generator weight: 4.2kg

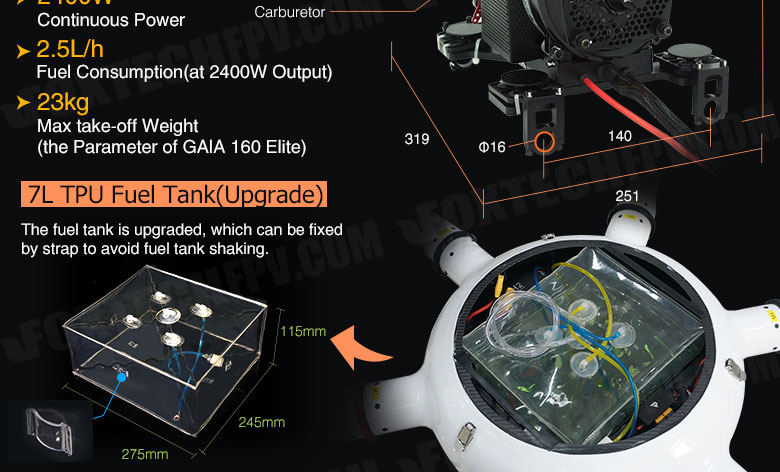

Fuel tank: 7L
Fuel consumption: 2.5L/H(Max))(at 2400W output)
Working Temperaure: -10℃ ~ +40℃
Back up battery: 2x 6S 5000mah
Features:
- Gaia 160 Elite has good power redundancy. Hexa-copter can still fly or land in case one propeller or motor is gone.
- Gaia 160 Elite's main body is made of full carbon fiber featuring light weight and high strength. Gaia 160 Elite adapts to extreme weather conditions, e.g 17m/s wind, -10℃ low temperature, +40℃ high temperature, heavy rain, fog etc.
- Gaia 160 Elite uses cutting edge technologies on the power system, its motors, ESCs and propellers are all optimized and tested for long duration and long range flight.
- Gaia 160 Elite's generator module is isolated from other electric equipments giving advantages for maintenance, working stability and safety.
- Gaia 160 Elite uses flight controllers with triple redundancy. 3X IMU, 3X GPS and 3X Mag sensor. Both A3 PRO and Pixhawk 2.1 are all proved reliable and widely used on professional drones.
- All Plugs used on Gaia 160 Elite are anti-spark type, all wires are optimized for long duration flight.
- Gaia 160 Elite is rain-proof, it’s possible to fly in mid moderate rain.
Your Purchase Includes:
Pixhawk Cube Orange RTF:
1x GAIA 160 Elite Frame
1x 2400W Generator
1x 7L Fuel Tank
1x Generator Control Unit
6x T-MOTOR U8 Lite KV85
3x Foxtech Supreme CF Propeller 2985
6x T-MOTOR Flame 60A ESC
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
2x Foxtech 6S 5000mAh Battery
1x Tools(fuel mixer, generator starter with 3s lipo etc.)
1x Assembly and Fly Test Package
1x NOVA-2400 Generator Maintenance Kit(for free)
1x Liquid Level Display
1x Hand pump
1x Foxtech Supreme CF Propeller 2985(for free)
A3 Pro+Lightbridge 2 RTF:
1x GAIA 160 Elite Frame
1x 2400W Generator
1x 7L Fuel Tank
1x Generator Control Unit
6x T-MOTOR U8 Lite KV85
3x Foxtech Supreme CF Propeller 2985
6x T-MOTOR Flame 60A ESC
1x DJI A3 Pro Flight Control
1x DJI Lightbridge 2
1x Foxtech GPS Folding Antenna Mount Holder for GAIA 160 Elite
2x Foxtech 6S 5000mAh Battery
1x Tools(fuel mixer, generator starter with 3s lipo, etc.)
1x Assembly and Fly Test Package
1x NOVA-2400 Generator Maintenance Kit(for free)
1x Liquid Level Display
1x Hand pump
1x Foxtech Supreme CF Propeller 2985(for free)
A3 Pro/DA16S+ RTF:
1x GAIA 160 Elite Frame
1x 2400W Generator
1x 7L Fuel Tank
1x Generator Control Unit
6x T-MOTOR U8 Lite KV85
3x Foxtech Supreme CF Propeller 2985
6x T-MOTOR Flame 60A ESC
1x DJI A3 Pro Flight Control
1x DA16S+ Radio Controller
1x Expansion Module for DJI Flight Controller
1x Foxtech GPS Folding Antenna Mount Holder for GAIA 160 Elite
2x Foxtech 6S 5000mAh Battery
1x Tools(fuel mixer, generator starter with 3s lipo etc.)
1x Assembly and Fly Test Package
1x NOVA-2400 Generator Maintenance Kit(for free)
1x Liquid Level Display
1x Hand pump
1x Foxtech Supreme CF Propeller 2985(for free)
TAURUS-2 RTF:
1x GAIA 160 Elite Frame
1x TAURUS-2 Flight Control System
1x 2400W Generator
1x 7L Fuel Tank
1x Generator Control Unit
6x T-MOTOR U8 Lite KV85
3x Foxtech Supreme CF Propeller 2985
6x T-MOTOR Flame 60A ESC
1x Foxtech GPS Folding Antenna Mount Holder for GAIA 160 Elite
1x Tools(fuel mixer, generator starter with 3s lipo etc.)
1x Assembly and Fly Test Package
1x NOVA-2400 Generator Maintenance Kit(for free)
1x Liquid Level Display
1x Hand pump
1x Foxtech Supreme CF Propeller 2985(for free)
Optional:
Remote Controller Channel Expansion Kit for Lightbridge 2
DA16S+ Radio Controller for AheadX Flight Controller (for Taurus-2/LEO Combo)
ASHIL II Flight Simulation System (for Taurus-2/LEO Combo
