GAIA 160MP-Heavy Lift Drone ARF Combo

SKU: S70713

Availability: In stock

Weight:1g

$3,466.00

Reward points Earn you 3466 reward points.

$3,466.00
Qty:

Note: The default shipping method of GAIA 160MP is EMS.

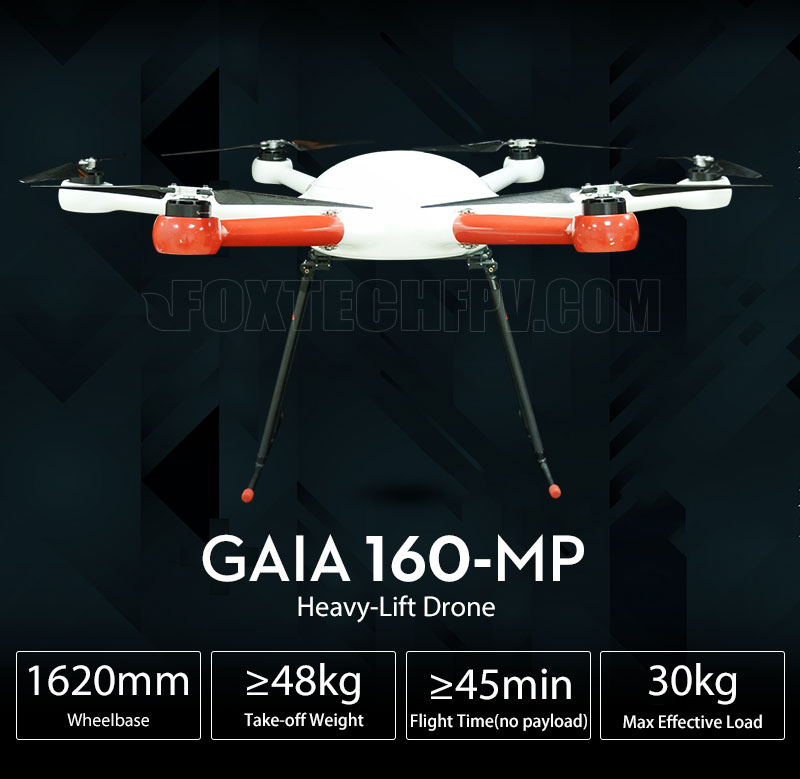

GAIA 160MP is a multipurpose heavy-lift platform. GAIA 160MP Heavy Lift hexacopter is sturdy and has very good stability. GAIA 160MP is made of carbon fiber material which features light weight and high strength, and only the cover is made of glass fiber.The arm of GAIA 160MP is pluggable, it can be locked with the quick locking hooks. This detachable design makes it easy to transport and quick to setup. GAIA 160MP heavy-lift drone is equipped with powerful motor and high efficiency 30 inch propeller to ensure long flight time, this heavy-lift drone is able to carry a lot more weight than your typical quadcopter, max thrust of one rotor can reach 13kg. GAIA 160MP is equipped with dual folding landing gear system, it has enough space between the center board and the ground. So this strong body can be equipped with many equipments, like searchlights and loading box,and can be applied in fields like reconnaissance mission, emergency rescue etc. Besides this, GAIA 160MP also can be used for professional filming and aerial photography, this GAIA 160MP can load with DJI Ronin 2 gimbal, which is compatible with many mainstream DSLR and professional cameras with cinema grade glass, like RED Dragon, Canon C300 and Sony FS7 etc. The motor and ESC adopt the water-resistant design, and can be applied in different weather conditions. Also the closed fuselage structure can protect GAIA 160-MP from the rain and dust, and also make it easy to care for.





Specifications:

Version: Multipurpose heavy-lift drone
Wheelbase: 1600mm
Frame Weight: 5.8kg
Take-off Weight: ≥48kg
Flight Time: ≥45min(4x6s 16000mah)
Max Effective Load: 30kg
Max flying Speed: 10m/s
Max Lifting Speed: 5m/s
Max Descent Speed: 4m/s
Max Angle of Inclination: 45°
Suggested Flight Altitude: ≤500m
Working Temperature: -10 ~ +55 ℃
Hover Precision: Vertical Direction ±0.5m, Horizontal Direction:±1.5 m



Features:

- Closed fuselage structure,high strength,rain resistance
- Large load space,more stable flight
- Long flight time
- Powerful and high efficiency power system
- Convenient operation,easy maintenance




Your Purchase Includes:

NO FC Combo:

-1 x GAIA 160MP hexacopter frame
-6 x Foxtech 8120 100KV FOC ESC HV Combo
-3 x 3010 Carbon Fiber Propeller
-1 x Dual Landing Gear
-1 x Plug/Cable/Wires/Shrink Tubing etc



N3 Combo:

-1 x GAIA 160MP hexacopter frame
-6 x Foxtech 8120 100KV FOC ESC HV Combo
-3 x 3010 Carbon Fiber Propeller
-1 x DJI N3 flight controller
-1 x Dual Landing Gear
-1 x Plug/Cable/Wires/Shrink Tubing etc


A3 Combo:

-1 x GAIA 160MP hexacopter frame
-6 x Foxtech 8120 100KV FOC ESC HV Combo
-3 x 3010 Carbon Fiber Propeller
-1 x DJI A3 flight controller
-1 x Dual Landing Gear
-1 x Plug/Cable/Wires/Shrink Tubing etc


Options:

- Flight Controller: DJI N3/DJI A3
- Propeller: Foxtech Supreme C/F 3010T propeller/Foxtech Supreme C/F 3010F propeller/Foxtech Optimal C/F 3010F propeller
- Battery: Foxtech 6s 16000mah lipo battery
- Remote Controller: DJI Lightbridge 2/Futaba 14SG Radio Controller
- PDB: EFT V3 High Current Power Distribution Board
- Gimbal: Ronin-MX

Notice: the appointed delivery methods is Fedex only, please contact:[email protected] or customer online service about the freight difference with other delivery methods.
