FOXTECH SABER 220 VTOL Delta Wing

SKU: 2003251

Availability: In stock

Weight:1g

Volume Weight: 67KG

$4,159.00

Reward points Earn your 4159 reward points.

$4,159.00
Qty:

Diamond 6S 30000mAh Battery Low Voltage Warning: Please send a QRTL command if the voltage drops to near 20.4V or send a Q-LAND command if the voltage drops to 19V, or the battery will be drained out very soon!!

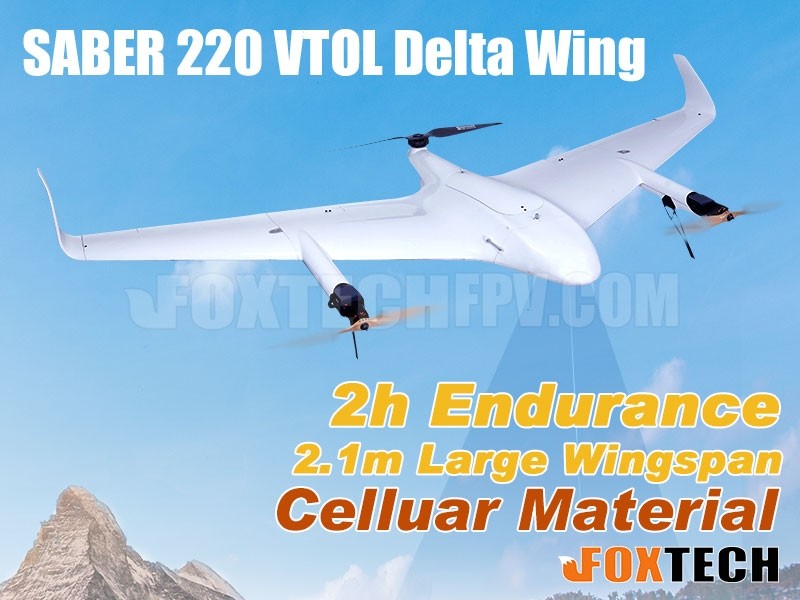

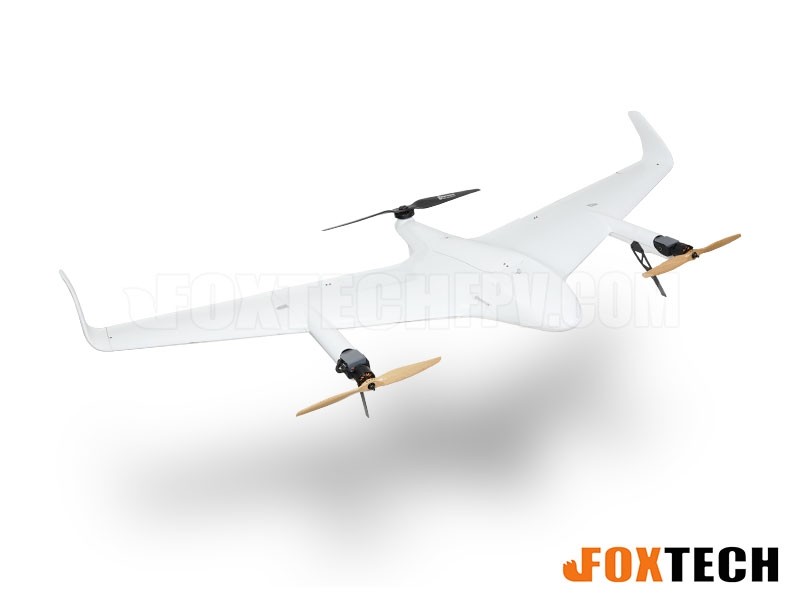

The SABER 220 VTOL Delta Wing is an excellent performance, long-endurance delta wing that is exquisitely made of cellular materials, which builds up a firm inner structure to support light, compact frame. It features aerodynamic shape with a large wingspan of 2.1m.

The flying distance for each flight reaches up to 140km with a endurance of 2 hours. It hovers for an incredible 34 minutes using a Foxtech Diamond 6S 30000mAh semi-solid state lipo battery.

What set Saber apart from normal delta wing VTOL is its differential rudder function, which helps level the drone during mapping and surveying. In VTOL mode, the front two tilting motors will tilt to a certain level to compensate the wind. In that way, it keeps your plane stable and ensures safety during take-off and landing.

With modular and quick-assemble design that allows you to modify or replace a malfunctioning part real easy, it shortens assembly time for each flight.

Switch between modes at any moment if you want it to hover to identify and locate faults during an inspection and then resumes to 19m/s high cruising speed.

There are two nose types for SABER: mapping-camera-configured nose and gimbal-camera-configured nose. Each combo (including no camera combo) contains both types of SABER nose for you to switch according to your needs.

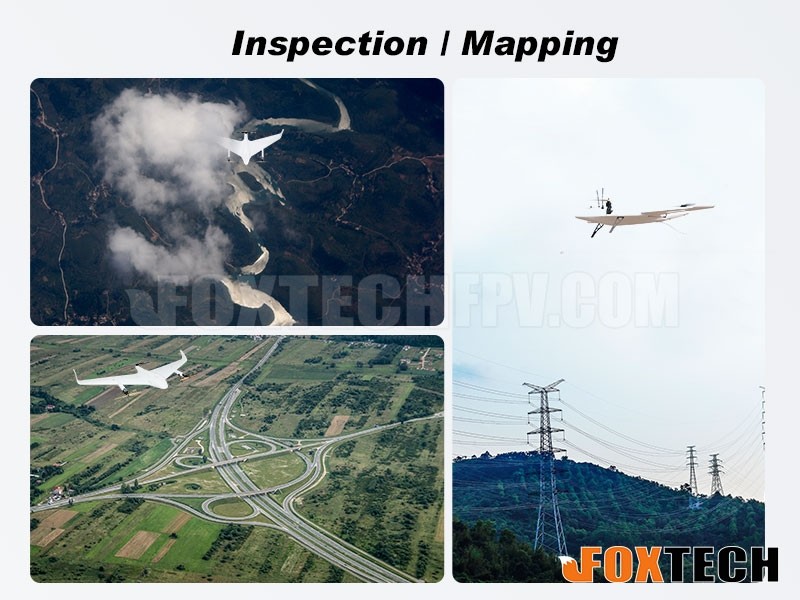

Loaded with EH314, Seeker-10, Map-01 and Map-A7R, it can be applied in fields of inspection and mapping.

Note: Foxtech SABER 220 VTOL will be shipped 7 days later after the order is made, please contact us for specific delivery date.



Specifications:

Version: SABER 220 VTOL Delta Wing

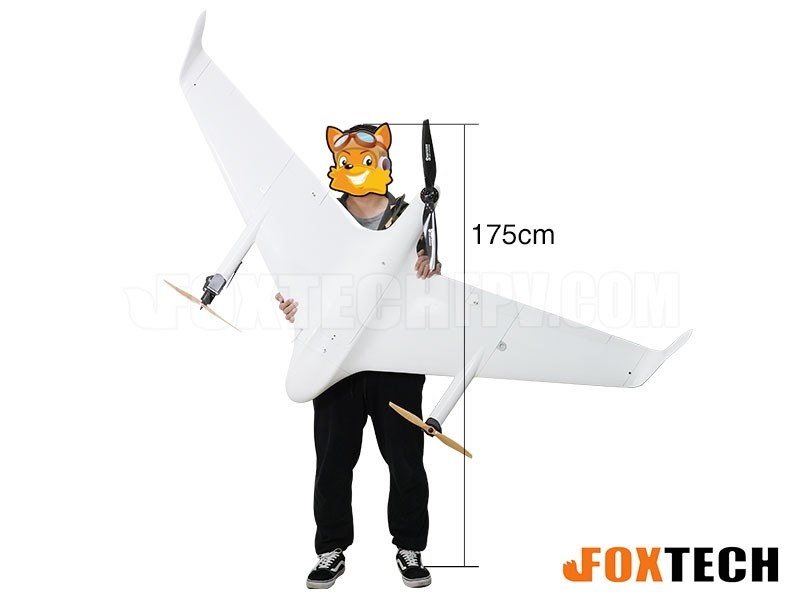

Wingspan: 2100mm

Length: 1000mm

Clearance to Ground: 7.5cm

Material: Cellular Materials, Glass Fiber, Carbon Fiber

RTF Weight: 3.8kg (no battery, no payload)

Max. Take-off Weight: 0~1000m/6.8kg; 2000m~3000m/6kg

Endurance:

 120 min--1x Diamond 6S 30000mAh Battery, no payload

  90min--1x 6S 25000mAh High Voltage Lipo Battery, no payload

  80min--1x 6S 22000mAh High Voltage Lipo Battery, no payload

Multirotor-hovering Endurance: 34 minutes(1x Diamond 6S 30000mAh Battery, no payload)

Suggested Max Payload: 400g(excluding battery)

Suggested Cruising Speed: 19m/s

Stall Speed: 16m/s

Max Fixed-wing Climb Rate: 5m/s

Max Fixed-wing Dive Rate: 5m/s

Max Bank Rate: 35°

Max Multirotor Speed(Up): 2.5m/s

Max Multirotor Speed(Down): 1.5m/s

Suggested Take-off Altitude:

0~3000m (6S 25000mAh High Voltage Lipo Battery/6S 22000mAh High Voltage Lipo Battery/Diamond 6S 30000mAh Battery)

Above 3000m (6S 25000mAh High Voltage Lipo Battery/6S 22000mAh High Voltage Lipo Battery)

Take-off/Landing: VTOL

Working Voltage: 24V

Working Temperature: -10℃-40℃

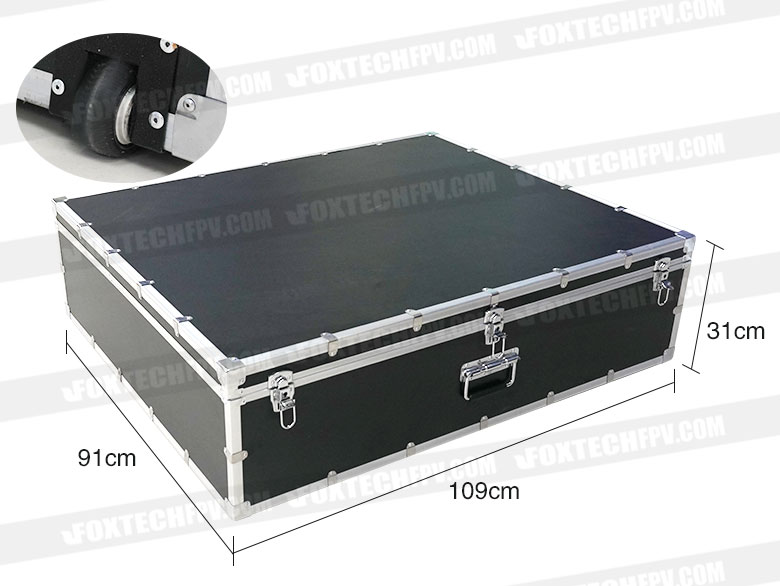

Carrying Case: 1090mm*910mm*310mm



Your Purchase Includes:

No Camera RTF Combo:

-1x SABER 220 VTOL Delta Wing Frame (with both types of nose)

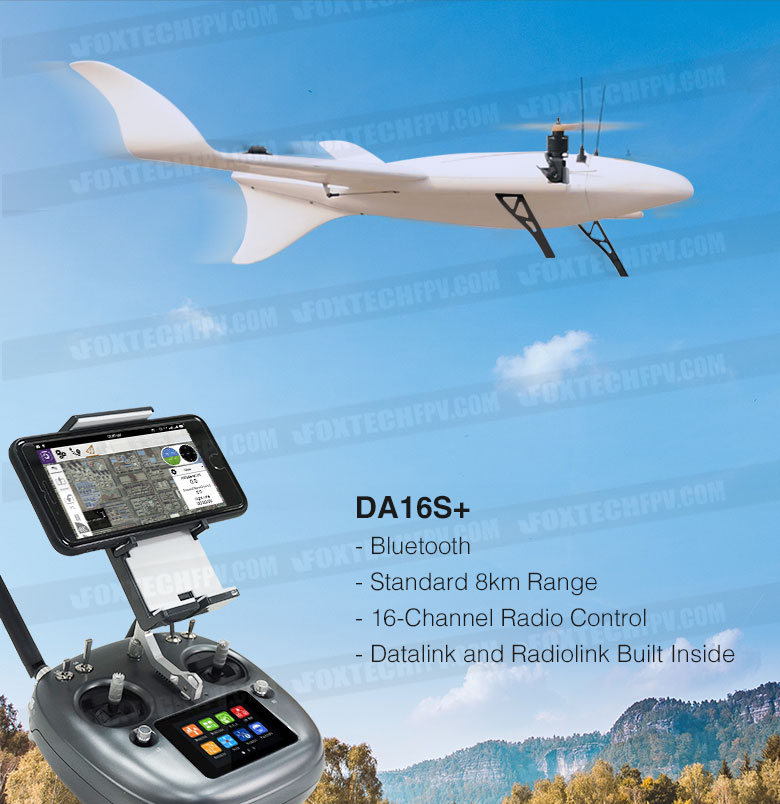

-1x Foxtech DA16S+ 16-Channel Radio Controller

-2x Tilt Motor

-1x Tail Motor

-2x Tilt ESC

-1x Tail ESC

-4x Servo

-1x (pair)14 inch Carbon Fiber Propellers for Tilt Motor

-1x (pair)14 inch Wooden Propellers for Tilt Motor(for free)

-1x 22 inch CW Polished Propeller for Tail Motor

-1x Pixhawk 2.1 Standard Set with Here 2 GNSS

-1x Hall Effect Sensor

-2x UBEC

-1x PX4 Air Speedometer

-1 x Plugs/Tube Clips/Wires/Shrink Tubes, etc

-1 x Screws and Nuts

-1x Assembling, tuned and Flying Test Service

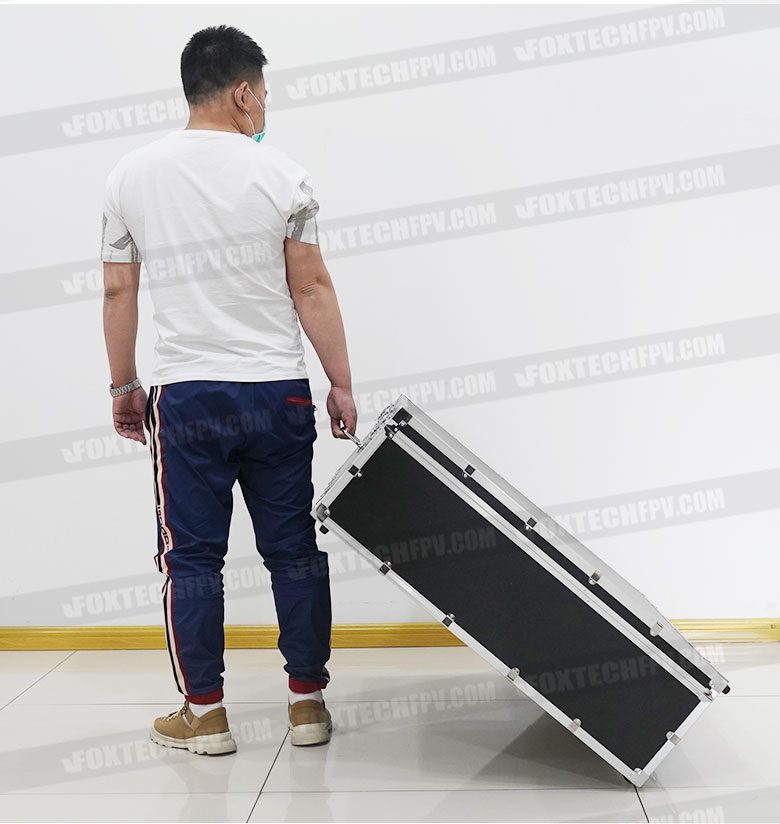

-1x Aluminum Carrying Case



Mapping RTF Combo (Map-01 Camera):

-1x SABER 220 VTOL Delta Wing Frame (with both types of nose)

-1x Foxtech Map-01 Mapping Camera-Free Shipping

-1x Foxtech DA16S+ 16-Channel Radio Controller

-2x Tilt Motor

-1x Tail Motor

-2x Tilt ESC

-1x Tail ESC

-4x Servo

-1x (pair)14 inch Carbon Fiber Propellers for Tilt Motor

-1x (pair)14 inch Wooden Propellers for Tilt Motor(for free)

-1x 22 inch CW Polished Propeller for Tail Motor

-1x Pixhawk 2.1 Standard Set with Here 2 GNSS

-1x Hall Effect Sensor

-2x UBEC

-1x PX4 Air Speedometer

-1 x Plugs/Tube Clips/Wires/Shrink Tubes, etc

-1 x Screws and Nuts

-1x Assembling, tuned and Flying Test Service

-1x Aluminum Carrying Case



Inspection RTF Combo (SEEKER-10 Gimbal Camera):

-1x SABER 220 VTOL Delta Wing Frame (with both types of nose)

-1x SEEKER-10 V2 HD 10X Optical Zoom Camera with 3-axis Gimbal

-1x Foxtech DA16S+ 16-Channel Radio Controller

-2x Tilt Motor

-1x Tail Motor

-2x Tilt ESC

-1x Tail ESC

-4x Servo

-1x (pair)14 inch Carbon Fiber Propellers for Tilt Motor

-1x (pair)14 inch Wooden Propellers for Tilt Motor(for free)

-1x 22 inch CW Polished Propeller for Tail Motor

-1x Pixhawk 2.1 Standard Set with Here 2 GNSS

-1x Hall Effect Sensor

-2x UBEC

-1x PX4 Air Speedometer

-1 x Plugs/Tube Clips/Wires/Shrink Tubes, etc

-1 x Screws and Nuts

-1x Assembling, tuned and Flying Test Service

-1x Aluminum Carrying Case



Optional:

Foxtech Diamond 6S 30000mAh Semi-solid State Lipo Battery

TATTU 22.8V 6S 25000mAh 10C High Voltage Lipo Battery

EH314 MINI 4K Zoom Camera with 3-axis Gimbal

Pixhawk Cube Orange Standard Set
