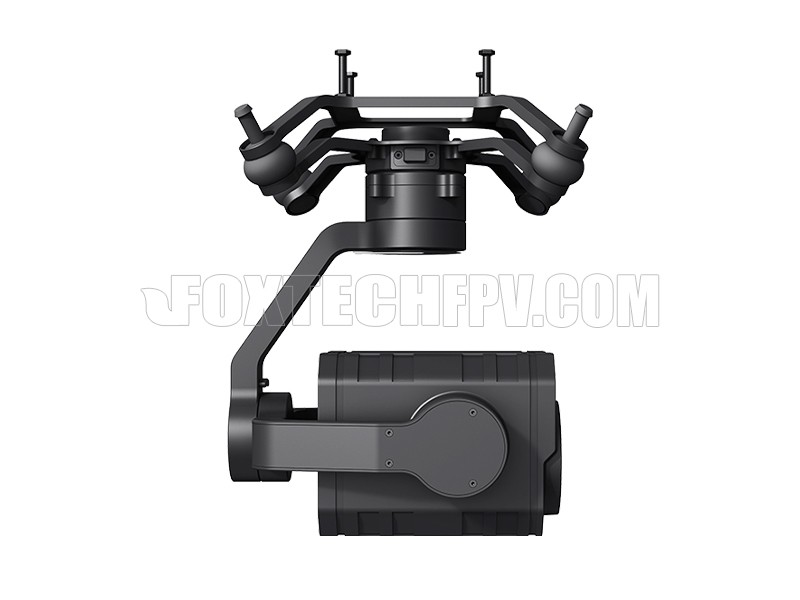

ZT30 AI-Track Thermal Imaging Camera with 3-axis Gimbal and 1200m Rangefinder

SKU: 2304250

Availability: In stock ( 11 )

Weight:4KG

$5,881.00

Reward points Earn your 5881 reward points.

Qty:

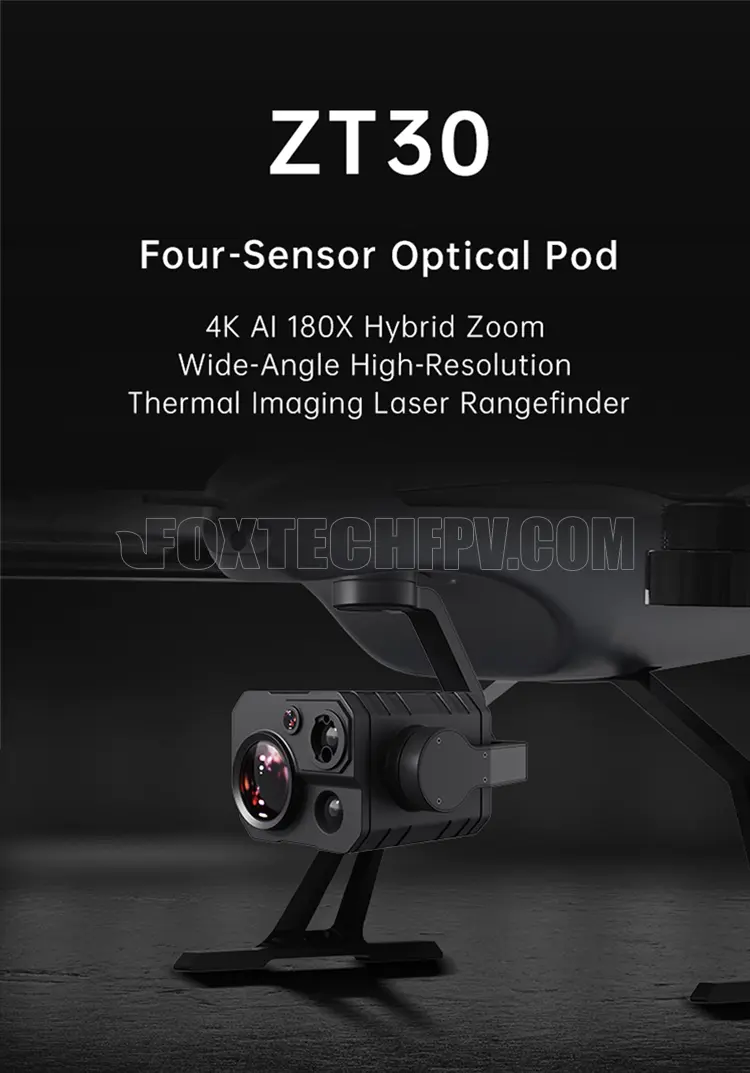

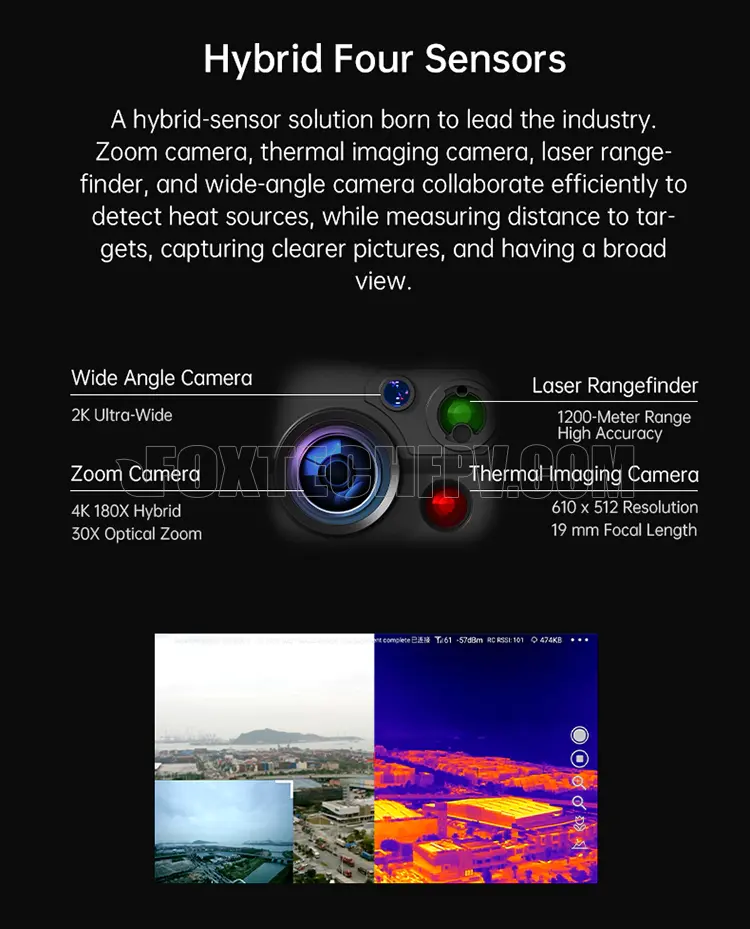

ZT30 integrating 4K optical zoom camera, 2K wide-angle camera, 640*512 thermal imaging sensor and 1200 m laser rangefinder, is an ideal platform for inspection and patrol, aerial filming, etc.

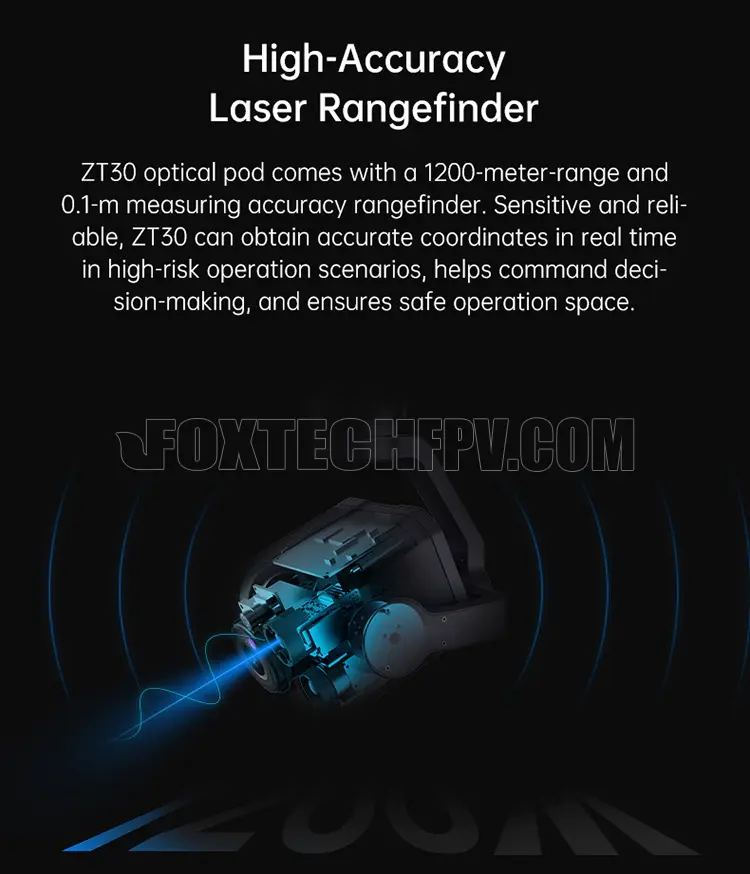

Coming with a 1200-meter-range and 0.1-m measuring accuracy rangefinder, ZT30 is very sensitive and reliable, and can obtain accurate coordinates in real-time in high-risk operation scenarios, helps command decision-making, and ensures safe operation space.

With built-in NPU neural network computing unit, ZT30 will be able to automatically identify people, vehicles, ships, and other moving targets. And through the cooperation of the gimbal attitude control and flight control system, it can realize autonomous identification, positioning, and even continuous tracking. With the automatic zoom function of the visible light camera, the target will always be in the center of the screen and maintain a clear and visible screen ratio.



Highlights:

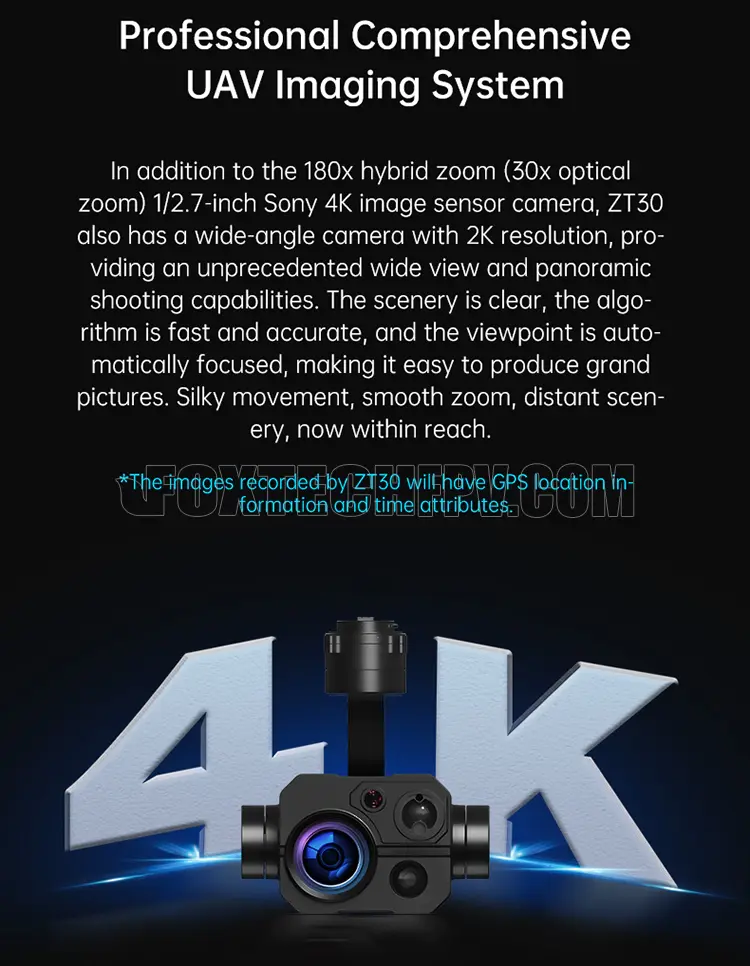

- 4K 30X Optical Zoom

- 1200 m Laser Rangefinder

- AI Object Identify & Tracking

- Temperature Measuring

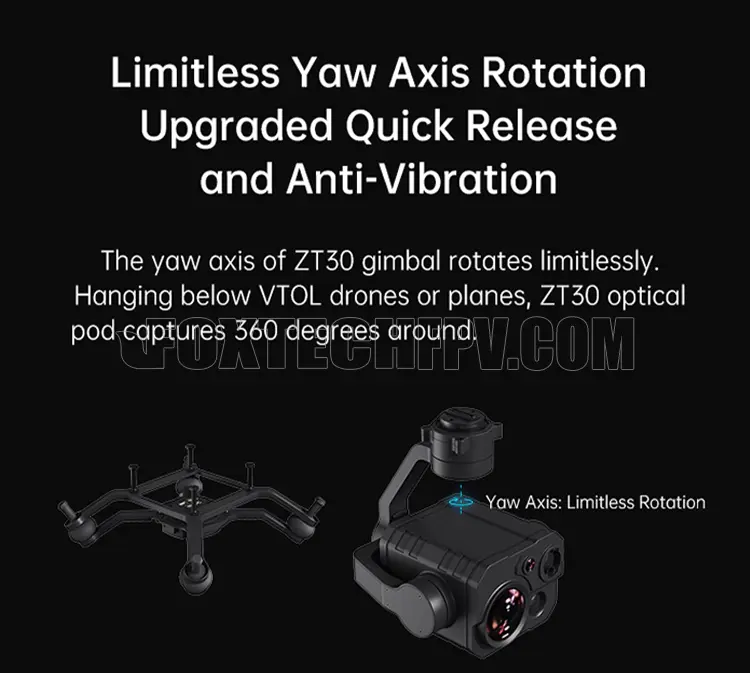

- 360° Unlimited Rotation

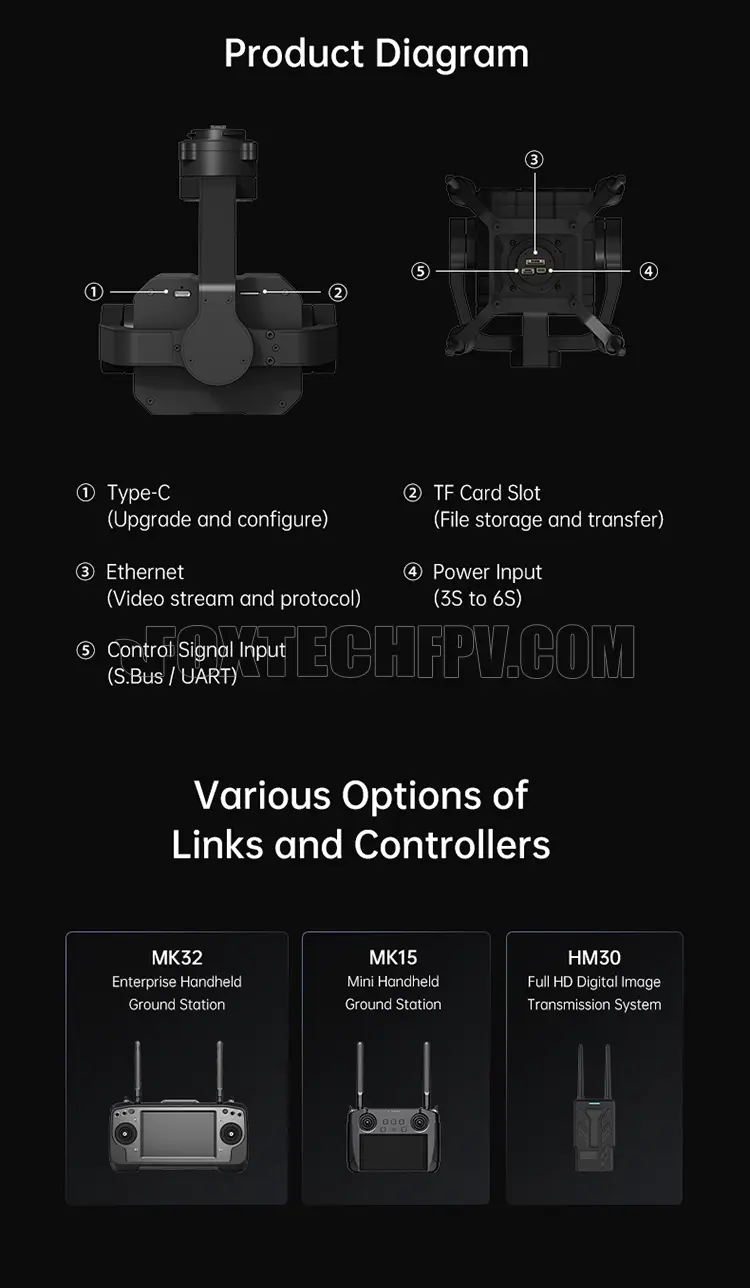

Specification Model: ZT30 Video Output Port: Ethernet Control Signal Input Port: - S.Bus, UART - UDP (Ethernet) High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll Working Voltage: 11 to 25.2 V Power Consumption: Average 9 W, Summit 20 W Waterproof Level: IP4X Working Temperature: -10 ~ 50℃ Dimension: 182*140*134.5 mm (including the quick release anti-vibration claw) Weight: 870 g (including the quick release anti-vibration claw)   ZT30 Quick Release Anti-Vibration Claw Dimension: 141*140*42.5 mm Weight: 104 g   Gimbal Angular Vibration Range: ±0.01° Controllable Pitch Angle: -90° to +25° Controllable Yaw Angle: 360° Roll Angle: -45° to +45°   Zoom Camera Lens: 30X Optical Zoom (180X Hybrid Zoom) Focal Length: 4.8% to 149 mm (±5%) Image Sensor: 1/2.7 Inch, 8 MP effective resolution Aperture: F1.3 to F4.8 (±5%) FOV: Horizontal 62° Video Recording Resolution: - 4K (4096 x 2160) @ 30 fps - 2K (2560 x 1440) @ 30 fps - 1080p (1920 x 1080) @ 30 fps - 720p (1280 x 720) @ 30 fps Still Photo Resolution: 4K (4096 x 2160)   Thermal Imaging Camera Resolution: 640 x 512 Digital Zoom: 2X Lens - Focal Length: 19 mm - Aperture: F1.1 - Fixed Focus - Athermalization Wavelength Range: 8 ~ 14 um Temperature Measuring Range - High Gain: -20 ~ +150℃ - Low Gain: 0 ~ +550℃ Temperature Measuring Accuracy - ±2℃ (-20 ~ +150℃) - ±3℃ (0 ~ +550℃) Temperature Measuring Mode - Point to Measurement - Full Screen Measurement   Wide Angle Camera Image Sensor: 1/2.8 Inch, 4 MP effective resolution Equivalent Focal Length: 21 mm FOV: Horizontal 88° Video Recording Resolution: 2K (2560 x 1440) @ 30 fps Still Photo Resolution: 2K (2560 x 1440) Range Finder Range: 5 ~ 1200 m Wavelength Range: 900 ~ 908 nm Resolution: 0.1 m Ranging Accuracy: - ±1 m (3 ~ 100 m) - ±1 + L*0.25% m, L=Length (100 ~ 600 m) Laser Pulse Frequency: 3 Hz Max Laser Power: 5 mW   General Camera Specs Video Storage Bitrate: 15 Mbps (H.265 codec) File Storage Format: FAT32 Image Format: JPG Video Format: MP4 Supported MicroSD Cards: MicroSD Class10, Max 128GB Still Photography Mode: Single Metering Mode: Evaluative metering
