FOXTECH BABY SHARK 260 VTOL New Folding Version

SKU: S200516

Availability: In stock

Weight:1g

$7,529.00

Reward points Earn your 7529 reward points.

$7,529.00
Qty:

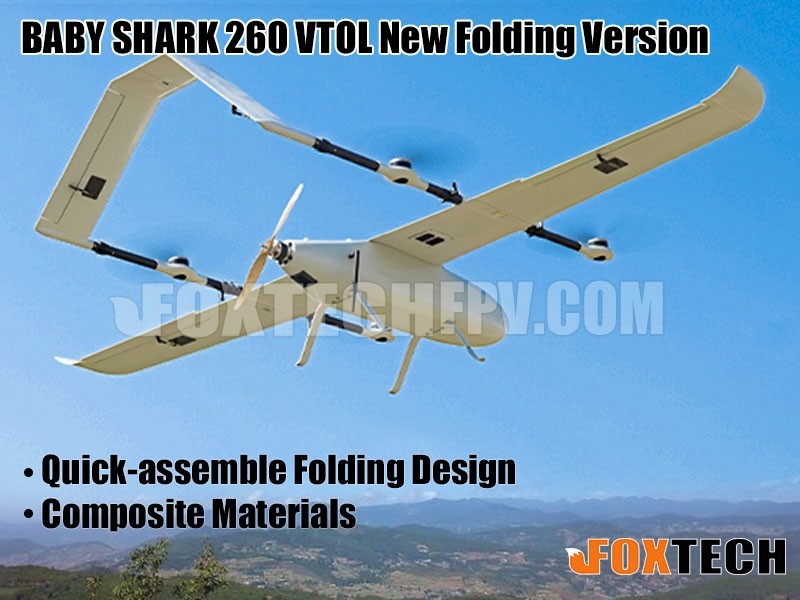

BABY SHARK 260 VTOL New Folding Version is compact and portable, easy to assemble and small enough to fit into the trunk of a car with the unfolded length and wingspan being 140cm*250cm, 100cm*90cm if folded. It adopts quick-assemble design that makes it easy to set up and transport.

BABY SHARK features a highly advanced aerodynamic design. It is made of composite materials, which features high strength and light weight. The fuselage is big enough to hold a flight controller, batteries or other devices.

It can take off and land vertically with only small areas needed. The frame of BABY SHARK is only 3.5kg, and max take-off weight is 13kg, the stall speed of the BABY SHARK is 16m/s, the highest speed is about 110km/h

We suggest to use two 6S 5000mah lipo batteries for VTOL mode, and two Diamond 6S 22000mAh Semi-solid State Lipo batteries for fixedwing mode.

Besides the batteries, motors, ESCs, propellers and other necessary configured equipments, it still has 2.4kg payload capacity left for zoom or mapping cameras.

BABY SHARK can perform long range inspection, survey and mapping etc.

Now for every Baby Shark purchase, you can get both 1 pare of spare propellers for VTOL Mode and 1x spare propeller cw for Tail Motor for free.





Specifications:

Version: BABY SHARK 260 VTOL Folding Version

Color: White

Material: Composites

Frame Weight: 3.5kg

RTF Weight: 6.7kg (no battery, no payload)

Max. Take-off Weight: 0~1500m/13kg; 1500m~3000m/11kg

Endurance:

2.5h (2xDiamond 6S 22000mAh Battery+2x6S 5000mAh Lipo Battery, no payload)

Suggested Max Payload: 1.3kg(excluding battery); 5.4kg (including battery)

Max Cruising Speed: 110km/h

Suggested Cruising Speed: 21-22m/s

Stall Speed: 16m/s

Max Bank Rate: 30°

Suggested Take-off Altitude: 0~3000m

Take-off/Landing: VTOL

Fixedwing/VTOL Working Voltage: 24V/48V

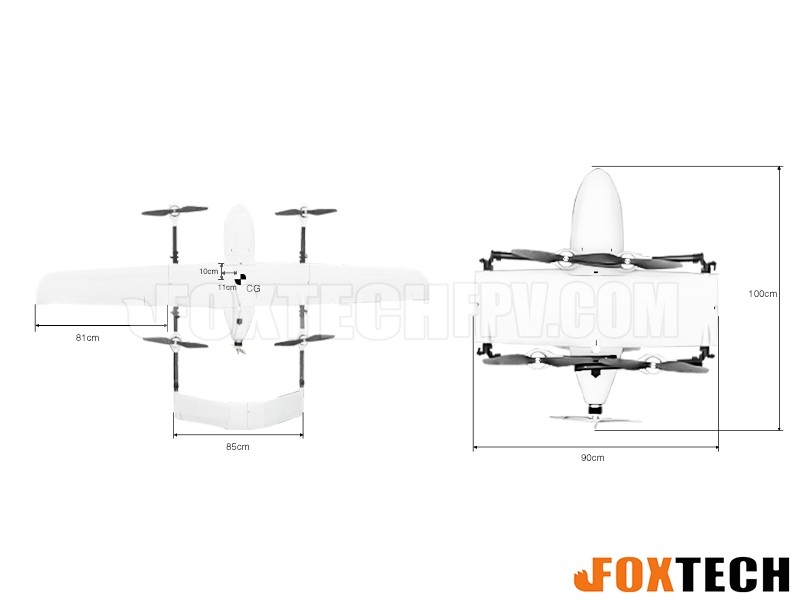

Unfolded Wingspan/Folded Size: 2500mm/900mm

Unfolded Length/Folded Size: 1400mm/1000mm



Your Purchase Includes:

Pixhawk RTF Combo (DA16S+ Combo):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x Px4 Air Speedometer
1x UBEC
1x Power Monitor Module

1x Pixhawk 2.1 Standard Set with Here 2 GNSS
1x DA16S+ Radio Controller
1x Carrying Case

1x Assembling, tuned and Flying Test Service



Pixhawk RTF Combo (T12 Combo):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode

2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC

1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)

4x Servo

1x Px4 Air Speedometer
1x ASSAN UBEC-8A
1x Power Monitor Module

1x Pixhawk 2.1 Standard Set with Here 2 GNSS
1x T12 12-Channel Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service



TAURUS-2 RTF Combo (DL900 Datalink Combo):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x UBEC

1x Taurus-2 Flight Control System for VTOL

1x DL900 Datalink
1x Carrying Case

1x Assembling, tuned and Flying Test Service



CUAV PIXHACK V5+ RTF Combo (DA16S+ Combo):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x Px4 Air Speedometer
1x UBEC
1x Power Monitor Module

1xCUAV PIXHACK V5+ Flight Controller

1xCUAV NEO V2 Pro
1x DA16S+ Radio Controller
1x Carrying Case

1x Assembling, tuned and Flying Test Service

Optional:

2x Foxtech Diamond 6S 22000mAh Semi-solid State Lipo Battery

2x 6S 5000mAh Lipo Battery

Manual Download

Mission Planner Menu Items Setting Tips

Firmware Upgrade History
