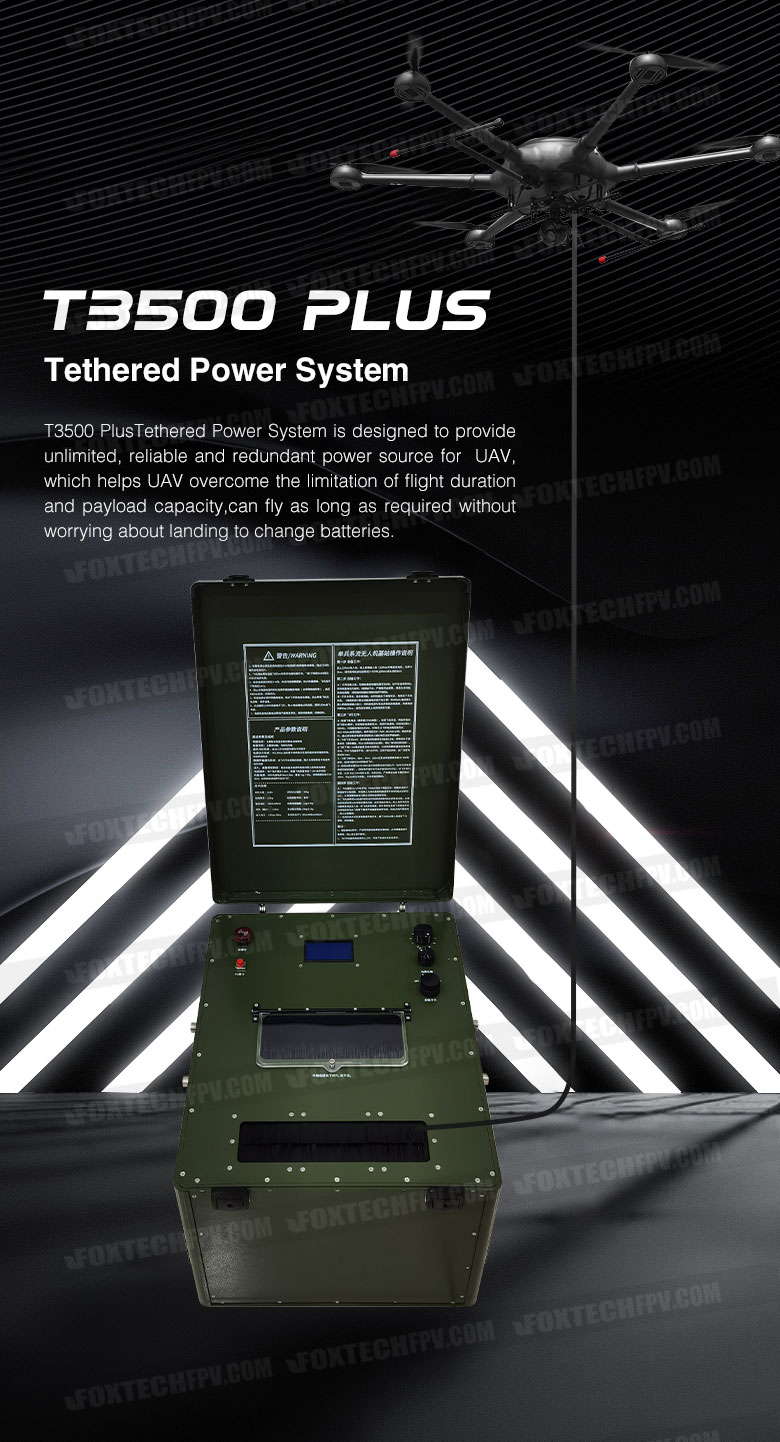

FOXTECH T3500 Plus Tethered Power System

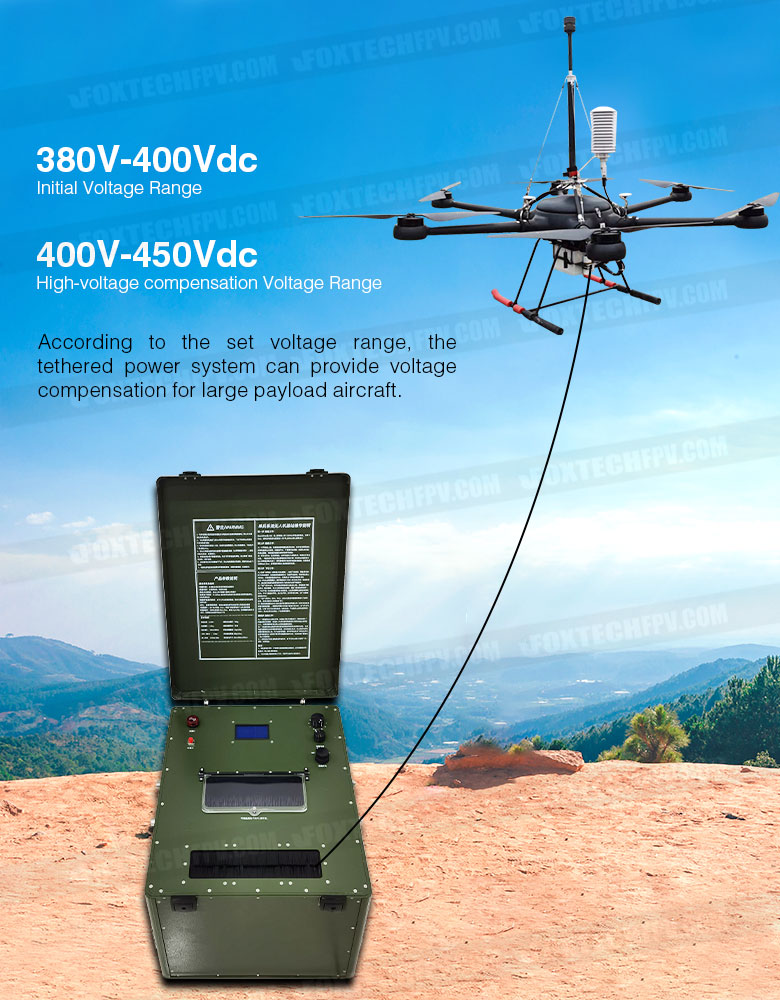

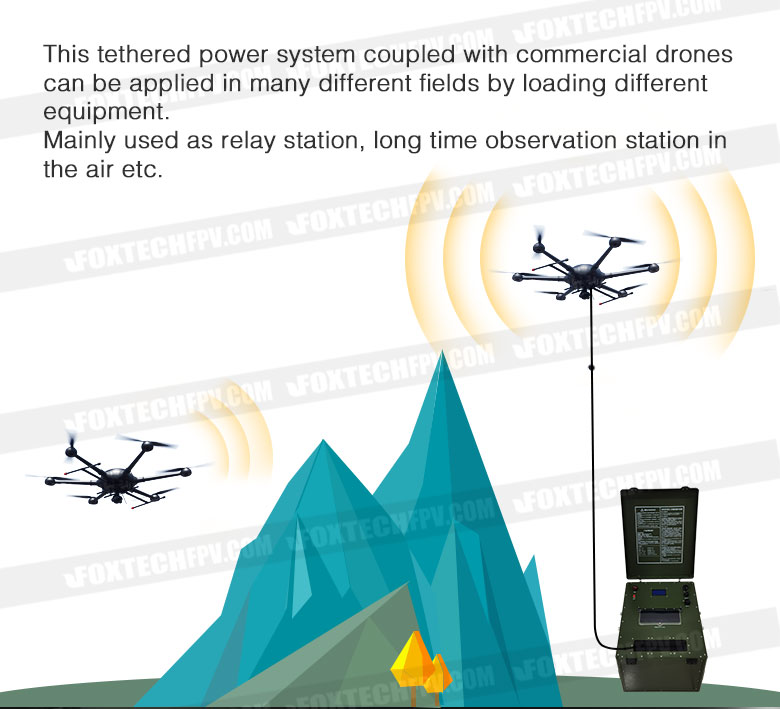

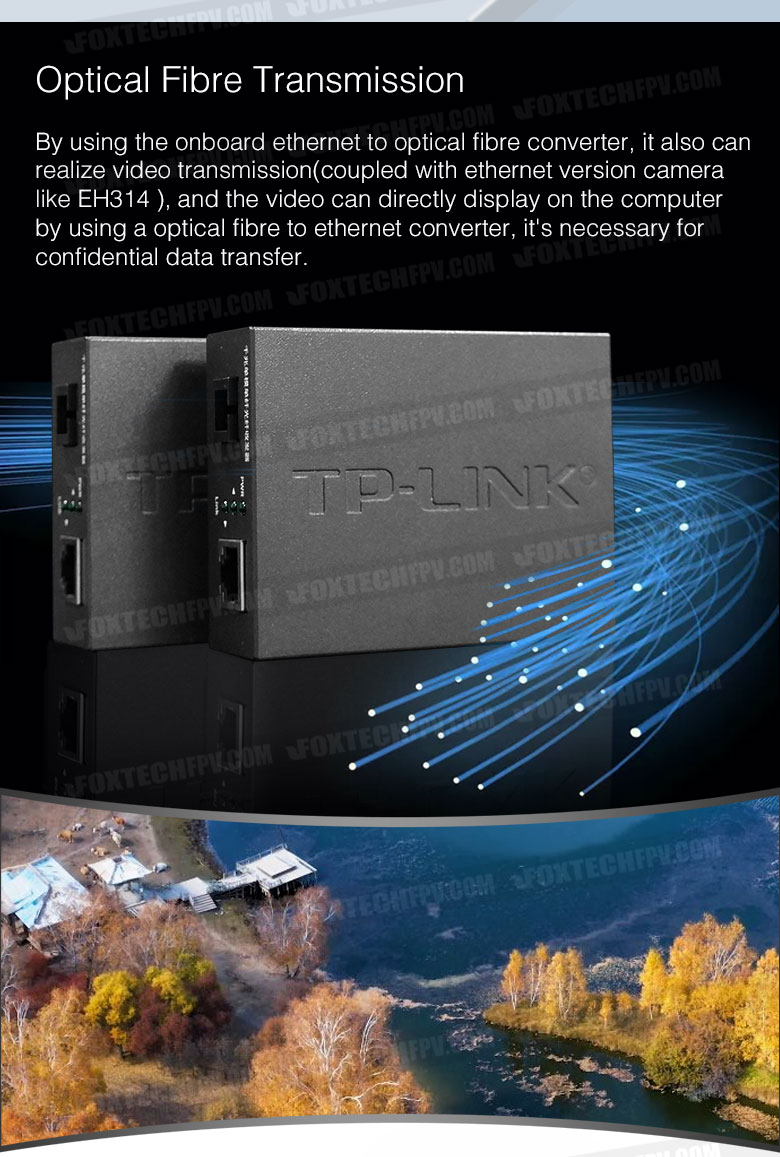

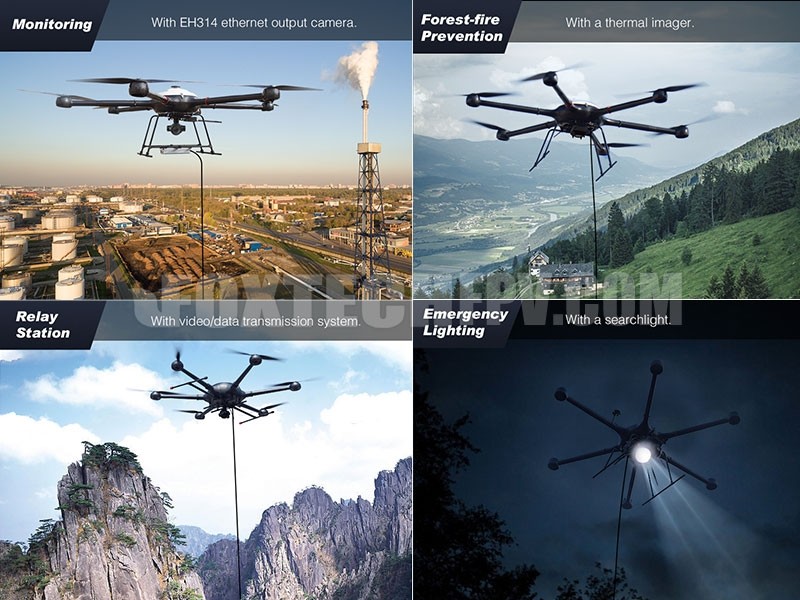

T3500 Plus Tethered Power System supporting high-voltage compensation and optical fibre transmission is designed to provide unlimited, reliable and redundant power source for drones, overcome the limitation of flight duration and payload capacity. T3500 Plus tethered power system coupled with commercial drones can be applied in many different fields by loading different equipment. Mainly used as relay station, long time observation station in the air etc.

Specification:

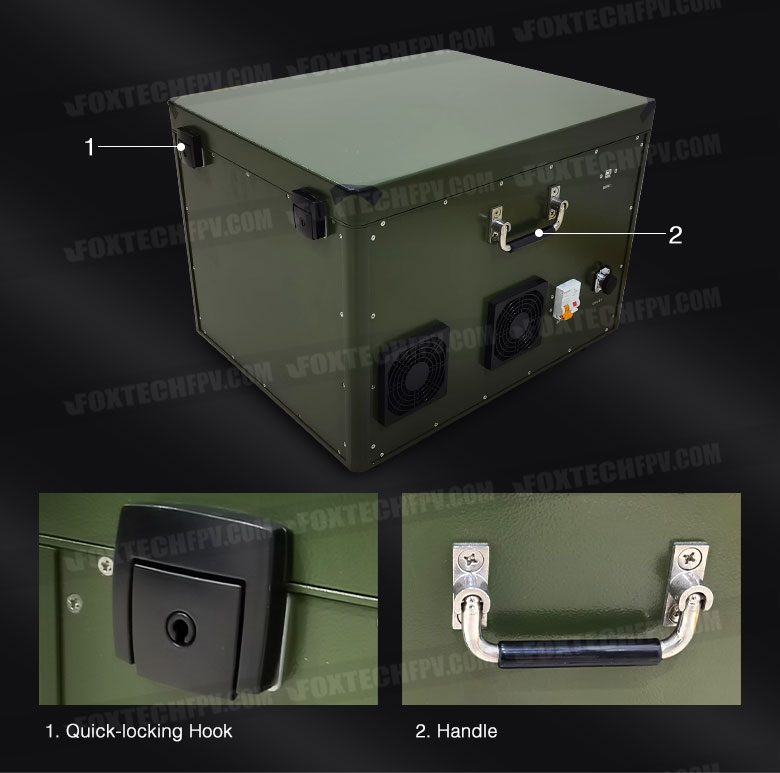

Ground Station Weight: 30kg

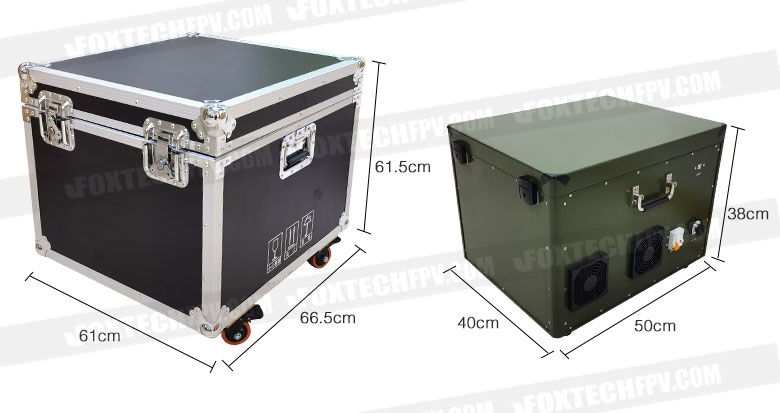

Ground Station Size: 50x40x35cm

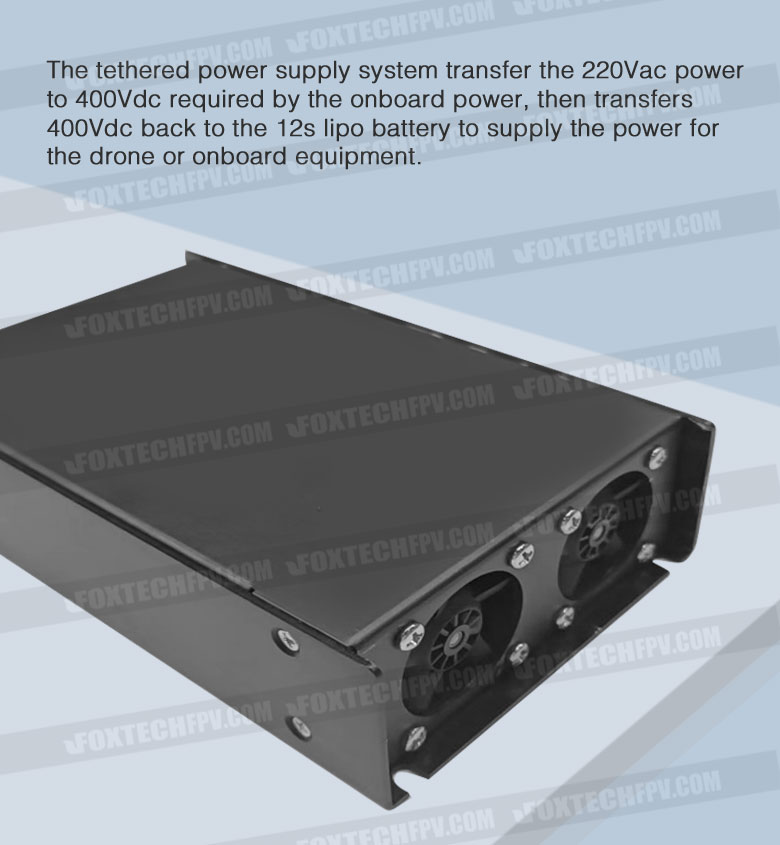

Onboard Unit Size: 18x4.5x11cm
Onboard Unit Weight: 1.15kg
Cable Weight: 1.8kg
Cable Length: 110m
Output Voltage: 51V
Output Current: 67A
Power: 3500W
Voltage Input: 220Vac 50Hz

Manual Download
