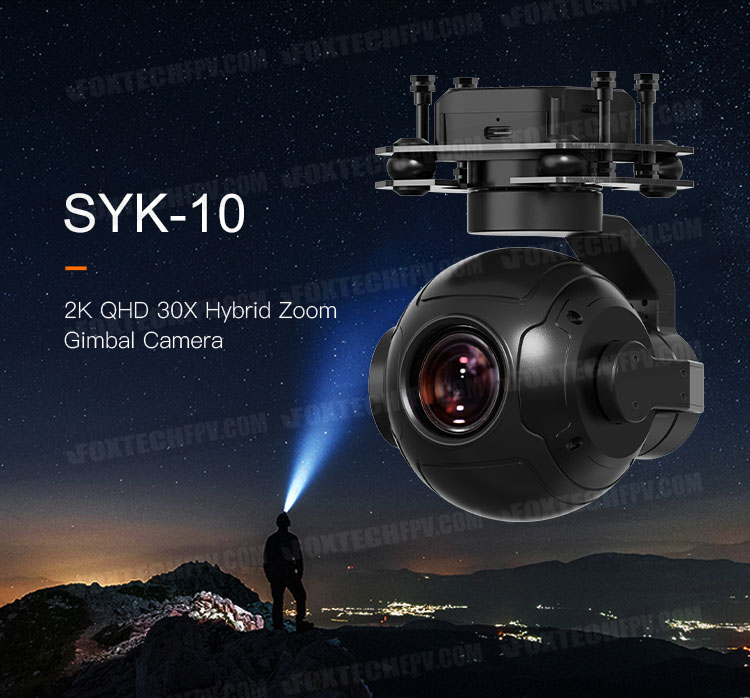

SYK-10 is a 10X optical zoom and 30X hybrid zoom with a 4MP CMOS and a 3-axis gimbal which supports FOC control to provide stable and clear images under various conditions.
It support S. Bus / PPM / UART and UDP control, and its jitter of the gimbal is about 0.01°. The storage space is up to 128G using Class 10 TF card.
With MK15 and a FPV APP, SYK-10 can easily connect to the controller and realize the real time adjustment of the attitude and function, as well as the viewing display.

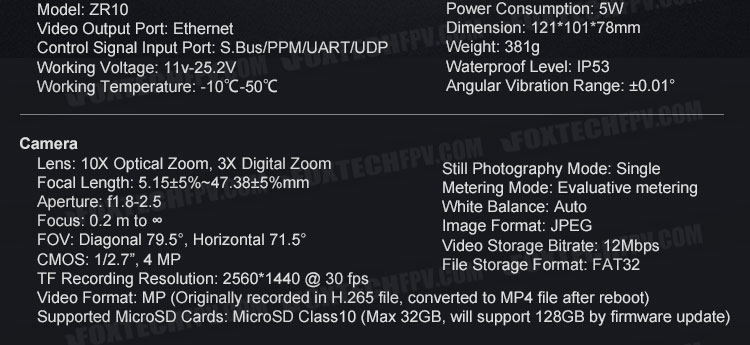

Specification:
Overall

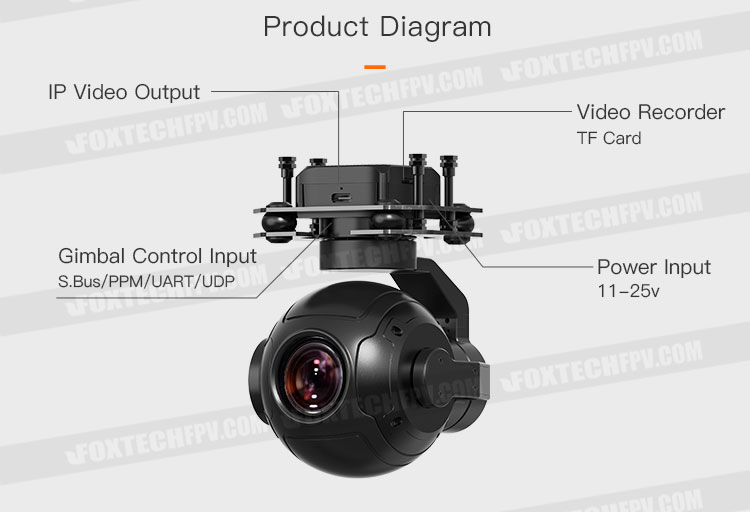

Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM 1 UART 1 UDP
Working Voltage: 11~25.2V
Power Consumption: 3W
Working Temperature: -10~50 °C
Waterproof Level: IP4X
Dimension: 121x101x78mm
Weight: 381 g

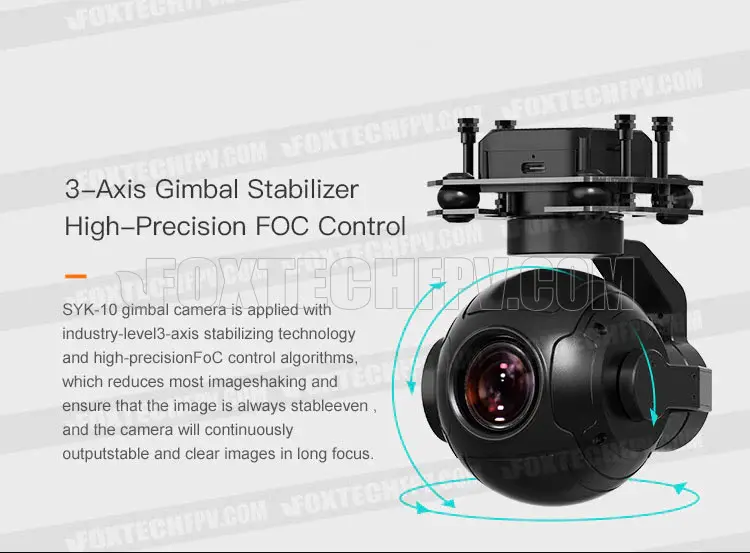

Gimbal:
Angular Vibration Range: 士0.01°
Controllable Pitch Angle: -90° ~ +25°
Mechanical Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -45° ~ +45°
Mechanical Yaw Angle: -90° ~ +90°
Camera:

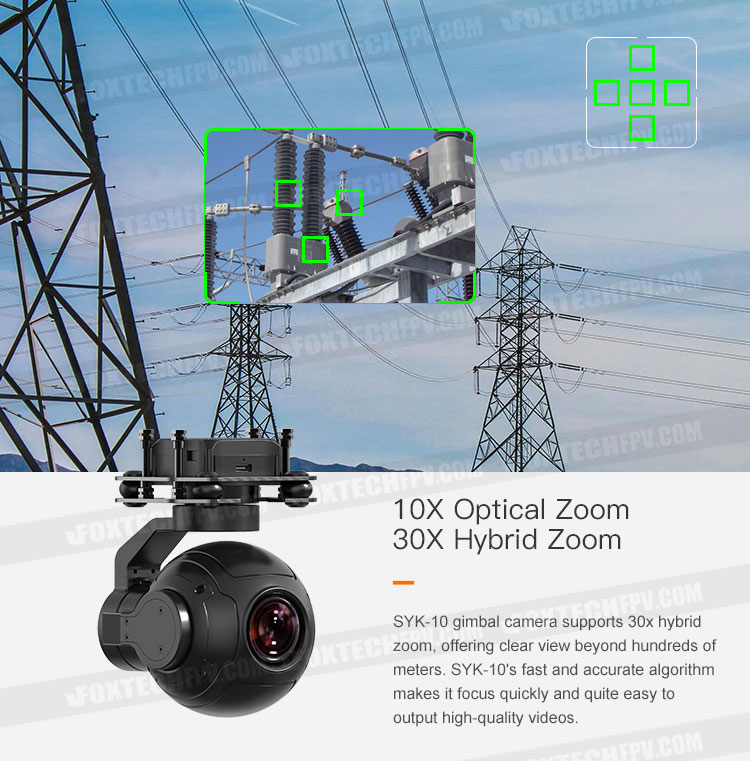

Lens: 10X Optical Zoom
(30X Hybrid Zoom)
Focal Length: 5.15+5% ~ 47.38+5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7-inch, 4 MP effective resolution
Aperture: F1.8~ 2.5
FOV: Diagonal: 79.5°, Horizontal: 71.5° .
TF Card Recording Resolution: 2K (2560 X 1440) @ 30 fps
Video Storage Bitrate: 12 Mbps
Supported File System: FAT32
Photography File Format: JPEG .
Video File Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported TF Card Type: MicroSD Class10, max 128 GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
Your Purchase Includes:
1x SYK-10 Gimbal Camera
1x SYK-10 Control Signal Cable
1x SYK-10 Power Cable
1x SYK-10 Video Cable
1x SYK-10 Video Cable
1x SYK-10 Ethernet to RJ45 Cable
1x MK15 Standard Version
