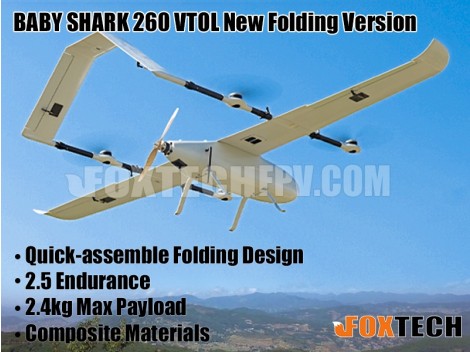

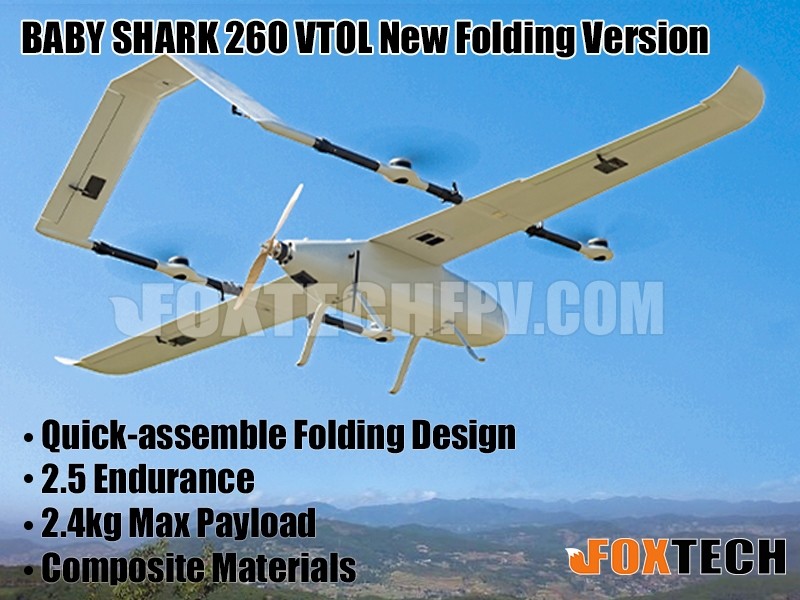

FOXTECH BABY SHARK 260 VTOL New Folding Version

SKU: S200516

Availability: In stock

Weight:1g

$8,479.00

Reward points Earn your 8479 reward points.

$8,479.00
Qty:





BABY SHARK 260 VTOL New Folding Version is compact and portable, easy to assemble and small enough to fit into the trunk of a car with the unfolded length and wingspan being 140cm*250cm, 100cm*90cm if folded. It adopts quick-assemble design that makes it easy to set up and transport.

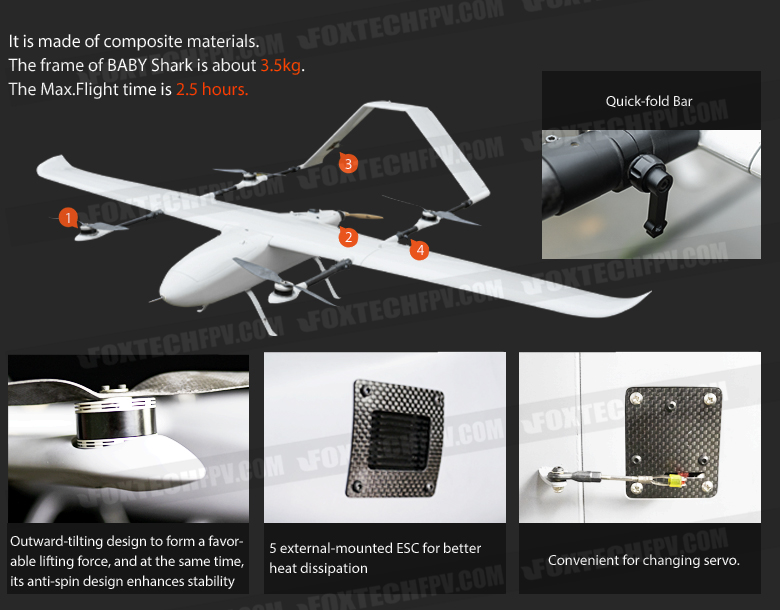

BABY SHARK features a highly advanced aerodynamic design. It is made of composite materials, which features high strength and light weight. The fuselage is big enough to hold a flight controller, batteries or other devices.

It can take off and land vertically with only small areas needed. The frame of BABY SHARK is only 3.5kg, and max take-off weight is 13kg, the stall speed of the BABY SHARK is 16m/s, the highest speed is about 110km/h

We suggest to use two 6S 5000mah lipo batteries for VTOL mode, and two Diamond 6S 22000mAh Semi-solid State Lipo batteries for fixedwing mode.

Besides the batteries, motors, ESCs, propellers and other necessary configured equipments, it still has 2.4kg payload capacity left for zoom or mapping cameras.

BABY SHARK can perform long range inspection, survey and mapping etc.

Specifications:

Version: BABY SHARK 260 VTOL Folding Version

Color: White

Material: Composites

Frame Weight: 3.5kg

Basic Empty Weight: 6.7kg (no battery)

Max. Take-off Weight: 0~1500m/13kg; 1500m~3000m/11kg

Endurance:

2.5h (2xDiamond 6S 22000mAh Battery+2x6S 5000mAh Lipo Battery, no payload)

Suggested Max Payload: 1kg(excluding battery); 6.3kg (including battery)

Max Cruising Speed: 110km/h

Suggested Cruising Speed: 21-22m/s

Stall Speed: 16m/s

Max Bank Rate: 30°

Suggested Take-off Altitude: 0~3000m

Take-off/Landing: VTOL

Fixedwing/VTOL Working Voltage: 48V/48V

Unfolded Wingspan/Folded Size: 2500mm/900mm

Unfolded Length/Folded Size: 1400mm/1000mm



Your Purchase Includes:

Pixhawk Cube Orange RTF(DA16S+):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
2x UBEC
1x Power Monitor Module

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x Carrying Case

1x Assembling, tuned and Flying Test Service



Pixhawk Cube Orange RTF(T12):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode

2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC

1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)

4x Servo

1x AEROFOX CAN Airspeed & Compass
1x ASSAN UBEC-8A

1x Hobbywing UBEC
1x Power Monitor Module

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x T12 12-Channel Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service



TAURUS-2 RTF(DL900 Datalink):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x UBEC

1x Taurus-2 Flight Control System for VTOL

1x DL900 Datalink
1x Carrying Case

1x Assembling, tuned and Flying Test Service



CUAV V5+ RTF(DA16S+):

1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode

1x (pair) Spare Propellers for VTOL Mode(for free)

1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor

1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x UBEC
1x Power Monitor Module

1x CUAV V5+ Flight Controller with CUAV NEO V3 Pro GNSS
1x DA16S+ Radio Controller
1x Carrying Case

1x Assembling, tuned and Flying Test Service



CUAV X7 Pro RTF(DA16S+):
1x Foxtech BABY SHARK 260 VTOL Folding Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
2x UBEC
1x Power Monitor Module
1x CUAV X7 Pro Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service



Optional:

2x Foxtech Diamond 6S 22000mAh Semi-solid State Lipo Battery

2x 6S 5000mAh Lipo Battery

Manual Download

Mission Planner Menu Items Setting Tips

Firmware Upgrade History
